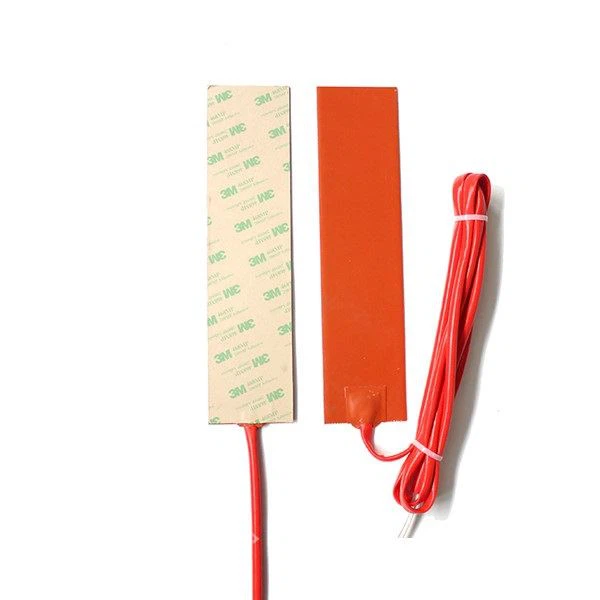

Silicone Rubber Strip Heater

The silicone rubber strip heater is orange-red flake (standard thickness is 1.5mm). It has good flexibility and can be in close contact with the heated object. Able to transfer heat to any place needed. Silicone heating element is very thin, lightweight and flexible, and has a heat transfer...
Chat Now

Product Details

The silicone rubber strip heater is orange-red flake (standard thickness is 1.5mm). It has good flexibility and can be in close contact with the heated object. Able to transfer heat to any place needed. Silicone heating element is very thin, lightweight and flexible, and has a heat transfer effect. With this heater, you can transfer heat to any place you need. During processing, you can improve heat transfer, accelerate heating and reduce power need. The materials are glass fiber and reinforced silicone rubber. The production of silicone rubber strip heater can be customized according to the specifications and product shapes of the products required by users.

  (3)

Features:

1. Design according to actual shape and size, including 3D geometry to fit your equipment.

2. Moisture-proof and chemical-proof silicone rubber material provides longer heater life.

3. Simply paste and mark on your parts through vulcanization, adhesives, or fastening parts.

4. Pipes that can be wound with a diameter of 35 or more must not overlap.

5. The heating part should be closely attached to the piping. At this time, please do not bend the lead wire (thick part).

6. When fixing the electric silicone rubber strip heater to the piping, please use aluminum adhesive tape with silicone adhesive and glass fiber tape.

7. Insulation layer can be added.

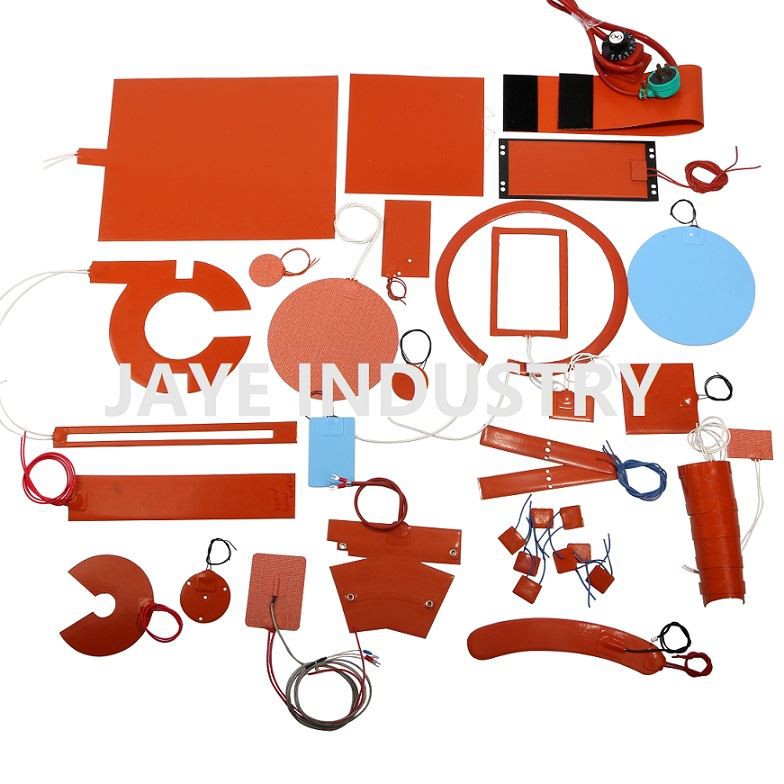

 24 - LOGO

Applications:

1. Freezing protection and anti-compression, for many types of instruments and equipment.

2. Medical equipment such as blood analyzer, test tube heater, widely used in massage chair cushions, etc.

3. Computer auxiliary equipment such as laser printers, etc.

4. Plastic film vulcanization.

 App

Capacity Density:

Silicone rubber strip heater usually use the range of 0.6~0.8W/CM2, which is the best, but it will vary depending on the installation and temperature adjustment of the heating tape.

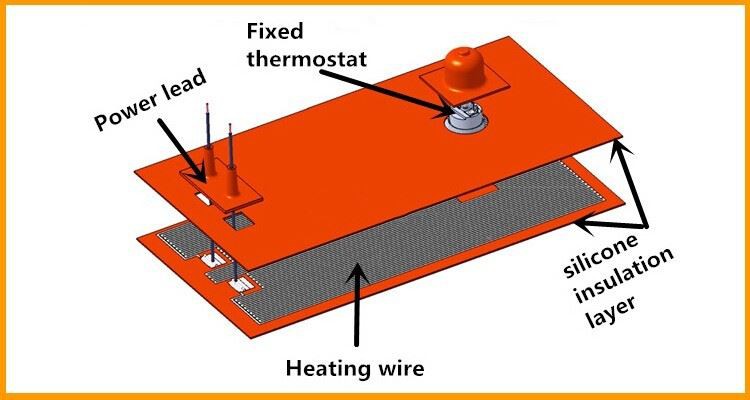

Structure of Silicone heater

Order To made:

Please specify us the below information at least if you have any requirements:

1-The size (the length and Width)

2-The Voltage and Watt

3-The lead wire length

4-Order quantity

5-Any special requirements,like holes or irregular shape or with other fittings, please also just let us know.


Application-Silicone Rubber Heater
