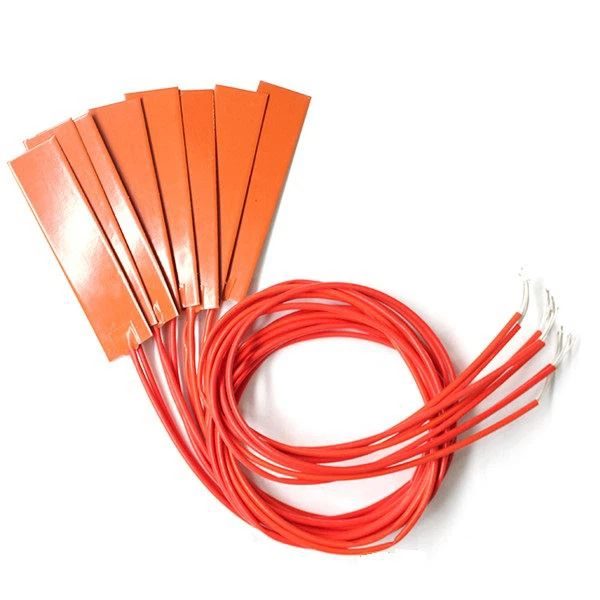

Resistance Wire Wound Silicone Heating Mat

Resistance Wire Wound Silicone Heating Mat

Silicone rubber heating plate is a very thin pure resistive heating plate, it is very soft and has 1.5MM thick. The size and shape can be customized arbitrarily, the structure space is small, and the voltage and power can also be designed according to the needs.
Chat Now

Product Details

Silicone rubber heating plate is a very thin pure resistive heating plate, it is very soft and has 1.5MM thick. The size and shape can be customized arbitrarily, the structure space is small, and the voltage and power can also be designed according to the needs.

1111

 24 - LOGO



Customized Silicone Rubber Heating Mat:

Size: 1050*220*1.5mm/1740*250*1.5mm/ size can be customized

Voltage: 110V/220V/380V/customizable

Power: 400W~3000W/customizable

Optional accessories: 3M double-sided tape, lead length, plug, thermocouple, thermistor, temperature protection switch, can be equipped with mechanical thermostat 50 ~ 200 ℃ temperature adjustable

Insulation material maximum temperature resistance: 200 degrees Celsius

Insulation resistance: ≥5MΩ

Power tolerance: ±8%

Withstand voltage: >5KV

Heating element: available resistance wire wound technology process, and the etched foil process can also be done based on customer own requirements.

 HTB1CddEMFXXXXbHXFXXq6xXFXXXI

silicon rubber hotplate drawing

Heating Plate Performance:

1. Has excellent physical strength and soft performance, exerts external forceon the electric heating mat, which can make excellent close contacting between the electric heating element and the heated object.

2. It can be produced various shapes or appearance, a variety of installation methods, with optional adhesive and holing installation.

3. Light weight, it can be designed required thickness in a wide range (small thickness is only 1.0mm), small heat capacity, fast heating rate and high temperature control accuracy.

4. Has good corrosion resistance and aging resistance. As the surface insulating material of the electric heating mat, it can effectively prevent the productsurface from cracking and enhance the mechanical strength, which greatly extends the service life of the product.

Production Instruction of silicone heater



Usage Notice:

1. This silicone heating mat is composed of metal resistors, which cannot be cut after finished production.

2. In a dry environment, although static electricity occurs, there is no problem in normal use.

3. Do not use the thermostat and the heating sheet separately.


Application-Silicone Rubber Heater
