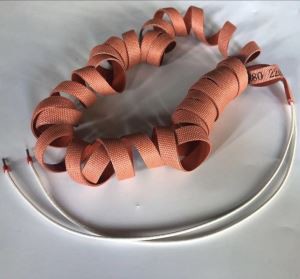

Spiral Silicone Heating Tapes For Pipeline

Spiral Silicone Heating Tapes For Pipeline

​The silicone heating tape is a soft and flexible sheet-shaped electric heating element. There is a poise-shaped or wire-shaped metal resistance wire distributed uniformly between glass fiber cloth that coated with high temperature resistant silicone rubber. It has rapid heating and rapid temperature rise, large heating surface, uniform heating, weather resistance, corrosion resistance, environmental protection, flame retardancy, easy installation, long life, high insulation strength, etc properties.
Chat Now

Product Details

The silicone heating tape is a soft and flexible sheet-shaped electric heating element. There is a poise-shaped or wire-shaped metal resistance wire distributed uniformly between glass fiber cloth that coated with high temperature resistant silicone rubber. It has rapid heating and rapid temp. rise, large heating surface, uniform heating, weather resistance, preservative, environmental protection, flame retardancy, easy installation, long life, high insulation strength, etc properties.

 QQ图片20180830160400 - 副本

Silicone rubber heating tape is thin with 0.8~1.5MM thickness, light weight, generally, 1.3~1.9 kg per square. It is basically not limited by size, it can be designed according to the needs of the use of voltage in various shapes of heating elements and be used in various fields.


Common Spiral Silicone Heating Tapes Size:

1. 25*1000mm, 220V, 100W

2. 25*1500mm, 220V, 150W

3. 25*2000mm, 220V, 200W

4. 25*3000mm, 220V, 300W

5. 25*4000mm, 220V, 400W

6. 25*5000mm, 220V, 500W

We offer customized silicone heating tapes, please specify the complete information on the heater design.

 silicon rubber hotplate drawing

Points to Note:

1. The heating tapes are able to wind pipelines with a diameter of more than 35, but can not be wound more than 2 layers to prevent overheating damage.

2. The heating tape should be closely attached to the pipeline, and the lead part (thick part) should not be bent.

3. Please use silicone adhesive aluminum adhesive tape and fiberglass tape.

4. To reduce heat loss,insulation layer can be designed to the outside of the heating tape.


Packing & Delivery
