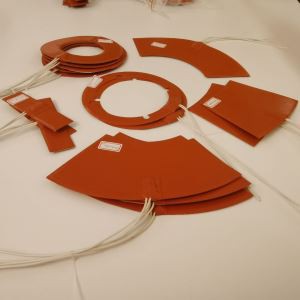

Silicone Rubber Heating Element For Blood Analyzer

Silicone Rubber Heating Element For Blood Analyzer

​Silicone heating pad is composed of two glass fiber cloths and two pieces of silicone rubber glass fiber cloths. The safety of the silicone heating sheet is that the general flat heating element uses carbon as the main component, and the silicone heater is composed of aligned nickel alloy resistance wires, so it is high safety.
Chat Now

Product Details

Silicone heating pad is composed of two glass fiber cloths and two pieces of silicone rubber glass fiber cloths. The safety of the silicone heating sheet is that the general flat heating element uses carbon as the main component, and the silicone heater is composed of aligned nickel alloy resistance wires, so it is high safety.

Production Instruction of silicone heater



Technical Parameters:

Insulation Material: silicone rubber

Electric Film Thickness: 0.8mm~3mm

Maximum Operating Temperature: long time 180℃(short time 250℃)

Minimum Temperature: -60℃

Maximum Power Density: 1w/cm2

 24 - LOGO

Product Advantages:

1. Light weight and flexibility, good waterproof performance and fast heat generation

2. Uniform temperature, high thermal efficiency, good toughness, in line with American UL94-V0 level flame resistance standards

3. Stable quality, moisture and chemical resistance

4. Temperature range: -62~250℃ (-143.6~482℃)

5. The power load can be provided up to 3.1W/c㎡

6. High safety, long life, not easy to aging

7. Optional self-adhesive installation, easy to use

8. Voltage: 6V ~ 400V (or according to customer requirements)

9. Can design and customize product shape and power according to customer needs

 silicon rubber hotplate drawing

Precautions:

If pay no attention on the following safety guidelines, it may result in fire, electric shock and/or damage to the thermal pad.

1. Do not immerse the thermal pad in the water or other liquids.

2. Do not heat the pad at any other heating or heat preservation devices.

3. Don't put something rough or sharp on surface of pad, because it will be damaged.








Application-Silicone Rubber Heater
