Flexible Silicone Loop Heating Belt With Fastener Clips
Product Details
Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of flexible silicone loop heating belt with fastener clips in China, also supports custom service. Welcome to wholesale high quality flexible silicone loop heating belt with fastener clips at competitive price from our factory.
Products Description

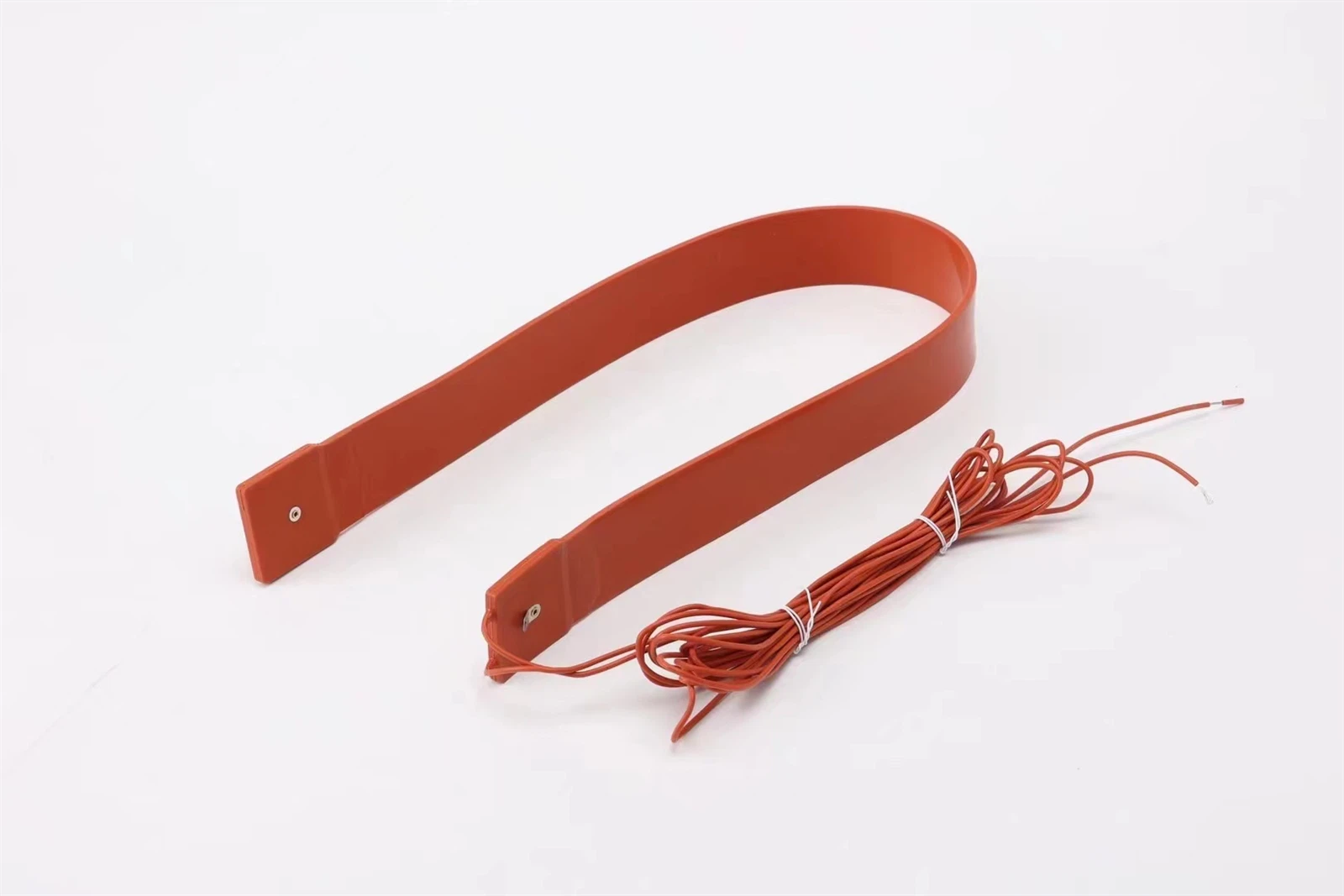

Flexible Silicone Loop Heating Belt with Fastener Clips is a wrap-around thermal solution. Its pliable silicone body conforms to round surfaces, while snap-in fastener clips enable tool-free, stable installation-solving the poor fit issue of rigid heating components.
With a wide temperature range and durable build, it delivers uniform warmth for small-to-medium circular devices (from heating plates to lab flasks), blending flexibility and practicality for niche heating scenarios.
Products Specification
| Product Name | Flexible Silicone Loop Heating Belt with Fastener Clips |
| Operating Temp Scope | -40℃ to 180℃ (continuous operation) |
| Peak Short-Term Temp | 200℃ (max 30-minute duration) |
| Custom Loop Diameter | 100mm–500mm (matched to target device size) |
| Silicone Body | 1.2–2.5mm thick (industrial-grade; oil/aging-resistant) |
| Heating Core | Nickel-chromium alloy element (uniform heat dispersion) |
| Fastener Clips | Snap-in stainless steel (reusable; 5kg holding force) |
| Wire Length | Customizable (0.5m–3m; insulated copper core) |
| Control Options | Dial-type manual / Digital precision thermostat |
| Plug Variants | US / UK / Euro standard |
| Optional Accessories | Surface-mounted thermal fuse, NTC thermistor, PT100 sensor |
Loop diameter & power matching table
Below is the diameter-to-power matching table for the **Flexible Silicone Loop Heating Belt (based on 30mm width and industry-standard power density)**.
Data is calculated using the common "power density (W/cm length)" for silicone heating belts (actual power can be fine-tuned as needed):
| Loop Diameter Range (mm) | Corresponding Circumference (cm) | Standard Band Width (mm) | Power (1W/cm Density) | Power (1.5W/cm Density) | Typical Application |
|---|---|---|---|---|---|
| 100–200 | 31.4–62.8 | 30 | 31–63W | 47–94W | Small lab flasks |
| 200–300 | 62.8–94.2 | 30 | 63–94W | 94–141W | Circular small heating plates |
| 300–400 | 94.2–125.6 | 30 | 94–126W | 141–188W | Small cylindrical tanks |
| 400–500 | 125.6–157.0 | 30 | 126–157W | 188–236W | Medium-diameter |
Note:
- The power density (1W/cm/1.5W/cm) is a common value in the silicone heating tape industry, corresponding to the scenarios of "heat preservation / low-power heating" and "rapid temperature rise / medium-power heating";
- If the bandwidth is adjusted (e.g., 20mm/40mm), the power should be increased or decreased proportionally according to the "bandwidth ratio" (for example: when the bandwidth is 20mm, the power is 2/3 of the value in the table).
Products Advantages
Trend-Aligned Circumferential Fit: Adapts to 100–500mm diameter round surfaces (matches 2025's demand for custom cylindrical device heating)
Tool-Free Quick Installation: Snap-in clips enable 30-second mounting (no extra hardware, fitting modern quick-assembly needs)
Wide Temp Adaptability: -40℃ to 180℃ covers cold-environment freeze protection and medium-heat processing
Uniform Heating: ≤2.5℃ temp deviation (avoids hotspots on circular surfaces)
Durable Reusability: Oil/aging-resistant silicone + stainless steel clips support ≥8,000 cycles (cuts long-term replacement costs)
Products Ordering Guide
To secure a matched unit, provide:
Silicone Heater Size: Target device's circular diameter (for custom belt fitting)
Electrical Needs: Voltage (12V/24V/220V) + power demand (based on heating area)
Wire & Installation: Preferred wire length (0.5m–3m) + clip compatibility confirmation
Control & Plug: Dial/digital controller type + US/UK/Euro plug
Quantity: Single sample (fit testing) or bulk (≥12 for volume pricing)
Photos/drawings
