Silicone Drum Heater For Filling
Product Details
Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of silicone drum heater for filling in China, also supports custom service. Welcome to wholesale high quality silicone drum heater for filling at competitive price from our factory.

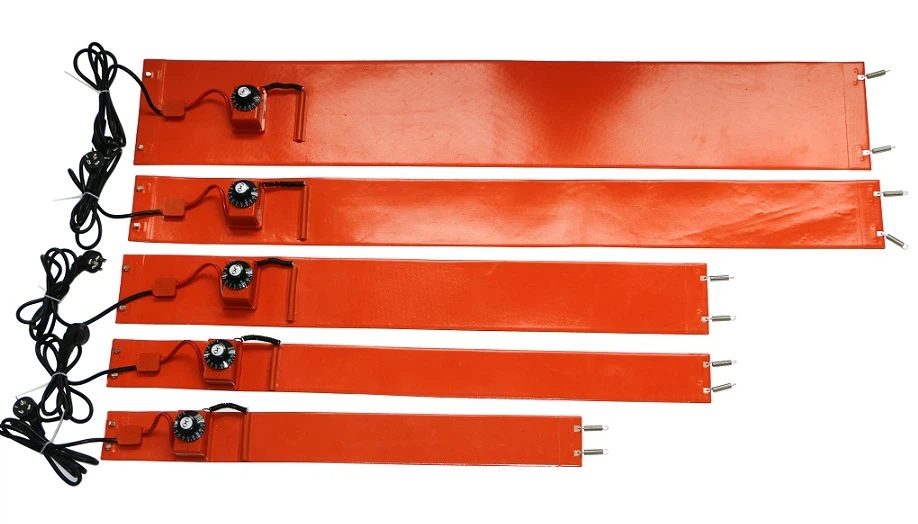

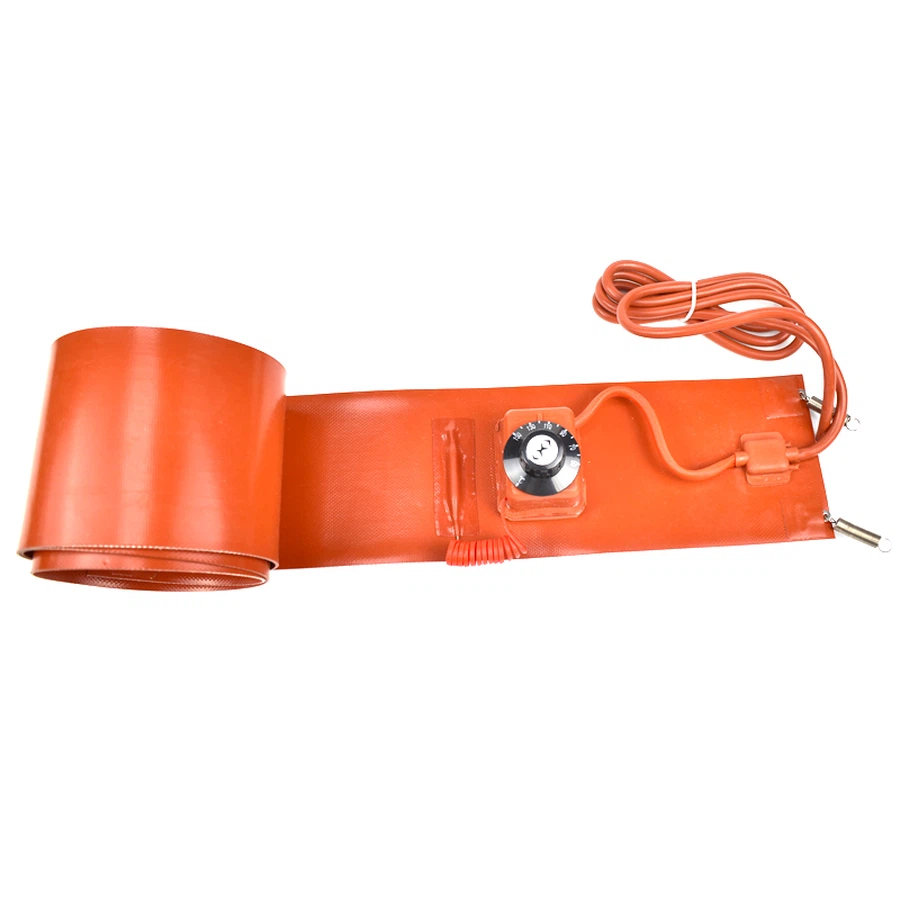

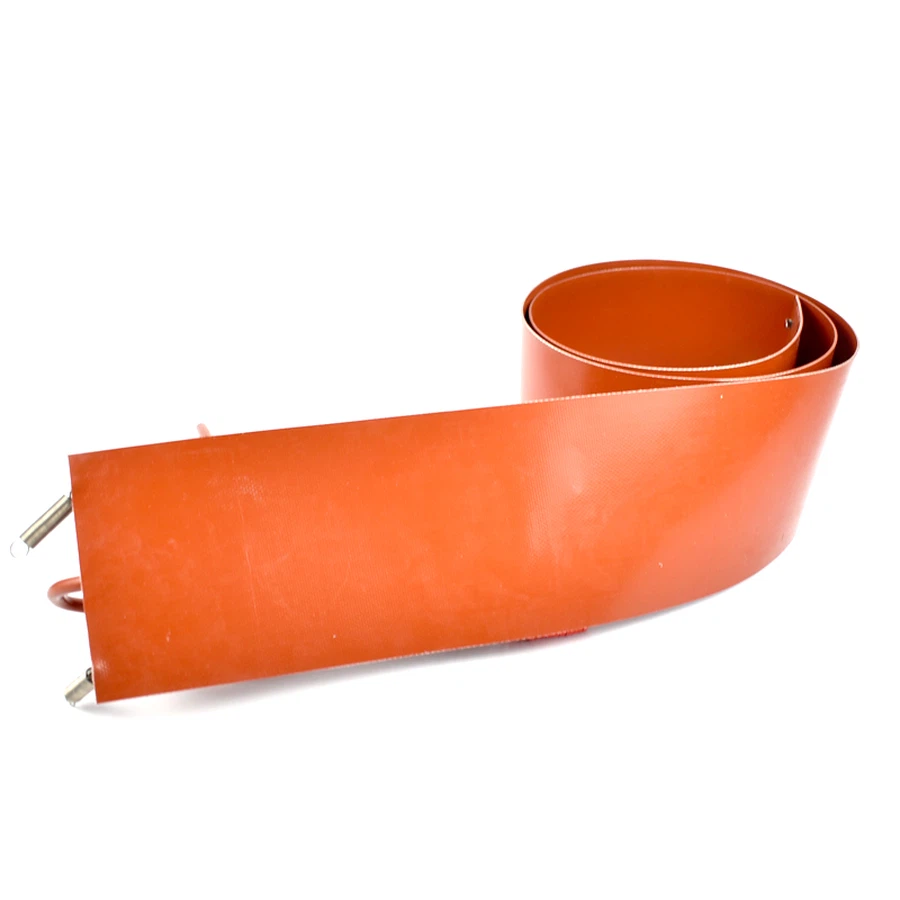

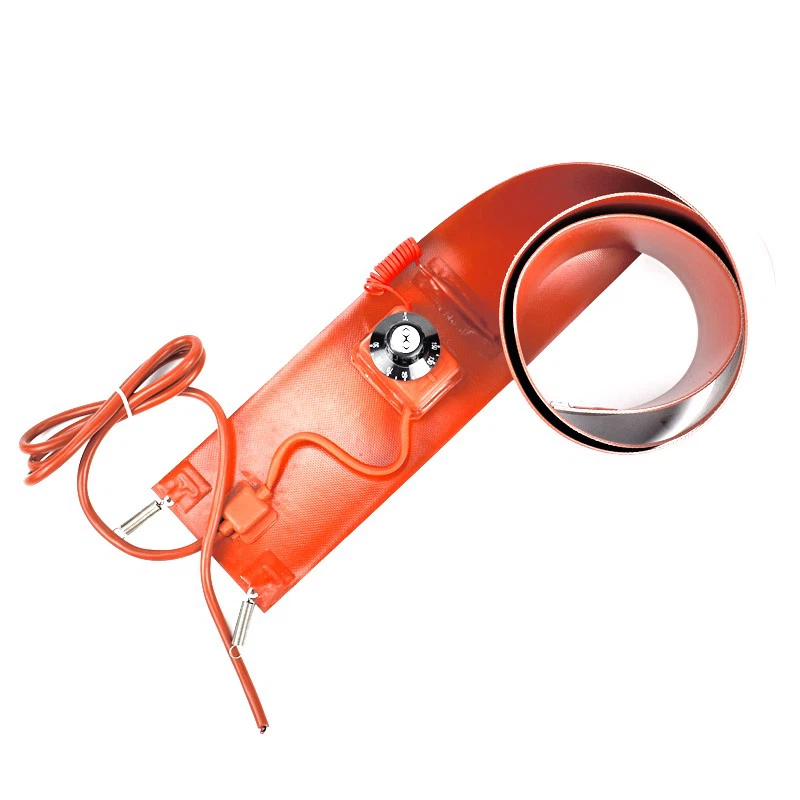

Silicone Drum Heater for Filling
At Jaye Heater, we specialize in manufacturing high-quality industrial heating solutions with excellent performance and competitive pricing. Our Silicone Drum Heater for Filling is widely used in chemical processing, food and beverage production, pharmaceutical manufacturing, lubricant and oil handling, adhesive dispensing, and cosmetic material processing. Designed to wrap around standard 5-gallon pails, 55-gallon drums, and IBC totes, this heater ensures that viscous materials flow smoothly during filling operations. Whether you need to reduce viscosity, prevent crystallization, or maintain consistent temperature for accurate filling, Jaye Heater's silicone drum heater is the trusted choice for factories and filling stations worldwide.
Specifications
| Parameter | Details |
|---|---|
| Heater Type | Flexible silicone rubber drum heater |
| Heating Element | Wire-wound |
| Sheath / Cover Material | Silicone rubber (fiberglass-reinforced optional) |
| Drum Sizes | 5-gallon pail, 55-gallon drum, 30-gallon drum, IBC tote (custom) |
| Thickness | 1.5mm – 1.8 mm |
| Voltage | 110V, 120V, 220V, 230V, 240V, 380V (customizable) |
| Power Rating | 200W – 3,000W (customizable by drum size) |
| Watt Density | Low – medium (0.15 – 0.5 W/cm²) |
| Max Operating Temperature | 150°C (302°F) continuous; 200°C peak |
| Fastening Method | Stainless steel tension straps with buckle or spring clips |
| Insulation Layer | Optional external fiberglass or silicone foam insulation cover |
| Sensor Option | Built-in thermocouple (Type J/K) or thermostat (adjustable or fixed) |
Key Features & Advantages
| Feature | Advantage |
|---|---|
| Flexible Silicone Design | Wraps tightly around any drum or pail – conforms to ribs and curved surfaces |
| Even Heat Distribution | Eliminates hot spots – prevents material degradation or burning |
| Quick Installation | Attaches with stainless steel straps – no tools required for most models |
| Adjustable Temperature Control | Optional built-in thermostat or external PID controller – set exact temperature needed |
| Low Watt Density | Gentle heating – ideal for viscous materials, oils, and heat-sensitive chemicals |
| Durable & Chemical Resistant | Silicone rubber resists oils, solvents, and mild chemicals – long service life |
| Energy Efficient | Direct drum contact heating with optional insulation cover reduces heat loss |
| Safe Operation | Optional thermal fuse for over-temperature protection |
Applications
| Industry / Application | Why Use Jaye's Silicone Drum Heater for Filling |
|---|---|
| Adhesive & Glue Dispensing (Hot melts / Epoxies / Sealants) | Reduces viscosity to allow smooth pumping and precise shot sizes; prevents clogged nozzles |
| Honey & Syrup Processing (Food industry) | Gentle, even heating preserves flavor and color while improving flow for bottling |
| Oil & Lubricant Transfer (Motor oil / Hydraulic oil / Gear oil) | Preheats oil in cold environments to achieve target viscosity for faster filling and accurate volume |
Our Products
FAQ
Q1: Can the silicone drum heater be customized?
Yes, Jaye Heater offers full customization: drum size (5-gallon, 30-gallon, 55-gallon, IBC, or custom dimensions), voltage, wattage, lead wire length, sensor type (thermocouple, RTD, or thermostat), and optional insulation covers. We can also add a thermal fuse for safety or a digital display controller.
Q2: What is the maximum temperature of this drum heater?
Our standard silicone drum heater operates continuously at 150°C (302°F) with a peak of 200°C (392°F). For higher temperature requirements (up to 250°C), we offer our high-temperature silicone drum heater series. Most filling applications operate well below 150°C.
Q3: How do I install the silicone drum heater?
Simply wrap the heater around the drum, fasten the stainless steel tension straps, and tighten the buckle. Plug into a temperature controller and power source. Installation takes less than 2 minutes for most standard drums.
