DC Silicone Heater
Product Details
Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of dc silicone heater in China, also supports custom service. Welcome to wholesale high quality dc silicone heater at competitive price from our factory.

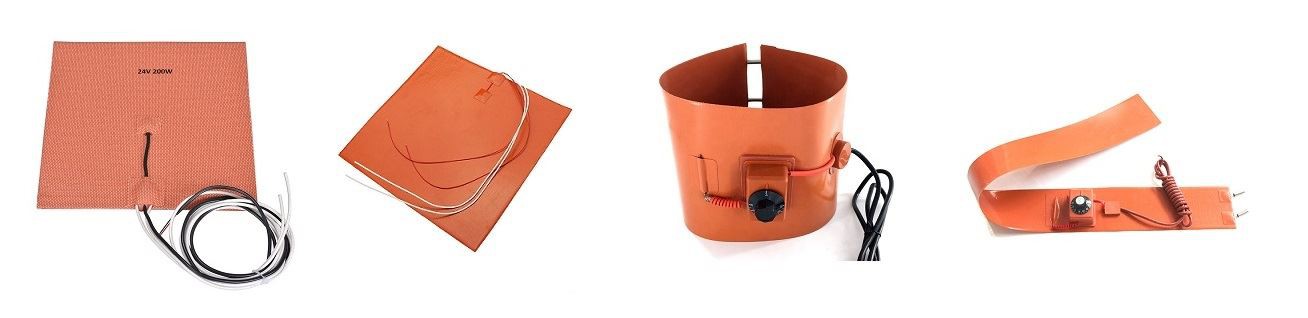

Silicone heating sheet is a soft and flexible sheet-like electric heating device, which is formed by uniformly distributing poised and filamentary metal heating elements in glass fiber cloth coated with high temperature resistant silicone rubber, and molding at high temperature. Its body is thin, usually 0.8~1.5MM thick, and the silicone heating sheet is light in weight, generally, 1.3~1.9 kg per square. It heats up quickly when electrified, and the temperature rises quickly. It has a large heating surface, uniform heating, weather resistance, corrosion resistance, environmental protection, resistance. It has the characteristics of easy combustion, easy installation, long life and high dielectric strength. It is used in many electric heating devices.

specification:
1.Product thickness-----0.8-2.0 mm
2.Applicable power supply-----0-380VDC, VAC
3.Specific gravity-----1.6 g/cm3
4.Power density-----2W/cm2
5.Color ----- orange red, grass green, black
6.Dielectric strength> 500 megohms
7.Heat capacity ------ 1.0J/g.k
8.Continuous use temperature <240℃
9.Hardness ----- 60±5 shore
10.Adhesive installation temperature <150℃
11.Tensile strength > 180kg/cm2
12.Voltage resistance > 2100VDC/min
13.Flame Retardant-----Comply with UL94 V0
14.Paste Strength>50N/100mm

welcome to inquiry us
