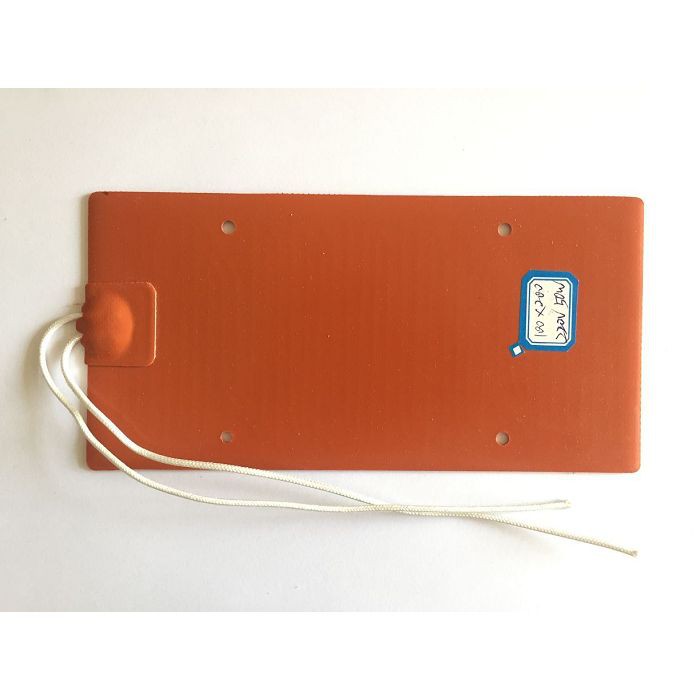

Silicone Heating Pad For 3D Printer

The Silicone heating pad for 3D Printer made by Jaye industry is mainly composed of Nichrome alloy heating wire and glass fiber reinforced silicone rubber insulating cloth.
Chat Now

Product Details

The Silicone heating pad for 3D Printer made by Jaye industry is mainly composed of Nichrome alloy heating wire and glass fiber reinforced silicone rubber insulating cloth. All the silicone heating pad made by Jaye industry has the characteristics of fast heating, uniform temperature, high thermal efficiency, high strength, convenient use, long safety life, aging resistance, can bend and deform the surface of the object, and can transmit the heat evenly to every contact part with the heated object.

image001(001)


Technical parameters of the silicone heating pad::

Temperature range - 60°C——250°C long-term heating,

Has two kinds of heating material core: high resistance wire and metal etching foil.

1) Maximum temperature resistance of insulating material: 300°C

2) Maximum working temperature: 250°C

3) Insulation resistance: 200 m Ω / DC 1000V

4) Compressive strength: ac1500v / 5S

5) Power deviation: ± 5

6) Max. Width: 1.2m, no maximum length.

Regular thickness 1.5mm (min. 0.8mm, max. 4.5mm)

lead length: Standard 130mm, exceeding the above dimensions can be specially customized.

7) The back is added with back glue or pressure-sensitive adhesive or double-sided adhesive, which can make the silicone heating sheet firmly stick to the surface of the added object. Easy to install.

Note: it can be customized according to the voltage, power, specification, size and product shape required by users (such as: oval, cone, etc.).


Installation method: due to different shapes, this product is installed and used by pressing, double-sided adhesive, hole drilling and positioning, room temperature vulcanization and other methods according to the actual site selection. The service lifetime can be reached up to more than five years.


 Application-Silicone Rubber Heater

Hot Tags: silicone heating pad for 3d printer, China, manufacturers, suppliers, factory, customized, electric, high quality
