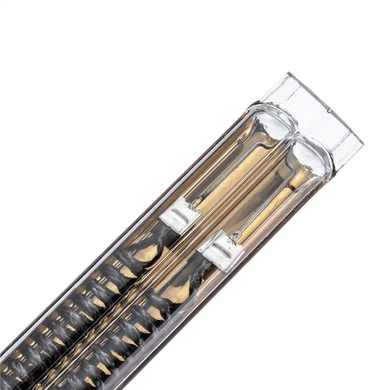

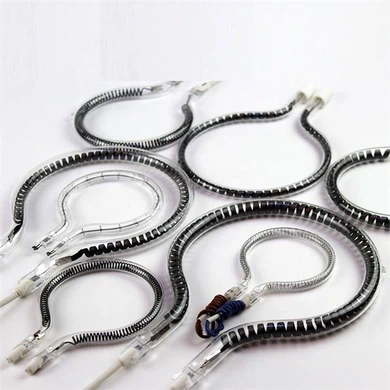

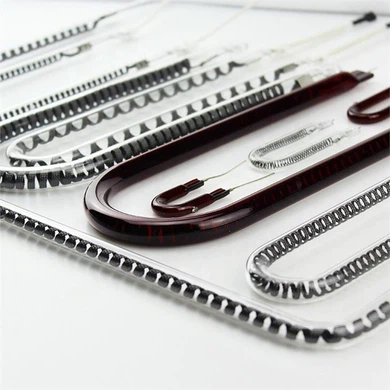

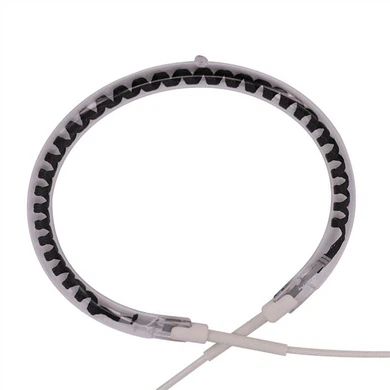

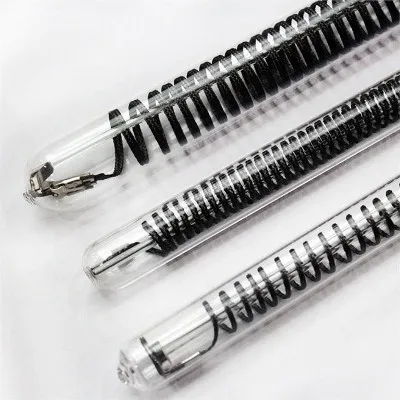

Quartz Tube Heating Element
Product Details
Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of quartz tube heating element in China, also supports custom service. Welcome to wholesale high quality quartz tube heating element at competitive price from our factory.
Jaye's quartz tube heating element uses the raw material of imported carbon fiber heating body, which has the advantages of large power margin, high temperature resistance, high heat capacity, long service life, and the power can be adjusted at will. It meets the general safety requirements of many household appliances.
Quartz tube heating element product performance characteristics
Stable electrical performance
After the quartz tube heating element is energized, the power is stable within a certain tolerance range during frequent start-up, shutdown and long-term continuous work, without any instantaneous power shock.
High thermal efficiency, carbon fiber heating body is pure black body material, in the electrothermal conversion process, little visible light, electrothermal conversion efficiency of more than 95%, than nickel, chromium, tungsten, molybdenum and other materials as the heating body of the heater, can save 30%; in the same power, than the nickel-chromium metal heaters radiation temperature 30 ℃ higher than the tungsten-molybdenum wire quartz heaters 15 ℃ higher. The infrared rays emitted are directly absorbed by human body, clothes, water, etc., and the heat loss in the heat transfer process is small; the absorption of carbohydrates is stronger, with good carbon atomic resonance effect, and the product efficiency is greatly improved.
Quartz tube heating element body has the characteristics of rapid temperature rise, small thermal lag, uniform heat generation, heat radiation transmission distance, fast heat exchange, etc.
Quartz tube heating element technical characteristics.
1. No far-infrared coating, spectral radiation matching absorption characteristics, long-term use of radiation performance does not degenerate, high efficiency of electrical and thermal conversion. Energy-saving than the general heating element about 30%.
2. High working temperature, wide selection range. Among them with ceramic cap package type, the highest temperature resistance up to 800 ℃.
3. Fast temperature rise, small thermal inertia, high temperature resistance, corrosion resistance, good stability of thermochemical properties, long service life, high insulation strength.
4. No pollution, a clean type heater, in line with the requirements of modern production of high pace and high quality, suitable for high sanitation requirements on household appliances.
5. Design, manufacture and installation are very convenient, economic and safe.
Notes on installation and use.
Horizontal installation tilt is not more than 30 degrees.
Use with aluminum reflector or stainless steel reflector, flat or parabolic reflector. But the best parabolic reflector: improve the high utilization of radiation, the factory can be processed on behalf of.
Should avoid violent vibration and shaking.
The distance between the heating element and the heated object is best controlled as 150 a 450 mm is appropriate, depending on the specific condition of the drying object.
Quartz heating element is a brittle material, installation and use should pay attention to safety, use according to the specific conditions of the heated object, take the necessary protective measures to avoid mechanical damage.
FAQ
(1).Q: Will you accept customized requirement?
A: Of course, customized service is surely acceptable. Welcome to send us your drawing and more detailed specification parameters. We can supply you the products as per your specific requirements.
(2).Q: How can I get a sample?
A: Normally For most our products can be sent free of sample charge if the quantity is small and customers only need to bear the shipping charge, or you can provide your DHL,FEDEX,EMS,UPS courier account number to us. If the quantity is big, we will charge a sample fee.
(3). Q: Why does your price a bit higher than other Chinese suppliers?
A: To meet the requirement of different customers and areas, our factory manufactures various kinds of quality for each item at a wide range of price. We can offer the products of different quality levels depending on customer's target price and quality requirement.
(4). Q: How can you guarantee the quality of mass production keep the same with the sample sent to me before?
A: Our warehouse staff will leave another same sample with your company name marked in our company before sending the samples to you to ensure the same production as the samples.
