Quartz Heater Tube
Product Details

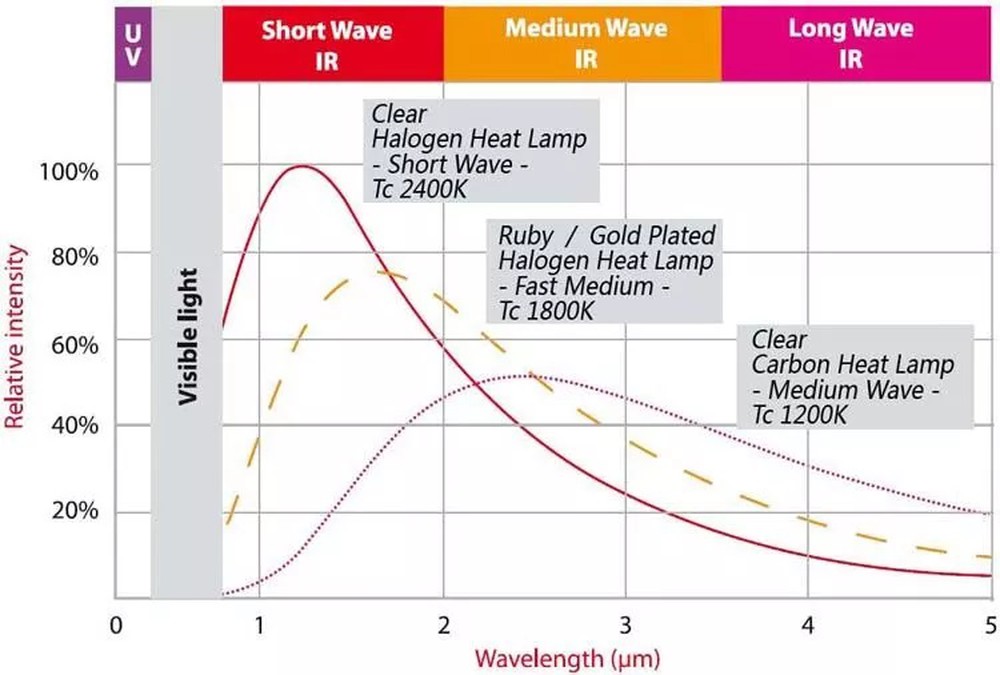

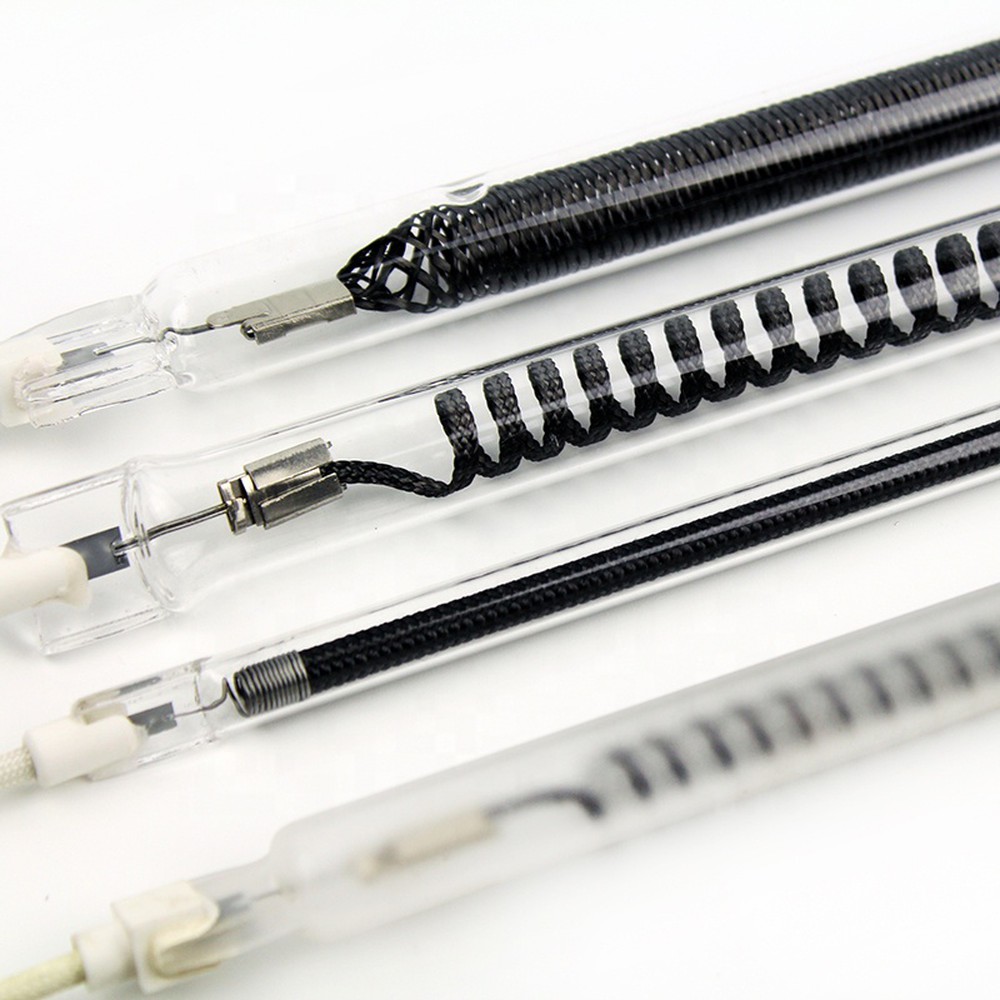

Quartz heater tube is used iron chrome alloy wire(FeCrAl wire) as a heating unit and uses quartz tube as protection sleeve. It has a wavelength range of 2.2-3.5 microns and a color temperature of 1800K. The main radiation band is best suited for drying water and is widely used in industry drying, among other applications, due to its location in the medium wave region. Power, voltage, and lamp length can all be made to the customer's specifications and drawing. There are two ways to install it: both horizontal and vertical operation We can use coated white processing or half-golden plating to increase radiation efficiency.
Specifications
| Tube Diameter(mm) | 10-18mm |
| Tube Thickness(mm) | 1.3-2mm |
| Max Power(w/cm) | 100-150 |
| Connection Type | lead wire at two sides/two or one side conenction |

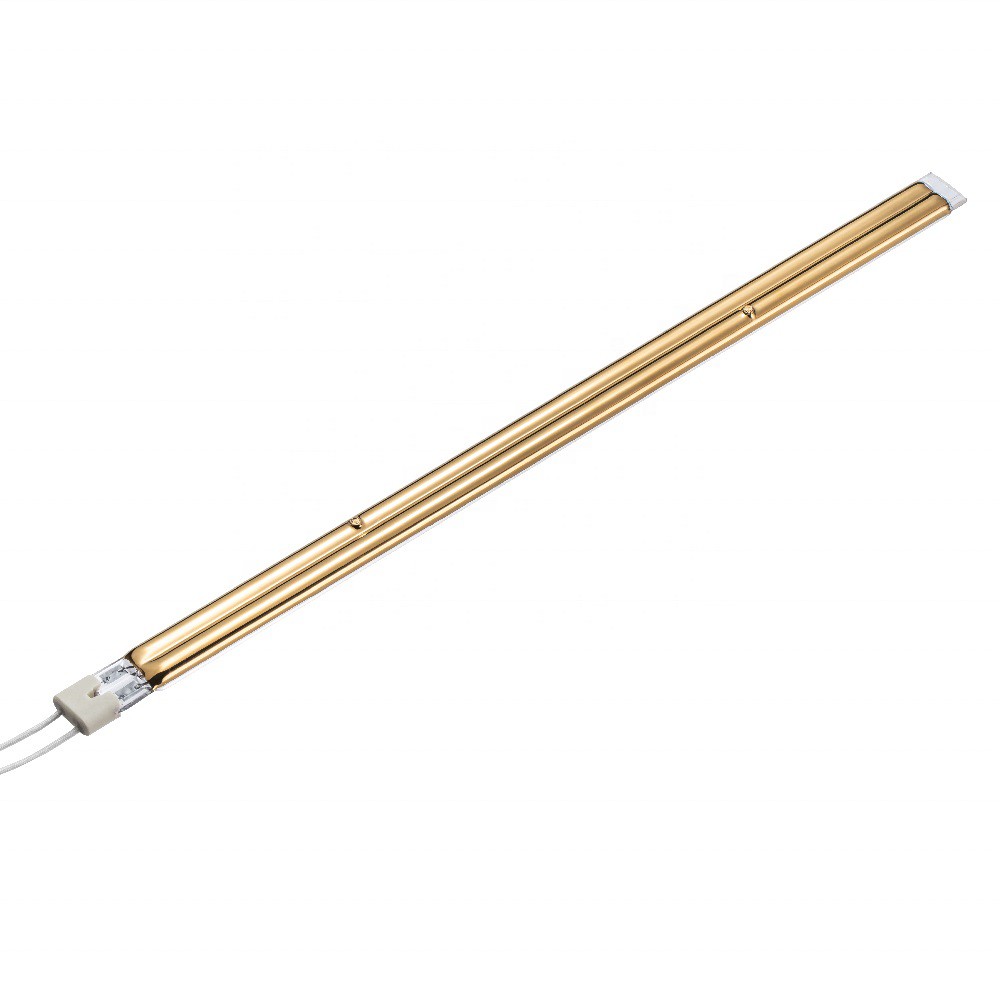

| Tube Coating | transparent, gold coating, white coating |
| Voltage | 80-750v |
| Cable Type | 1.silicone rubber cable 2.teflon lead wire 3.naked nickel wire |
| Installing Position | Horizontal / vertical |
Features
1.Versatility of heat source: Wide range of lamps lengths and power available.
2. Instant heat: More than 90% emission within 1 second.
3. Clean: no pollution.
4. Safe: Quartz envelope, heat shock resistant.
5. Economical: More than 85% of consumed energy transmitted into infrared heat.
6.Fully dimmable: Fully controllable accurately(0% to 100%).
7.Possibility to put people sensor: On/Off switches do not affect life time of the lamps .
8.Long life: More than 5000 hours.
9.Heat can be focused: Same optical properties as light, can be dire-cted by reflectors.
10.Compact heater: Compact heat sources, narrow diameter of lamps.
When you inquiry, pls specify the following details
1. Diameter, total length, voltage, power, working temperature
2. Termination zone, how you want the heater to be connected with the electricity (screws, cable, cap etc. )
3. Surface quartz tubecolor
4. Connection
5. It is preferred to offer a drawing with all parameter
