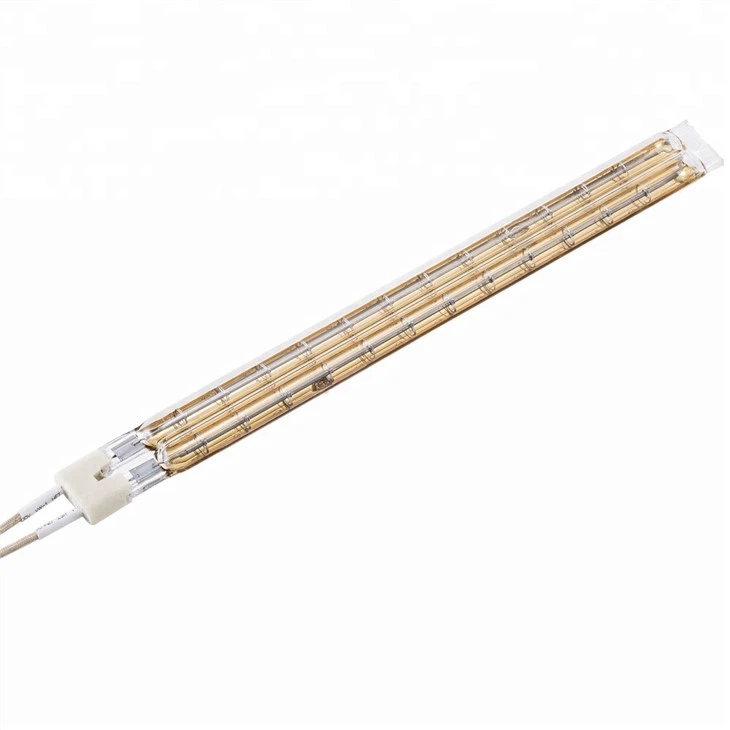

Shortwave Gold-plated Infrared Quartz Heater

The Shortwave Gold-plated Infrared Quartz Heater made by Jaye use the imported gold water and a semi-gold coating with a special process can reflect more than 90% of the infrared heat in the same direction without using a reflector, reducing energy loss. Higher thermal efficiency, more energy...
Chat Now

Product Details

The Shortwave Gold-plated Infrared Quartz Heater made by Jaye use the imported gold water and a semi-gold coating with a special process can reflect more than 90% of the infrared heat in the same direction without using a reflector, reducing energy loss. Higher thermal efficiency, more energy saving.

The coating is firm, does not fall off, and the reflectivity is higher than that of the semi-white coating.

Fast start-up, 100% power output can be reached within 2 seconds, and the temperature drops quickly.

Easy and precise control, 0-100% power adjustment can be carried out according to needs

Long life, up to 5000 hours.

Easy installation, lower maintenance and use cost.

Safe, pollution-free, green.

Product size, power, wiring method, etc. can be customized according to customer needs!

Application areas:

PET bottle blowing and laminating; plastic shaping and softening; paint, powder, glue drying; paper baking; screen printing, printing machinery; food heating and heat preservation; circuit board, semiconductor production, etc.

 Short Wave

Technical information of Shortwave Gold-plated Infrared Quartz Heater:

Power:300-10000W

Voltage:55-575V

Diameter:   8*18/11*23/15*33

Heated   length:50-2800mm

Filament   Temperature:1800-2200 ℃

Peak   wavelength:1.2-1.4μm

Reflector: Gold/White/Clear

Response   time:1s

Filament   type: Tungsten/Carbon

Different dimension and specifications can be custom made by Jaye industry. For any specific detail requirements, please just contact Jaye industry. We have 5 production lines with daily output 100,000pcs quartz heating tube also some other infrared heating elements. Yearly capacity more than 30 millions pcs.
