PTC Water Heater

Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of ptc water heater in China, also supports custom service. Welcome to wholesale high quality ptc water heater at competitive price from our factory.

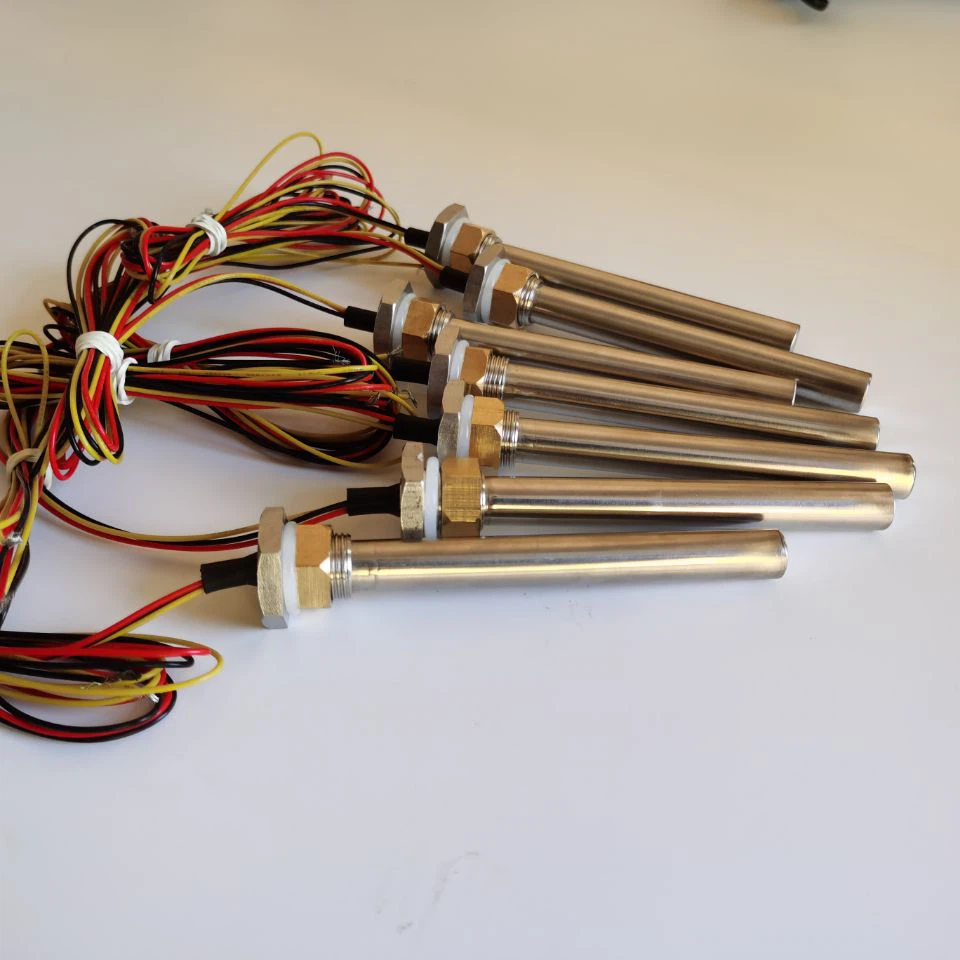

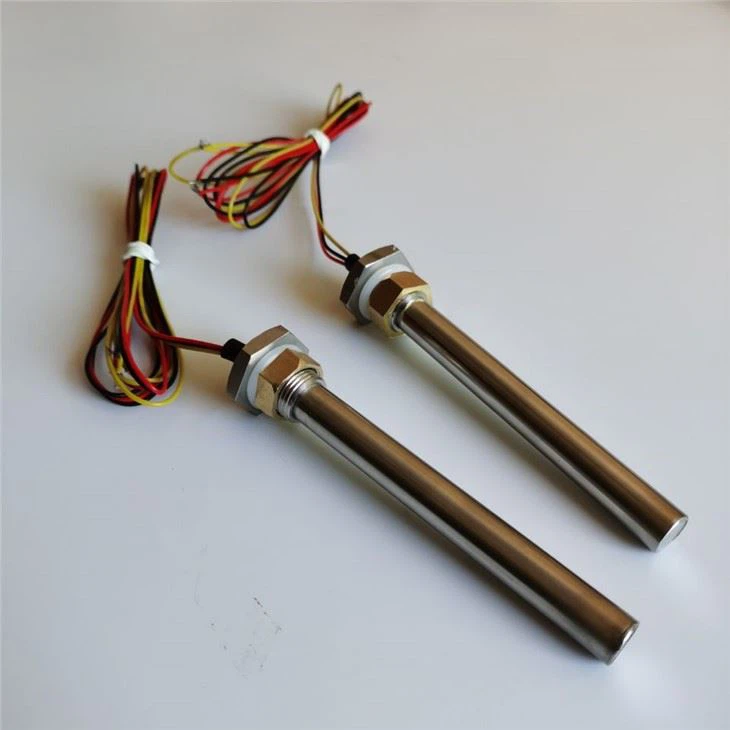

PTC water heater is a water heater with PTC thermistor element as the heat source. The PTC water heater manufactured by Jaye is a cylindrical electric heating element. The stainless steel sheath is used for protection, in order to protect the heater and achieve the purpose of automatic temperature adjustment, and the PTC thermistor element has the characteristic that the resistance value increases or decreases with the change of the ambient temperature, so the PTC heater has the advantages of energy saving, constant temperature, safety, long life characteristics of life. PTC heaters are very good elements for water heating. JAYE can use stainless steel sheath of different materials, such as stainless steel 304 or 316, or Incoloy 840, according to the quality of the water that can be used. To prevent the pipe from being corroded.

Material option for PTC Water Heater:

1) The aluminum casing or pipe has poor corrosion resistance. Nickel plating or anti-corrosion coatings provide better protection against corrosion.

2) Brass or copper casing or pipe with good corrosion resistance. But the cost is higher.

3) Ceramic shell, good corrosion resistance. But its heating power can not be very large.

4) Stainless steel shell or pipe, excellent anti-corrosion performance, in line with food safety standards.

5) Anti-corrosion coated aluminum casing, corrosion-resistant, but the cost is quite high.

PTC water heaters can also be called PTC Liquid Heater, it can be used to heat any liquid, just pay attention to the use of a protective casing that is not used.

Technical details of PTC Heater:

1. Power tolerance: +5%, -10%

2. Resistance tolerance: +10%, -5%

3. Length tolerance: ± 2% or 3.2mm (1/8”), whichever is greater.

4. Camber Tolerance: 1.7 mm per meter (0.020 in per foot).

5. Diameter Tolerance: Each end diameter may vary by +0.05mm -0.1mm (+.002" -.004")

6. Current escape (cold): <=0.1mA a 242 v

7. Insulation (cold): 5 minutes Ohmios 500 watts minimum

8. Insulation resistance (cold state): ≥50MΩ;

9. Maximum leakage current (cold state): ≤0.5 mA;

10. Dielectric strength: 1500v. 1/segment

11. Connection cutting tolerance: +/-15 mlm

Application of PTC Water Heaters:

PTC water heaters can be used for showers, feet washing, hand washing, vegetables and dishes, beverage heaters and boilers, fermenters, tea heaters, coffee pots, milk heaters, steam generators, saunas.

They can be used to heat diesel, gasoline or other liquids. Using PTC as a heating element prevents oil from burning and is safer.

Order Guide:

If you like Jaye's PTC Water Heater you just need to let us know the below information:

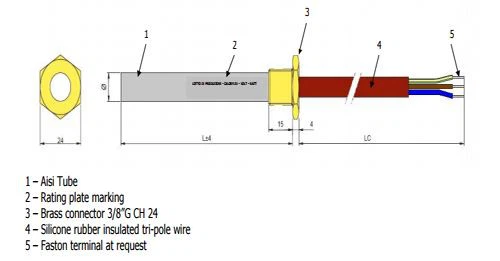

1-Diameter of the Pipe.

2-The length of the Pipe

3-The Working temperature of the PTC you need.

4-The size of the thread you need for installing.

5-Quantity

6-If you have any technical designed drawing that would be best helpful.

Notes:

Jaye Industry can make customization according to requirements, please share us with technical specifications so that we can make customization and quote to you.
