PTC Heater For Incubator
Product Details
Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of ptc heater for incubator in China, also supports custom service. Welcome to wholesale high quality ptc heater for incubator at competitive price from our factory.
Description

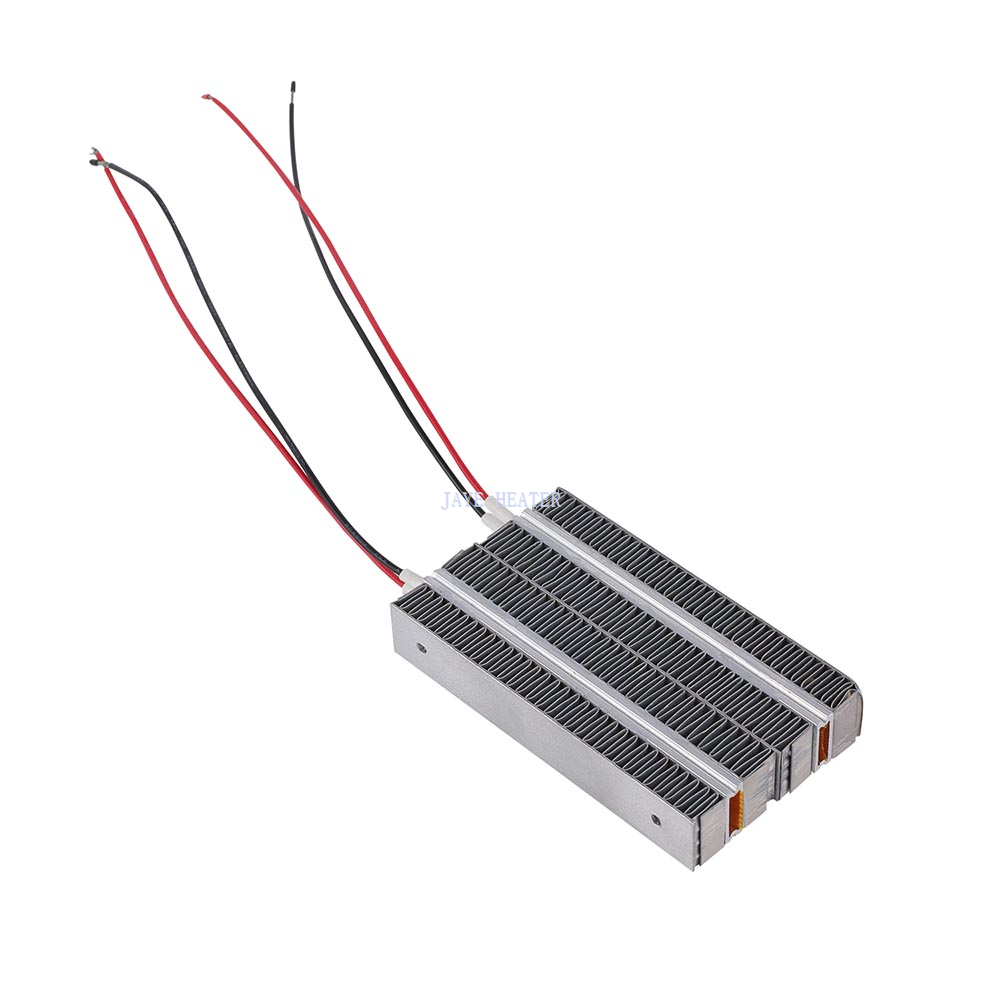

The PTC heater for incubator has small heating resistance and high efficiency to transfer heating. And it is a auto constant temperature and lower power PTC heating. The PTC heating has a prominent trait that is safety side. It will not be red as the other heating so that empyrosis and conflagration etc can not happen. And because Al material are used in the PTC heating, it have a long life than the other heating products.
According to this trait, the PTC heating can be used very widly. Such as the air curtain and airconditioning and electric cars and electric bus and some home appliances etc.
At the moment we had the following size mould. But we can produce the PTC heating the other size or trait as your need.
Specification
| Max surface temperature | 60~300ºC Can be customized |
| Usage voltage | 12V~240V Wide voltage use |
| Resistance | 0.1-4A can be customized |
| Inrush Current | 1-40K Ω can be customized |
| Withstand voltage | 1000VAC+ |
Instruction manual
1, The power line does not distinguish between positive and negative, you can freely link power 48V.
2, When the heater is dry, low thermal efficiency, it is recommended to use with the fan.
3, Can be placed under a wet environment, but can not be placed in water.
4, for the first time, will produce a small amount of smoke, is a normal phenomenon, it will disappear within a short time.
5, Built-in 230 degrees Celsius heater chip, when dry the surface temperature of about 200 degrees Celsius, the fan blowing, the surface temperature of about 120 degrees Celsius.
6, Both ends of the product wearing bracket (PA66 high temperature nylon)
7. Test: Ambient temperature 24 degrees Celsius, the wind speed: 3.3 m / s, distance from the outlet 10 cm. Hot air temperature of about 50-60 degrees Celsius.
8, Under normal circumstances, PTC heater in a very short time after the start, it will have an impact power, which is about 1.5 to 3 times the rated power, but will rapidly decline, which is normal. Please buyers understand!
9, Life: about: 3--5 years.
