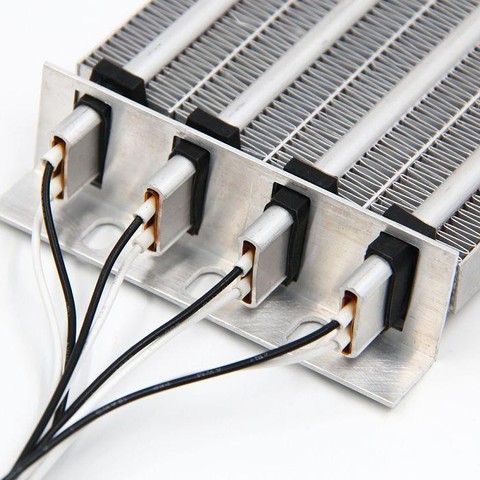

PTC convection air heater, also known as PTC air blowing heater. It consists of galvanized steel plate, stainless steel corrugated spring plate, galvanized plate, single layer aluminum fin, PTC heating plate, double aluminum fin, nickel copper electrode terminal and PPS high temperature plastic electrode. Due to the use of corrugated fins, the PTC air fan heater produced by JAYE Industry has improved heat dissipation, thermal conductivity, good heat dissipation, high efficiency, safety and reliability. Jaye Industry manufactures PTC heaters with the advantages of low thermal resistance and high heat transfer efficiency. This is an automatic temperature self-regulating electric heater.
1-Temperature rise rapidly, temperature Self-regulating, long service life
2-Wide voltage range, can be designed to 12V-380V
3-Not burning, safe and reliable,
4-Heat rapidly and higher thermal efficiency.
5-Healthy and environmentally friendly adhesive bonding more health.
Cautions in the Application
1) This type of PTC air heater requires a fan to blow air, usually the faster the blowing speed, the greater the power;
2) No blowing will not damage the PTC heater, but the power is very low;
3) Without blowing air, the surface temperature of the heater will be higher. The thermostat can be mounted on the heater to prevent damage to the stand.
Application of PTC convection air heater
Moisture proof for electronic equipments, heating for electronic controll case, room heater. bathroom heater, air conditioner heater, drying room heater, clothes dryer, hand dryer, air conditioner system for electric car, discharging loader for battery.
|Air Conditioner||Air Curtain||Hot Glue Gun|
|Hair Straightener||Medical Device||Dehumidifier|
|Bathroom Heater||Beauty Treatment Equipment||Water Dispenser|
Car Cabin Industry
