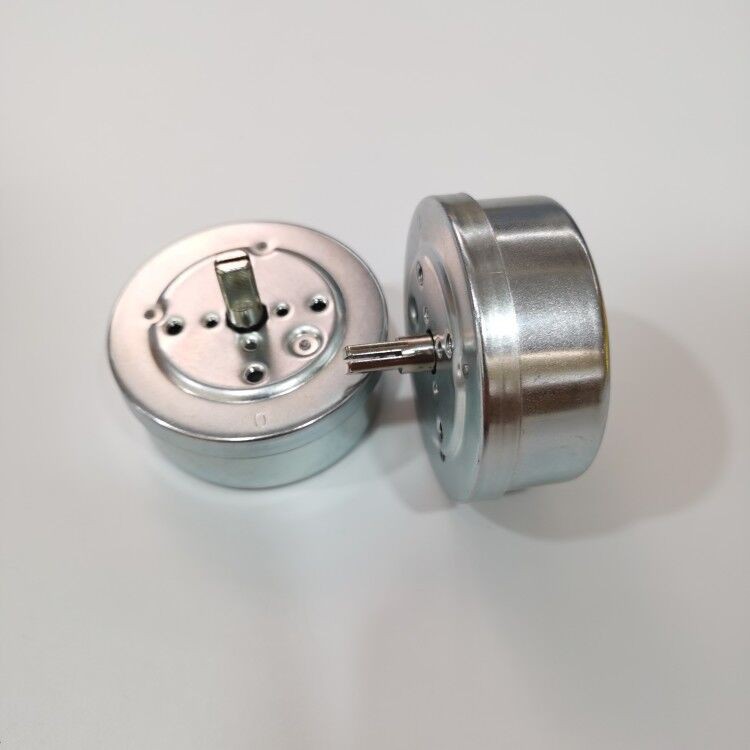

Round Kitchen 60 Minutes Oven Timer

Technical specifications: Timing range: 15min - 120min Working environment: T125 Ring time: > 3S Setting direction: Clockwise Force moment of operation:<0.5N.m Type: 60C-3 timing movement Working Angle:270°C/ 360°C Service life: >50,000 times Product size: 52 * 25MM; One box of 200,...
Chat Now

Product Details

Technical specifications:

Timing range: 15min - 120min

Working environment: T125

Ring time: > 3S

Setting direction: Clockwise

Force moment of operation:<0.5N.m

Type: 60C-3 timing movement

Working Angle:270°C/ 360°C



Service life: >50,000 times

Product size: 52 * 25MM;

One box of 200, gross weight 18kgs;

Box size: 49 * 30.5 * 24.5cm

Product regular timing 60 minutes countdown, industry standard error plus or minus 3 minutes

 T

Technical parameters of regular 60 minute timer:

  1. Time setting range 60 points

  2.  set the direction clockwise

  3. Action direction counter clockwise

  4.  Operating temperature range - 10 ℃ to + 60 ℃

  5.  Action angle 360 degrees, plus or minus 5 degrees

  6. Operating torque 1.0 − 5.0kgfcm

  7.  Return torque 0.5 − 4.0kgfcm

  8.  Time accuracy ± 5%; alarm time between 3-5 seconds



Usage Attention:

  1. Turn the timer clockwise one turn to zero scale, and then turn it anticlockwise back to the required time

    [notice]

  2. Don't twist the string in the opposite direction

  3. Do not twist the top chord for one turn to avoid damage to the core. Do not use too much force when rotating

  4. Do not repeatedly screw back and forth to avoid damage to the movement

  5. Avoid contact with fire or high temperature environment



Application-Timer
