Mechanical Oven Timer

Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of mechanical oven timer in China, also supports custom service. Welcome to wholesale high quality mechanical oven timer at competitive price from our factory.

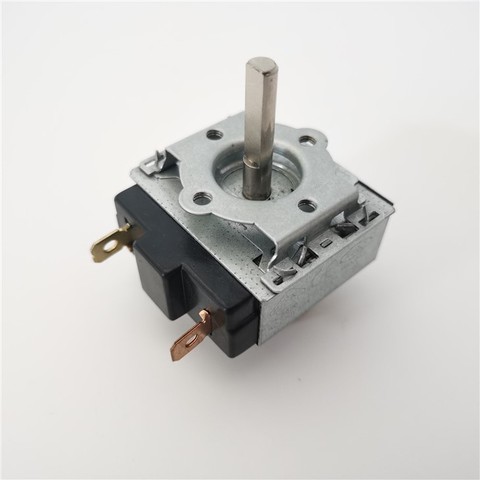

Mechanical Oven Timer

Mechanical oven timer is widely used in various electrical appliances and can be timed according to requirements. There are two types of round and type, and you can also choose to bring bells or without bells.

Parameters of Mechanical Oven Timer

1.Operating working Temperature:-10--+125 deg C

2.Working angle:270±5°

3.Operating torque force:0.1-0.5N.M

4.Time Setting Direction:CW. Clockwise

5.Working Direction:CCW. Counter clockwise

6.Endurable Life:10000times or more, at 5 times/min

7.Time Tolerance: 5% or less

8.TimeSettingRange: 5min/15min/30min/60min/75min/90min/120min/180min

9.Mounting plate:4-M3,4-M4

Features of Mechanical Oven Timer

1. It will automatically cut off the power and stop the control system.

2. Single current system, open/close.

3. The operating error is almost zero, and it is resistant to high temperatures.

4. It means the timer stops running when it rings. (System shut down).

After years of unremitting efforts, in addition to supporting many well-known domestic enterprises, the timers produced by Jaye Heater are also exported to dozens of countries such as Japan, South Korea, Saudi Arabia, the United States, France, Turkey, etc. , and have won the trust and satisfaction of customers.
