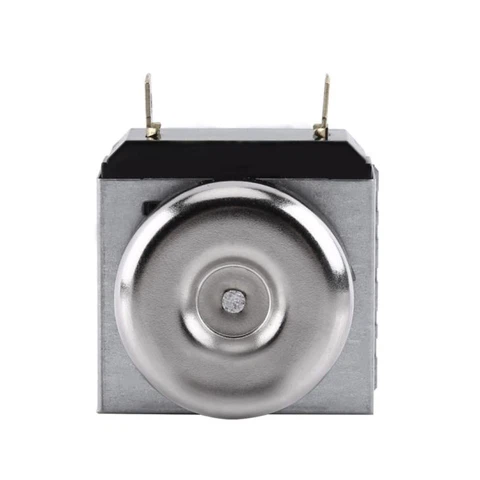

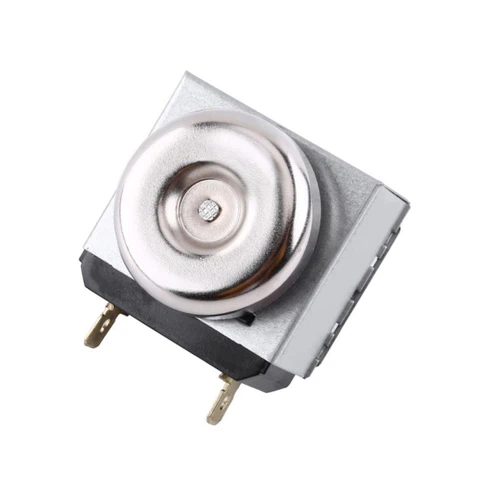

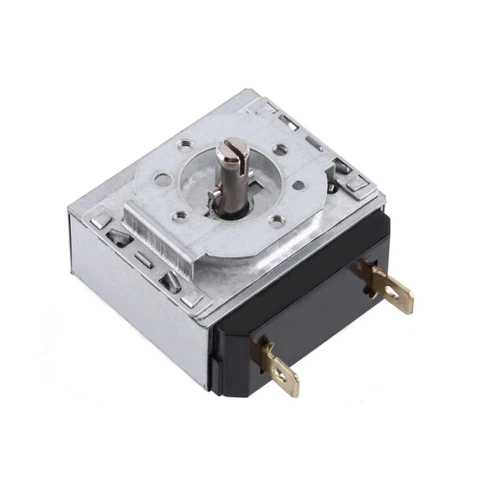

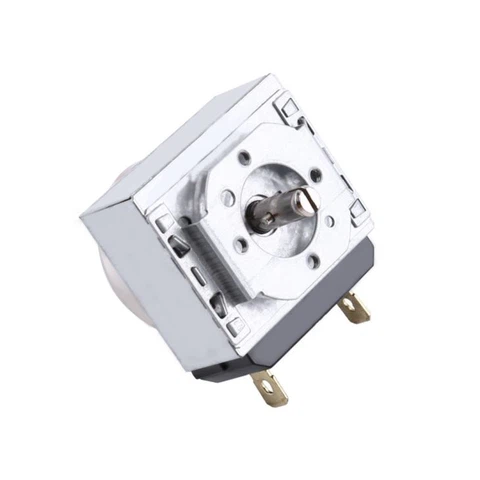

Timer Switch With Bell For Oven Cooker

Instructions for use: turn the timer clockwise to zero scale, and then turn it anticlockwise back to the required time. The timer will send out a clear bell at that time. Technical parameters: Timing range: 5-60 minutes Working temperature: normal temperature Working angle: 360 ° ± 6 ° Operating...
Chat Now

Product Details

Instructions for use: turn the timer clockwise to zero scale, and then turn it anticlockwise back to the required time. The timer will send out a clear bell at that time.



Technical parameters:

Timing range: 5-60 minutes

 Working temperature: normal temperature

 Working angle: 360 ° ± 6 °

Operating torque: 1.0 ~ 5.0kg · cm

 Return torque: 0.5 ~ 4.0KG · cm

 Setting direction: clockwise

 Action direction: counter clockwise

 Time accuracy: ± 5%

Ring time: 2.5 seconds

 00

Electric oven timer, timer switches, Refrigerator Defrost Timer Specifications:

Usage: used on ovens

Time range: 5, 15, 30, 45, 60 & 90 min

Spec.: with bell or no bell

Contact: 16A, 250V

Certificates: UL, VDE,RoHs

 00

Applications:

Gas stove/oven timers, It can be used on gas oven, gas cooker, gas stove. When time is over, it will ring.

Electric oven timer description:

name

oven timer

certification

CE RoHs

shaft

brass/iron material

temperature

125

timing

60min 90min 120min

usage

gas oven



Precautions:

  1. When rotating to the end, do not use too much force to avoid damaging the built-in movement;

  2.  During timer operation, do not rotate back and forth repeatedly to avoid damaging the built-in movement;

  3. The timer shell is made of ABS plastic, do not throw, throw, smash and other vulnerable timer shell;

  4. The timer shell and built-in movement are made of plastic. Please do not bake or burn them with fire.



Application-Timer

Hot Tags: timer switch with bell for oven cooker, China, manufacturers, suppliers, factory, customized, electric, high quality
