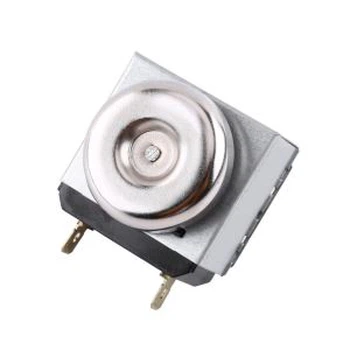

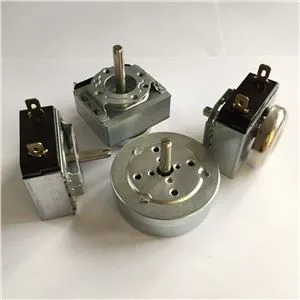

1 Hour Mechanical Timer
Product Details
Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of 1 hour mechanical timer in China, also supports custom service. Welcome to wholesale high quality 1 hour mechanical timer at competitive price from our factory.
1 Hour Mechanical Timer is also called 60 minutes mechanical timer, They are popular used in various home appliances, like electric oven, electric air fryer, electric microwave oven, etc.
Specification
1. Contact capacity: AC50/60Hz 120V 15A 250V 15A/16A
2. Time accuracy: ±6%, But the test posture is placed according to the customer's use direction. Maximum time limit setting 270°±5°; timer
The automatic OFF to complete stop angle is 45°.
3. Spindle torque: Winding torque 1.0～3.5 ㎏ f.㎝, Rewind torque 2.5～4.5 ㎏ f.㎝
4. Breaking torque: 12 ㎏ f.㎝ or more, The torque that each part of the main shaft can withstand clockwise.
5. Contact spacing: 1.5 mm or more, The contact distance of the timer OFF state.
6. Insulation withstand voltage: AC50/60Hz 1800V can withstand 1 minute, 3750V for 1 second
7. Insulation resistance: DC500V insulation resister can withstand more than 100MΩ
8. The surface resistance of the contact should be below 50mΩ.
9. Insulation distance: 2.0 mm or more, Insulation distance between the metal of the energized part and the non-energized part.
