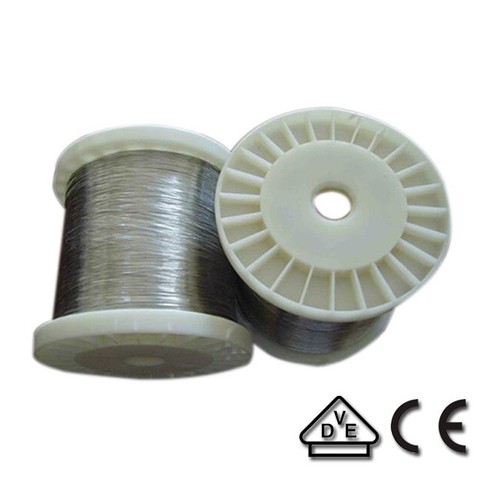

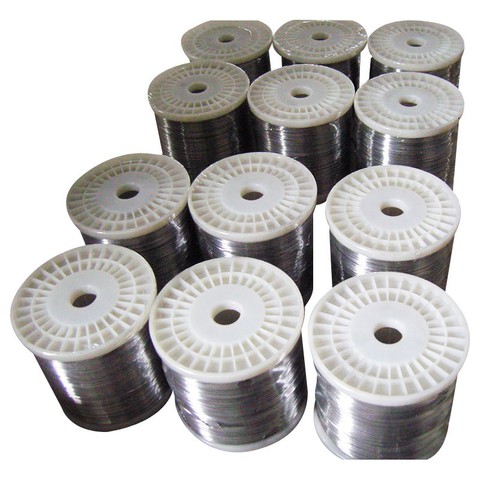

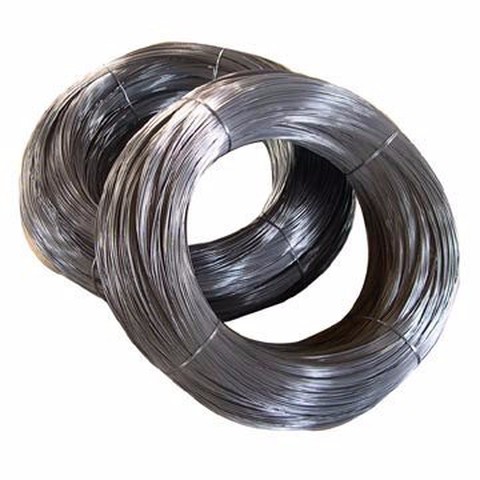

High Electrical Resistivity Resistance Wire
Product Details
Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of high electrical resistivity resistance wire in China, also supports custom service. Welcome to wholesale high quality high electrical resistivity resistance wire at competitive price from our factory.
Think of resistance wire as the workhorse that turns electricity into controlled, reliable heat. It's a specially formulated metal alloy designed with one key property: high electrical resistivity. When you pass an electric current through it, this inherent resistance causes the wire to heat up significantly – that's the Joule heating effect in action. Unlike regular copper wire that conducts electricity efficiently (low resistance), resistance wire intentionally impedes the flow, generating the precise, consistent heat your heating elements demand. Its performance directly dictates your element's efficiency, lifespan, and suitability for specific applications.
Specification
| Product name | High electrical resistivity resistance wire |
| Resistivity (Ω mm²/m or μΩ cm) | Typical range: 0.8 - 1.5 μΩ m. |
| Alloy Composition | Nickel-Chromium/ Iron-Chromium-Aluminum/Copper-Nickel |
| Maximum Operating Temperature (°C) | The peak surface temperature of the wire |
| Wire Diameter (Gauge) | Exact dimension required (e.g., 0.5 mm, 0.8 mm, 1.2 mm, 18 AWG) |
| Resistance Tolerance | Required precision level (e.g., ±3%) |
Advantage
Exceptional Energy Efficiency
Resistance wire directly converts electrical energy into heat energy with very high efficiency (typically >90%). Minimal energy is lost to radiation or conduction in the process itself, meaning more of the electricity your customers pay for is turned directly into usable heat. This translates directly to lower operating costs for end-users.
High Operate Temperatures
Specialized alloys (like NiCr and FeCrAl) withstand extreme surface temperatures – FeCrAl up to 1400°C+ and NiCr up to 1200°C+. This allows you to design elements for demanding industrial furnaces, kilns, and high-heat appliances where alternatives fail.
Controllable Heat Output
You achieve exact temperature control. By varying the voltage or current supplied (or using thermostats/PID controllers), the heat output adjusts instantly and predictably. The resistance is stable and reliable within its operating range, ensuring consistent performance batch after batch in your manufactured elements.
Superior Oxidation
Key alloys form self-protective oxide layers (Chromia for NiCr, Alumina for FeCrAl) at high temperatures. This dramatically slows down degradation, significantly extending the lifespan of your heating elements compared to unprotected metals, even in harsh environments.
Application
Resistance wire empowers heating elements across countless industries. Jaye-heater expertise positions you to serve these critical markets:
- Industrial Process Heating: The backbone. Furnaces (heat treatment, melting, sintering), ovens (curing, drying, powder coating), industrial heaters (air, immersion, circulation), plastic processing machinery.
- Commercial & Household Appliances: Ubiquitous. Ovens, toasters, toaster ovens, electric stoves/cooktops, dryers, water heaters (tank and tankless elements), coffee makers, hair dryers, space heaters, soldering irons, heated blankets.
- HVAC Systems: Duct heaters, unit heaters, defrost elements in heat pumps/AC units.
- Automotive: Seat heaters, defrosters (rear windows, mirrors), glow plugs (diesel), electric vehicle battery heaters, air intake heaters.
- Medical & Laboratory Equipment: Autoclaves, sterilizers, incubators, lab ovens and furnaces, analytical instruments.
- Food Service Equipment: Commercial griddles, fryers, warmers, steam tables, food dehydrators, conveyor ovens.
- Semiconductor Manufacturing: High-purity elements for diffusion furnaces and other critical processes requiring extreme cleanliness and temperature stability.
How to order
If you are interested in mica band heater, please share information as below:
- Specific Alloy: Clearly state the grade (e.g., NiCr 80/20, FeCrAl APM, Kanthal A-1).
- Wire Diameter (Gauge): Exact dimension required (e.g., 0.5 mm, 0.8 mm, 1.2 mm, 18 AWG). Tolerance (±0.02mm?) may affect cost.
- Spool Size / Quantity: Weight per spool (kg) and total order quantity (kg). Larger spools and bulk orders typically reduce per-kg costs.
- Resistance Tolerance: Required precision level (e.g., ±3%).
