Installing and mounting cartridge heaters in industrial equipment or machinery requires careful consideration to ensure proper operation and safety. Here are some common methods for installing and mounting cartridge heaters:

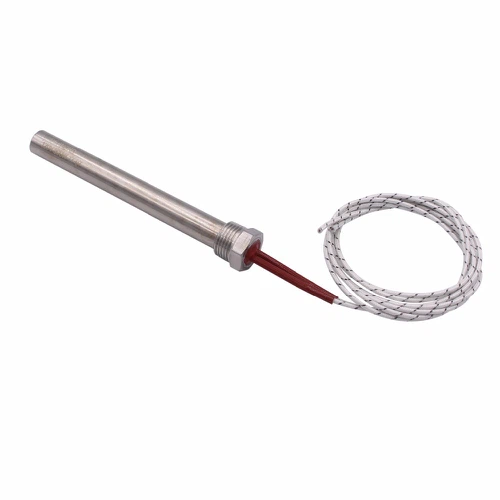

1. Threaded Installation:
Cartridge heaters often come with threaded terminals, which can be screwed directly into threaded holes or bores in the equipment. Make sure the threads match for a secure fit.
2. Press Fit Installation:
Cartridge heaters can be press-fitted into a hole or bore that matches their diameter. Ensure a snug fit without damaging the heater's sheath.
3. Compression Fittings:
Use compression fittings or clamps to hold the cartridge heater securely in place. This method allows for easy removal and replacement.
4. Set Screws:
Set screws can be used to hold cartridge heaters in position. These screws are tightened against the heater's outer surface to prevent movement.
5. Threaded Bushings or Nuts:
Install threaded bushings or nuts over the heater's terminals to secure them in place. This method is especially useful when dealing with heaters that lack threaded terminals.
6. Mounting Flanges:
Some cartridge heaters come with mounting flanges that can be bolted or welded to the equipment's surface, ensuring stable positioning.
7. Welding:
In certain applications, cartridge heaters may be welded to the equipment or machinery. This is typically done when a permanent, secure attachment is required.
8. Ceramic Insulators:
For high-temperature applications, ceramic insulators can be used to isolate the cartridge heater from the surrounding components and provide electrical insulation.
9. Heat Transfer Compounds:
Apply heat transfer compounds (thermal paste or grease) between the cartridge heater and the mounting surface to improve heat transfer and ensure uniform heating.
10. Thermowells:
In some cases, thermowells are used to house cartridge heaters, providing protection from mechanical damage and allowing for easy removal and replacement.
11. Terminal Boxes or Enclosures:
Use terminal boxes or enclosures to protect the electrical connections of cartridge heaters from environmental factors and potential damage.
12. Temperature Controllers:
Install temperature controllers to regulate the operation of cartridge heaters, ensuring precise temperature control and preventing overheating.
Always refer to the manufacturer's instructions and safety guidelines when installing and mounting cartridge heaters. Additionally, consider factors such as the operating environment, temperature requirements, and electrical connections to choose the most suitable method for your specific application. Proper installation and maintenance are crucial for the safe and efficient operation of cartridge heaters in industrial equipment and machinery.
