What are the characteristics and applications of aluminium foil heating plate respectively?
For the Heating plate, I believe everyone has heard of it! Its kinds and uses are not a few, now we will understand the aluminium foil heating plate! What kind of characteristic and application does aluminium foil heating plate have?

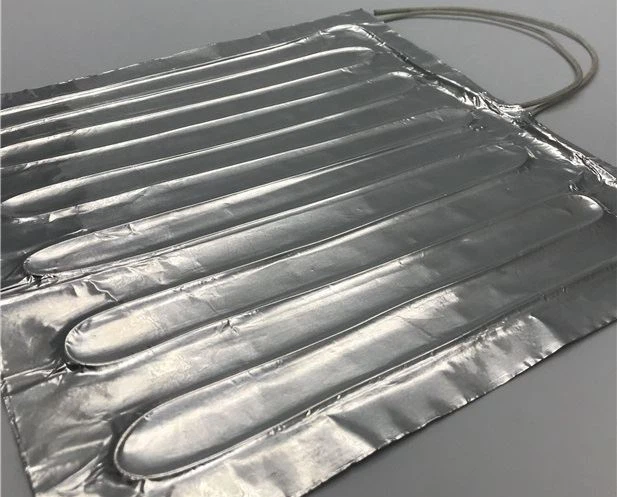

The heating element is composed of silica gel heating wire, which is placed between two pieces of aluminum foil or hot welded on a single layer of aluminum foil. The aluminum foil heater is attached with self-adhesive bottom layer, which is convenient and quick to install on the area where the temperature needs to be maintained. Aluminum foil heater is made according to its requirements, so the size can adapt to a variety of space.
Applicable to the rated voltage below 250V, 50-60Hz, relative humidity S90%, ambient temperature of -30℃~ +50℃.
1. size: Can be customized as required;
2. Voltage: Can be customized as required
3. Power deviation (resistance value deviation) S ±59
4. Leakage current: at working temperature, the leakage current is S0.5mA
5. Power deviation: The rated power under rated voltage is +5%,-109% of the rated value;
6. The peeling strength of aluminum foil and hot-wire bonding: 2 2N/1min without peeling or shedding
Application of aluminium foil heating plate (pan foil heating sheet) :
Refrigerators and freezers compensate for heating and defrosting, air conditioners, electric rice encroachment and heating of small appliances.
2. Heat preservation and heating of daily articles, such as toilet seat heating, foot bath basin, towel heat preservation cabinet, pet seat cushion, shoe sterilization box, etc.
3. Industrial and commercial machinery and equipment are heated and dried, such as digital printer drying, seed cultivation, fungus cultivation, etc.
