1. Basic Operation in Water Heating Systems

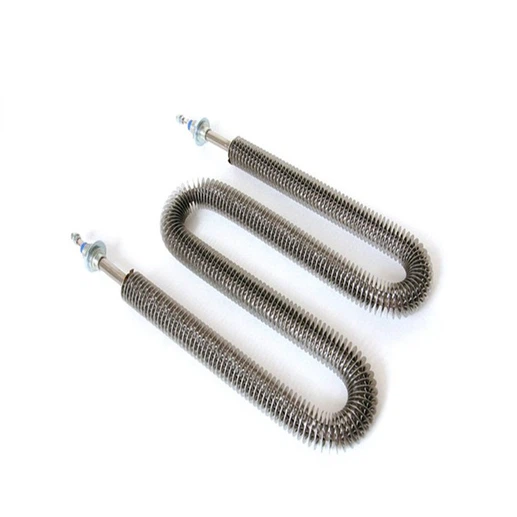

Heat Transfer Efficiency: The fins attached to the heating element increase the surface area available for heat transfer, allowing the heater to release more energy into the water quickly. This makes fin heaters much more efficient than traditional heating elements.
Water Circulation: In most water heating applications, the heater is immersed in the water, where it heats the surrounding fluid directly. The fins help distribute the heat uniformly throughout the water, reducing hotspots and improving overall efficiency.
2. Applications of Fin Heaters in Water Heating
A. Tank Water Heaters
Installation: In tank-style water heaters, finned electric heating elements are installed inside the tank. The fins are usually embedded in the heater's metal casing, with the element submerged in the water.
Operation: When electricity flows through the finned element, it heats up and transfers heat to the surrounding water. The fins increase the surface area of the heater, allowing it to heat water faster and more evenly.
Benefits: The increased surface area from the fins reduces energy loss and improves heat efficiency, making the water heating process faster and more cost-effective.
B. Tankless (On-Demand) Water Heaters
Installation: In tankless water heaters, fin heaters are used to heat water on demand. The heating element is usually placed in the flow path of the incoming water.
Operation: As water flows over the heating element, the fins help transfer heat from the element to the water. The fins ensure that the heat is distributed efficiently, enabling immediate hot water delivery when needed.
Benefits: Finned elements improve the heat exchange process, allowing tankless heaters to provide a constant supply of hot water without the need for a storage tank.
C. Immersion Heaters
Installation: Finned immersion heaters are typically used in industrial and commercial applications, such as in large tanks or water reservoirs. The finned heater is directly submerged in the water or liquid to be heated.
Operation: The finned immersion heater heats water by transferring heat from the electric element to the surrounding water. The fins increase the heat transfer surface area, ensuring that the entire tank of water is heated uniformly.
Benefits: The improved heat transfer efficiency allows faster heating, saving time and energy. These types of heaters are commonly used in systems that require large volumes of heated water, such as in food processing or heating systems.
D. Solar Water Heating Systems
Installation: In solar water heating systems, finned heating elements can be used as part of the backup heating system. The solar collectors gather sunlight and transfer it to a heat exchanger, which uses finned elements to transfer heat into the water.
Operation: If sunlight is insufficient (for example, on cloudy days), the backup fin heater can be activated to maintain the desired water temperature.
Benefits: Finned elements in solar water heaters improve heat transfer efficiency, allowing the backup heater to use less energy and heat water more quickly.
3. Key Considerations for Using Fin Heaters in Water Heating Systems
A. Wattage and Size
Wattage Selection: Depending on the application (e.g., residential water heater or industrial water tank), the wattage of the fin heater should be selected accordingly. Larger systems or higher water volumes typically require higher wattages to achieve the desired heating performance.
Size and Dimensions: The size of the finned element must be tailored to fit the specific application. For example, a tank heater will require a different size and shape compared to a tankless water heater or an immersion heater.
B. Material Compatibility
Corrosion Resistance: Since the heater is submerged in water, the material of the heater element must be resistant to corrosion. Stainless steel or titanium is often used for its high resistance to rust and corrosion. If you're heating water that is highly acidic or contains chemicals, make sure the heater material is suitable for that specific environment.
Heat Resistance: The material of the heater should also be able to withstand the temperatures that will be generated by the heating process. Finned heaters made from high-quality stainless steel are often selected for water heating due to their durability and resistance to high temperatures.
C. Temperature Control and Safety
Thermostat Integration: For safety and efficiency, finned electric water heaters are usually equipped with thermostats or temperature controllers to regulate the water temperature. This helps prevent overheating and ensures that the water is heated to the desired temperature.
Overheating Protection: Many water heating systems equipped with finned heaters will include overheat protection. This safety feature automatically turns off the heater if the water reaches an unsafe temperature, preventing damage to the system and reducing the risk of accidents.
D. Water Quality
Hard Water Considerations: In areas with hard water (water with a high mineral content), finned heaters may accumulate mineral deposits over time, which can reduce their heating efficiency. Regular cleaning and maintenance of the heating element may be required to prevent buildup of scale.
E. Efficiency
Energy Savings: The increased surface area of finned heaters reduces energy consumption by allowing for faster heat transfer with less energy input. This is especially beneficial in large-scale industrial applications, where heating water or fluids is a continuous process.
Reduced Heating Time: The greater heat exchange efficiency allows the system to heat the water more quickly, reducing the time required to bring the water to the desired temperature.
4. Advantages of Using Fin Heaters for Water Heating
Increased Heat Transfer: The finned design enhances the heat exchange process, allowing the heater to heat water faster and more efficiently.
Uniform Heating: The fins ensure that heat is distributed evenly throughout the water, preventing hot or cold spots and improving the overall performance of the water heating system.
Energy Efficiency: The increased surface area means that fin heaters can operate at lower wattages while providing the same level of heat output, helping to reduce energy consumption.
Compact Design: The compact design of fin heaters makes them suitable for installation in various space-constrained environments.
Long Lifespan: Finned heaters made from high-quality materials like stainless steel are durable and resistant to corrosion, offering a long service life even in harsh water conditions.
Finned heaters are an effective and efficient choice for water heating applications. By increasing the surface area for heat transfer, they allow for quicker, more uniform heating, making them ideal for tank-style heaters, tankless water heaters, immersion heaters, and other water heating systems. Whether used in residential, commercial, or industrial applications, fin heaters can significantly improve the energy efficiency and performance of water heating systems.
