When selecting a heater for your 3D printer's hot end or heated bed, the choice often comes down to two prevalent types: Silicone Rubber Heaters and Kapton (Polyimide) Foil Heaters. Both utilize an etched-foil element but are encased in different materials, leading to distinct performance trade-offs.

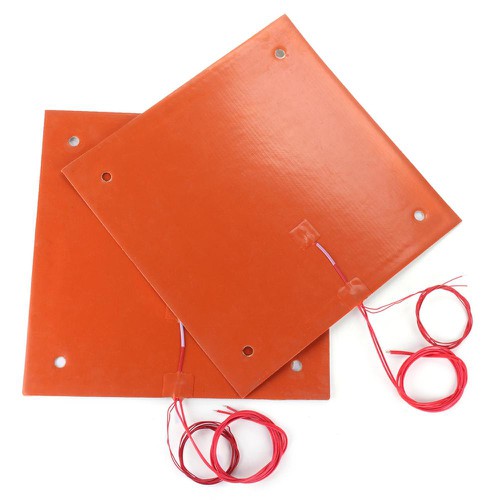

Silicone Rubber Heaters: The Durable Workhorse
These heaters consist of a resistance element laminated between two layers of flexible, thick silicone rubber.
Advantages:
Exceptional Durability: This is their standout feature. The silicone layers are tough, offering high resistance to tearing, punctures, physical abrasion, and impact from accidental nozzle crashes.
High Power Density & Temperature Resistance: Silicone can withstand continuous temperatures up to 200°C - 250°C, making it ideal for high-temperature materials like ABS, PC, and Nylon that require a heated bed over 100°C.
Excellent Environmental Sealing: They provide superior moisture, chemical, and fluid resistance (e.g., against isopropyl alcohol during cleaning), ensuring a long operational life.
Ease of Installation: They often come with a pre-applied pressure-sensitive adhesive (PSA) for straightforward mounting.
Disadvantages:
Thickness and Weight: They are significantly thicker (typically >1mm) and heavier than Kapton heaters. This added mass can be detrimental to print quality on fast printers or those with direct-drive extruders where minimizing moving mass is critical.
Slower Thermal Response: The greater thickness and the lower thermal conductivity of silicone result in a slower ramp-up to the target temperature.
Higher Cost: They are generally more expensive than comparable Kapton heaters.

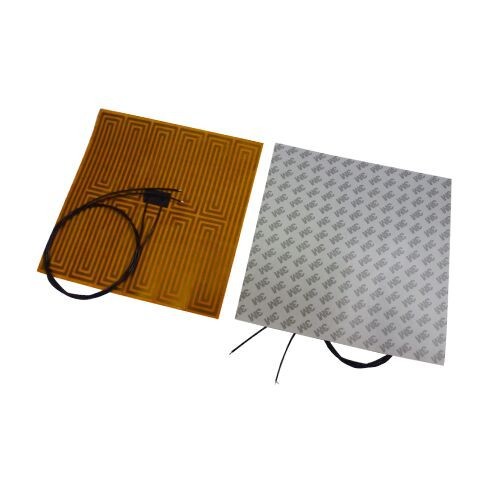

Kapton (Polyimide) Foil Heaters: The Lightweight Performer
These are the classic "aluminum foil" heaters, where the element is sealed between two layers of thin, gold-colored polyimide film.
Advantages:
Extremely Thin, Light, and Flexible: This is their core advantage. With profiles as thin as 0.1mm, they add negligible mass and are highly flexible. This makes them the undisputed choice for Bowden-setup and high-speed printers to reduce inertia and ringing artifacts.
Rapid Thermal Response: Their minimal mass and the properties of polyimide allow for very fast heating and cooling, enabling quick start-ups and precise temperature control.
Cost-Effective: They are typically the most economical option.
Disadvantages:
Mechanical Fragility: This is their primary weakness. The polyimide film is easily pierced, scratched by a nozzle, or torn during handling or maintenance. Once the outer layer is compromised, the heater's electrical insulation fails, creating a short-circuit hazard.
Lower Power Density and Temperature Limit: While sufficient for PLA, PETG, and TPU (bed temperatures ≤ 80°C), their maximum continuous operating temperature is lower than silicone's, usually capped at around 150°C - 200°C.
Poor Chemical and Abrasion Resistance: They are more susceptible to degradation from solvents like IPA and generally have a shorter lifespan due to physical wear and tear.
Summary and Selection Guide
| Feature | Silicone Rubber Heater | Kapton Foil Heater |
|---|---|---|
| Durability | Excellent | Poor |
| Thickness/Weight | Thick/Heavy | Extremely Thin/Light |
| Thermal Response | Good | Excellent |
| Max Temp Resistance | High (up to 250°C) | Moderate (up to ~200°C) |
| Cost | Higher | Lower |
Choose a Silicone Heater if: You have a direct-drive printer, frequently print high-temperature materials like ABS or Nylon, or simply prioritize maximum durability and longevity.
Choose a Kapton Heater if: You have a Bowden-style or high-speed printer where minimizing moving mass is paramount, you primarily print PLA/PETG, or you are on a tight budget and can handle the heater with care.
