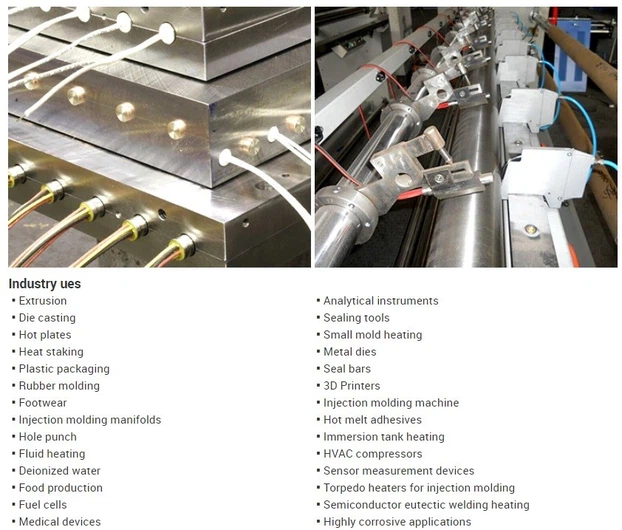

The Flat Cartridge Heater plays a crucial role in providing precise and uniform heating to mold plates, manifolds, and hot runner systems in injection molding processes. Here's how to use it effectively in these applications:
1. Installation
Step 1: Select the Correct Size & Wattage
Choose the heater based on the required temperature, wattage, and physical dimensions for the mold plate or runner system. Ensure it fits the space and has the appropriate watt density for efficient heat transfer.
Step 2: Mounting
Press-fit Installation: Insert the flat cartridge heater directly into the mold or manifold. Make sure it fits snugly without leaving gaps for optimal heat transfer.
Clamping: In some cases, use clamps or brackets to secure the heater in place, ensuring even contact with the surface for consistent heating.
Step 3: Electrical Connections
Connect the leads to the machine's electrical supply. Ensure proper insulation and that the electrical terminations are secure, whether using screw terminals or Faston connectors.
Step 4: Integration with Thermocouple
For precise temperature control, integrate a thermocouple (Type J or K) to monitor the temperature of the mold or heating zone. This helps prevent overheating and ensures consistent molding conditions.
2. Operation
Step 1: Start-Up
Gradually ramp up the temperature of the flat cartridge heater. Avoid sudden spikes to ensure the heating element is not damaged and that the mold reaches the desired temperature evenly.
Step 2: Monitoring Temperature
Use a temperature controller to continuously monitor the temperature of the mold. The thermocouple will provide real-time data, and adjustments can be made to maintain the desired setpoint.
Step 3: Continuous Heating
Maintain a stable operating temperature during the injection molding cycle. The flat cartridge heater will keep the mold at a consistent temperature, ensuring smooth plastic flow and preventing solidification or uneven cooling.
3. Maintenance & Safety
Step 1: Regular Inspection
Periodically inspect the heater for signs of wear, corrosion, or damage. Check the connections for tightness and ensure no moisture has infiltrated the system, especially in high-humidity environments.
Step 2: Overload Protection
Ensure the heater is equipped with safety features such as thermal cutoffs or overload protection. These help prevent overheating and protect the system from potential damage.
Step 3: Cooling After Use
After use, allow the heater to cool down naturally. Avoid rapid cooling, which could cause thermal shock and reduce the lifespan of the heater.
4. Troubleshooting
Step 1: Temperature Fluctuations
If you notice inconsistent heating or temperature fluctuations, check the thermocouple connections and ensure that the heater is properly secured and making full contact with the mold.
Step 2: Heater Failure
If the heater stops working, inspect for potential electrical faults, broken wires, or burnt-out elements. Replace the heater if necessary and ensure proper installation to avoid future issues.
5. Best Practices for Efficiency
Even Heat Distribution: Ensure the flat cartridge heater is mounted flat and securely, making full contact with the mold surface to guarantee even heating.
Energy Savings: Use temperature controllers with PID (Proportional-Integral-Derivative) functionality to maintain temperature stability, reducing energy consumption and improving cycle times.
By following these steps, JAYE Flat Cartridge Heaters can be effectively used in injection molding applications, ensuring precise, consistent, and efficient heating for high-quality molded parts.
