With its precise snap-action response and compact design, the KSD 9700 isn't just a thermal protector-it's your lighting system's silent guardian. Engineered for reliability and automatic recovery, it safeguards your fixtures from invisible heat threats, ensuring longer life, consistent performance, and total peace of mind.

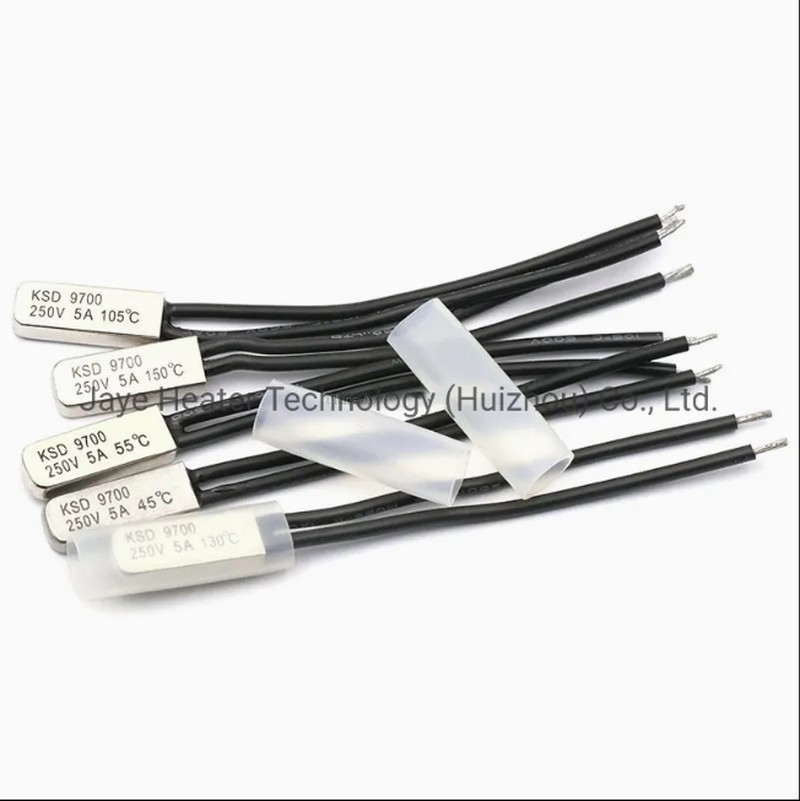

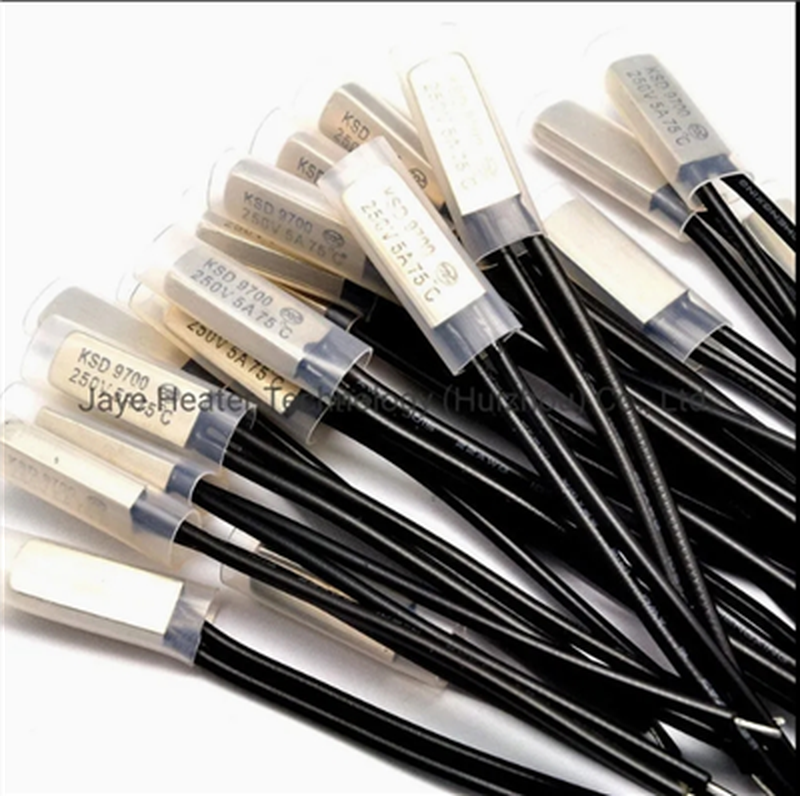

KSD 9700 Thermal Protector:
- Preset temperature range: customizable
- Rated current/voltage: customizable
- Bimetallic disc technology: Ensures reliable snap action
- Compact and sealed casing: Suitable for use in limited spaces and dusty environments
Why Use KSD 9700 in Lighting Systems?
Lighting systems, particularly enclosed LED fixtures, recessed lights, and track lighting, generate heat during prolonged operation. Without adequate heat management, thermal stress can:
Degrade electronic drivers
Shorten LED lifespan
Create fire hazards
KSD 9700 Provides:
Automatic Thermal Cutoff: Interrupts power when fixture temperature exceeds safe levels
Fail-Safe Protection: Prevents overheating damage even if fans or heat sinks fail
Self-Reset Function: Automatically restores power after temperature normalizes
Compact Integration: Easily installed in tight fixture spaces or lamp housings
Typical Applications in Lighting
| Application | Function of KSD 9700 |
|---|---|
| LED Downlights | Prevents LED board or driver overheating |
| Halogen Lamps | Avoids housing overtemperature risk |
| Enclosed Fixtures | Acts as a backup to passive cooling |
| Emergency Lighting | Ensures thermal protection during extended use |
Installation Considerations
When integrating the KSD 9700 in lighting systems:
Place it close to the heat source or temperature-critical components (e.g., LED driver)
Ensure firm thermal contact, possibly with thermal pads or clips
Choose the temperature rating based on the operating environment and safety thresholds
