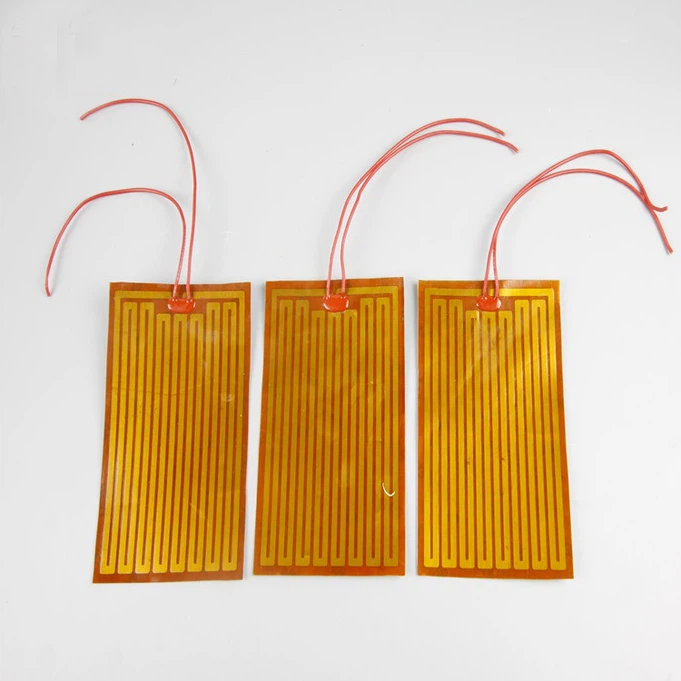

A polyimide film heater utilizes a flexible polyimide film as the substrate and a resistive heating element to generate heat. Here's a breakdown of how a polyimide film heater typically works:
1. Polyimide Film Substrate:
The base of the heater is a flexible polyimide film, which is a durable and thermally stable material. Polyimide films are known for their high-temperature resistance, flexibility, and electrical insulation properties.
2. Deposition of Resistive Heating Element:
A resistive heating element is deposited onto the polyimide film. This can be achieved using various methods, such as screen printing, thin-film deposition, or other printing techniques.
The resistive material is often a conductive ink or paste containing metal particles or other conductive materials. This layer acts as the heating element when an electrical current is applied.
3. Pattern Design:
The resistive heating element is patterned on the polyimide film to achieve the desired distribution of heat. The pattern can be customized based on the specific heating requirements of the application.
4. Electrical Connections:
Electrical connections are attached to the resistive heating element on the polyimide film. These connections enable the application of electrical power to the heater.
5. Power Application:
When an electrical current is applied to the resistive heating element, it generates heat due to the electrical resistance of the material. This heat is then transferred to the surrounding environment or a specific object in contact with the polyimide film.
Polyimide film heaters are widely used in applications where flexibility, thin profile, and precise control of temperature are essential. Common applications include medical devices, aerospace, electronics, and industrial processes. The flexibility of the polyimide film allows these heaters to conform to curved or irregular surfaces, making them versatile for various heating requirements.
