X-Shape Aluminum Tube
Product Details
Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of x-shape aluminum tube in China, also supports custom service. Welcome to wholesale high quality x-shape aluminum tube at competitive price from our factory.
Products Description
Finned X-shaped Aluminum Heating Element--High thermal conductivity and lightweight heat exchange solutionThe finned heating element is designed for high-efficiency radiators, automotive heating systems and industrial hot air equipment.
Products Advantages
The X-Shape design offers significant operational and economic benefits over conventional finned heaters:
- Exceptional Heat Transfer Efficiency: The "X" geometry creates intense turbulence in the air passing through the element. This turbulence breaks the insulating boundary layer of stagnant air, forcing more air molecules into direct contact with the heated fin surface. The result is a much higher rate of heat transfer (improved convection) for a given size.
- Compact & Lightweight Design: Due to its superior efficiency, an X-shape element can achieve the same heat output as a larger, heavier straight-fin heater. This allows for more compact equipment design, saving on space and material costs.
- Self-Spacing & Structural Rigidity: The interlocking and angled nature of the fins provides natural spacing and increased structural integrity. This reduces the risk of fin sagging or "nesting" during operation or handling, ensuring consistent performance and longevity.
- Reduced Airflow Resistance: While creating turbulence, the open design of the X-shape also minimizes static pressure drop across the heater. This means HVAC systems or fans don't have to work as hard to push air through, leading to lower energy consumption for the blower motor.
- Enhanced Cleanability: The open, cross-cut pattern is less prone to trapping dust, lint, and debris compared to densely packed straight fins. This makes maintenance easier and helps sustain high efficiency over time.
- Customization at its Core: At JAYE-HETAER, we specialize in customization. Every parameter-from fin dimensions, tube material and diameter, sheath length, watt density, to connection types-can be tailored to fit your specific application perfectly.
Products Speficications
| Parameter Category | Specific Details |
|---|---|
| Fin Material & Type |
Primary: Aluminum 1060/1070/1100 for excellent thermal conductivity. Type: Custom X-Shape (Cross-Cut). |
| Tube (Sheath) Material |
Standard: Stainless Steel 304, 321, 316. High-Temp: Incoloy 800, 840. Other: Carbon Steel, Copper. |
| Physical Dimensions | - Fin Height (e.g., 8mm - 25mm) - Fin Density (e.g., 5 - 12 fins per inch) - Tube Diameter (e.g., 8mm - 16mm) - Overall Length & Width |
| Electrical & Thermal Specs | - Voltage (e.g., 110V, 220V, 380V, 480V) - Power (Wattage) & Watt Density - Maximum Operating Temperature (e.g., 450°C - 750°C+) |
| Configuration & Finish | - Serpentine "U" or "W" Bends - Terminal Type (e.g., screw, stud, flying leads) - Mounting Brackets - Protective Coatings (e.g., epoxy, anodizing) |

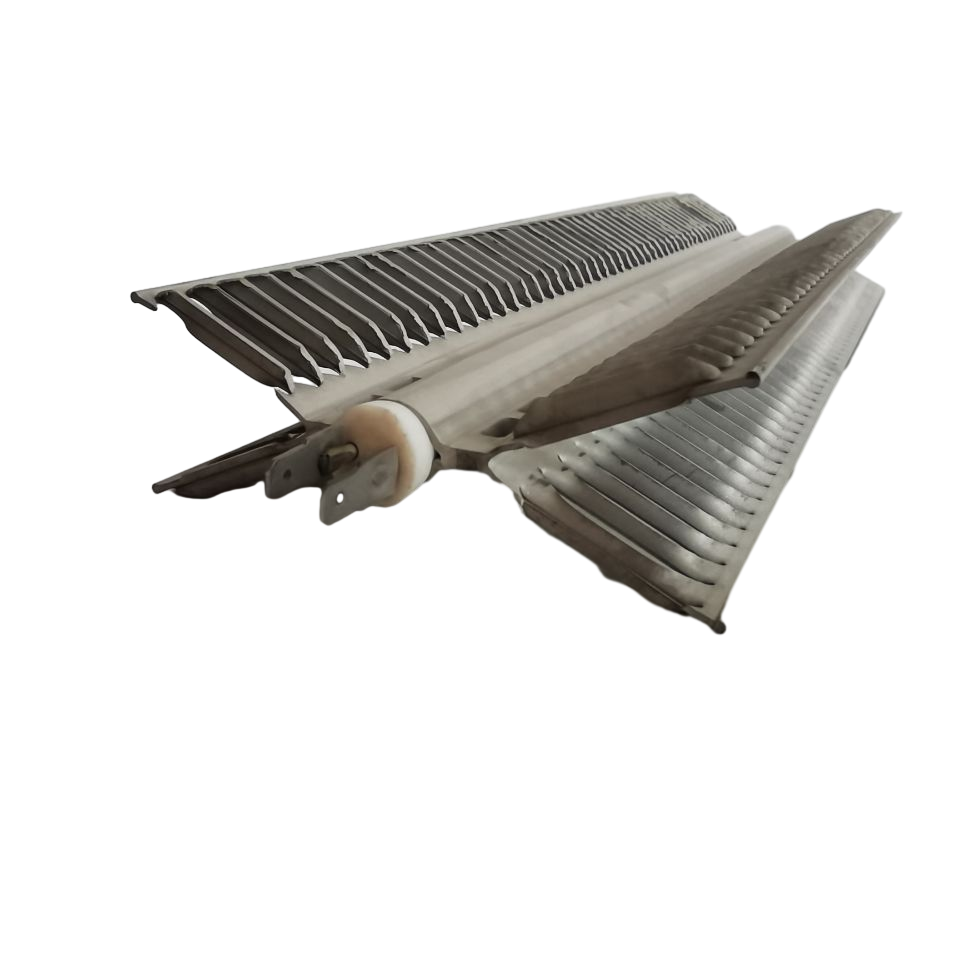

Product Pictures
Conclusion
The Aluminum X-Shape Finned Heating Element represents a smarter, more efficient approach to electric air heating. By choosing JAYE-HETAER as your manufacturing partner, you gain access to expert engineering, rigorous quality control, and a fully customized solution designed to enhance your product's performance and reliability.
Contact JAYE-HETAER today to discuss your specific requirements and receive a bespoke solution quote.
