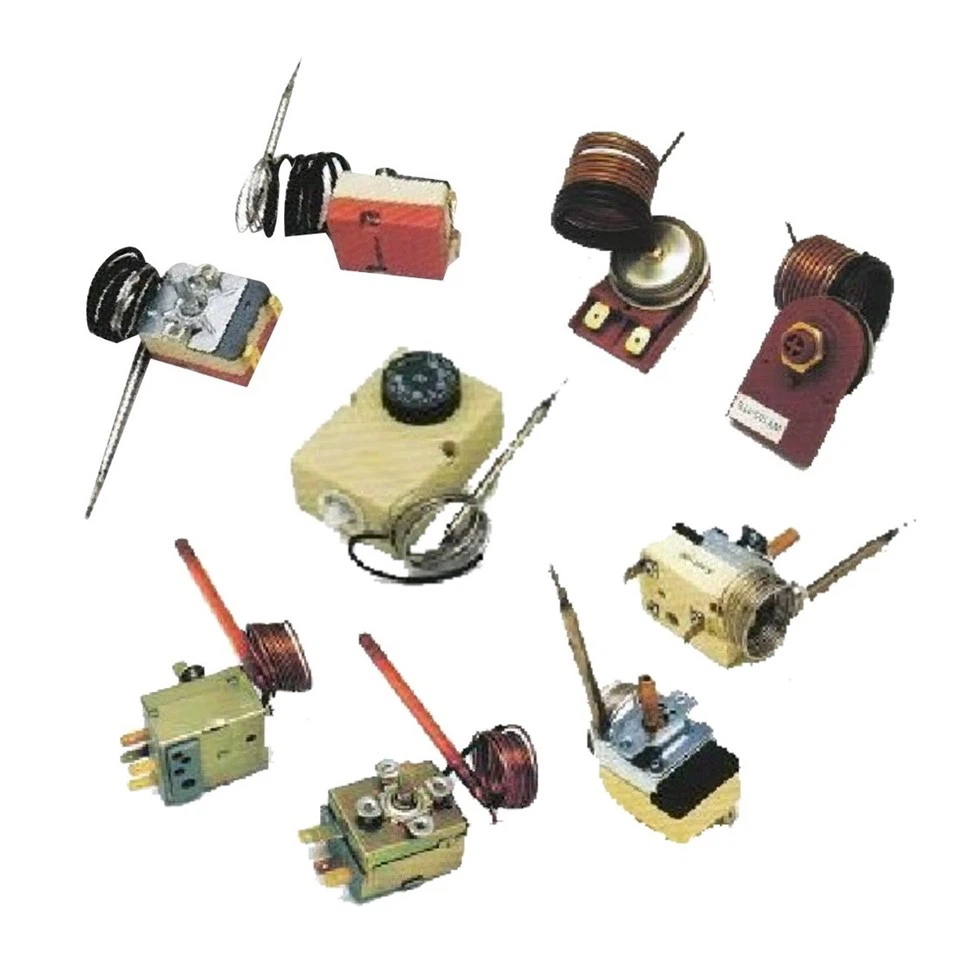

Rod Thermostats
Product Details
Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of rod thermostats in China, also supports custom service. Welcome to wholesale high quality rod thermostats at competitive price from our factory.
Capillary thermostats are mechanical temperature control devices that regulate temperature in various appliances and systems. They are widely used due to their reliability and simplicity, operating without the need for electronic components. The following overview will provide an insight into how capillary thermostats work, their components, and applications.
Specification of Rod Thermostats
Temperature Range: -35°C to 320°C.
Common ranges:
Low-temperature applications: -35°C to 100°C.
High temperatures: 50°C to 320°C (122°F to 608°F)
Temperature Differential (Hysteresis)
Definition: The difference in temperature between on and off.
Typical differential: 2°C to 10°C (3.6°F to 18°F)
Capillary tube specifications Ranges from 300mm to 3000mm (12 inches to 118 inches).
Material: They are often made from copper or stainless steel.
Diameter: Usually 1mm to 2mm (0.04 to 0.08 inches).
Sensing Bulb Specifications
Material: Made from stainless steel or copper for thermal conductivity and corrosion resistance.
Diameter: 6mm to 8mm (0.24 to 0.31 inches).
Length: Usually between 60mm and 200mm (2.4 inches and 7.9 inches).
Electrical Ratings
Voltage: Designed for 120V, 240V, or 400V AC systems.
Current: Rated to handle 6A, 10A, 16A, or higher.
Power: Typically between 500W to 3000W.
Switch Type:
Single Pole Single Throw (SPST): Simple on/off control.
Single Pole Double Throw (SPDT): Allows for two different circuits to be controlled.
Control the temperature accurately: The capillary thermostat controls temperature very precisely, making it suitable for applications that require high-precision temperature regulation.
Mechanical operation: The capillary thermostat can operate without a power source, even if there is no power or it is unstable.
Cost-effective: Capillary thermostats are usually cheaper than electronic ones and better for projects with limited budgets.
Reliable and durable: Capillary thermostats last a long time and don't get affected by things like electromagnetic interference.
Easy to install and maintain: It's simple to install and maintain, reducing complexity and costs.
Can be adapted easily: Suitable for household appliances, industrial equipment and heating systems.
Can be used in a wide temperature range.
Fast response: It responds quickly to temperature changes.
Application
Household appliances:
Water heater: controls water temperature and ensures constant hot water.
Oven and stove. Adjust the temperature to prevent overheating or undercooking.
Refrigerators and freezers keep food cool.
Heating, Ventilation and Air Conditioning (HVAC):
Room thermostat: controls room temperature for comfort.
Air conditioning controls the cooling and heating to save energy.
Industrial equipment.
Heater: used to control temperature during industrial heating.
Drying equipment: Control the temperature during drying to keep the product quality.
Lab and scientific equipment:
Incubator: Controls the temperature for biological experiments.
A thermostatic water bath is used to control the temperature in experiments.
Automotive industry:
Engine temperature control system: controls engine coolant temperature to prevent overheating.
Seat heater: Adjust seat temperature for comfort.
Hot water supply system:
Instant water heater: controls the water temperature for safety and comfort.
Central heating: controls water temperature and saves energy.
Electronic devices:
Power supply equipment: Control the temperature to avoid damage.
Food processing:
Baking and cooking equipment. Control the temperature to keep food safe and tasty.
Keep food in a refrigerator at the right temperature.
