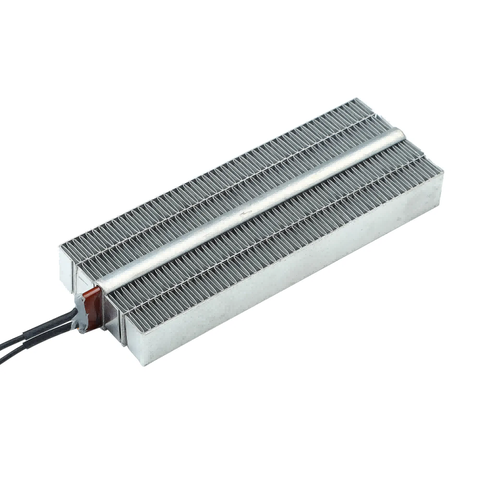

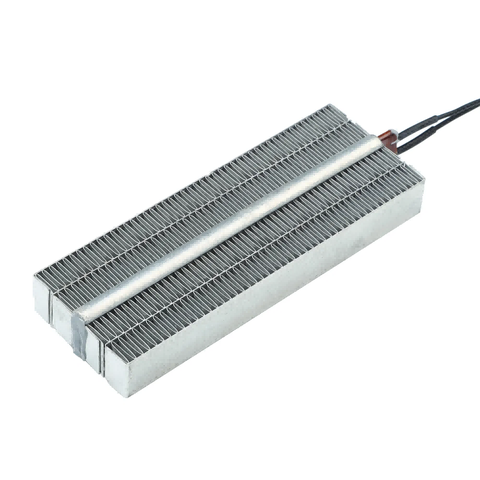

Insulation Air PTC Heater
Product Details
Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of insulation air ptc heater in China, also supports custom service. Welcome to wholesale high quality insulation air ptc heater at competitive price from our factory.
An Insulation Air PTC Heater is an electric heating device designed for efficient, self-regulating forced-air heating. It uses PTC ceramic discs or honeycomb structures along with thermally insulated housings to quickly heat airflow while reducing energy loss. Unlike normal heaters, its intrinsic resistance increases at a particular temperature, which stops overheating. It is appropriate for circumstances requiring a precise, secure, and steady warm-air supply because of this feature.
Specifications of Insulation Air PTC Heater
| Parameter | Specification |
|---|---|
| Operating Principle | PTC Ceramic + Forced Air Convection |
| Voltage Range | 12V DC, 24V DC, 110V AC, 220V AC, 240V AC |
| Power Output | 100W – 5,000W |
| Max. Airflow Temperature | 60°C – 200°C (140°F – 392°F) |
| Thermal Response Time | < 60 seconds |
Benefits of Insulation Air PTC Heater
1-Energy Efficiency Self-regulating
Only draws a lot of power when starting up, then stabilizes and cuts consumption by 20–40%.
2-Inherent Safety
Automatic temperature limiting: No risk of runaway overheating or fire.
No open coils; resistant to dust, humidity, and chemical exposure.
3-Compact & Lightweight Design
High power density (3× more compact than wire heaters).
Flexible integration into ducts, vents, or enclosures.
4-Precision & Stability
Uniform airflow heating (±2°C tolerance).
Silent operation vs. traditional coil heaters.
Pictures
Applications
You can also use our Insulation Air PTC Heater into the following aspects:
1-Electric Vehicles (EV):Battery cabin heating, seat warmers
2-HVAC Systems:Duct heaters, defrosters, air curtains
3-Industrial Drying:PCB/Pharmaceutical drying tunnels
4-Food Processing:Conveyor-belt dehydration, packaging sealing
