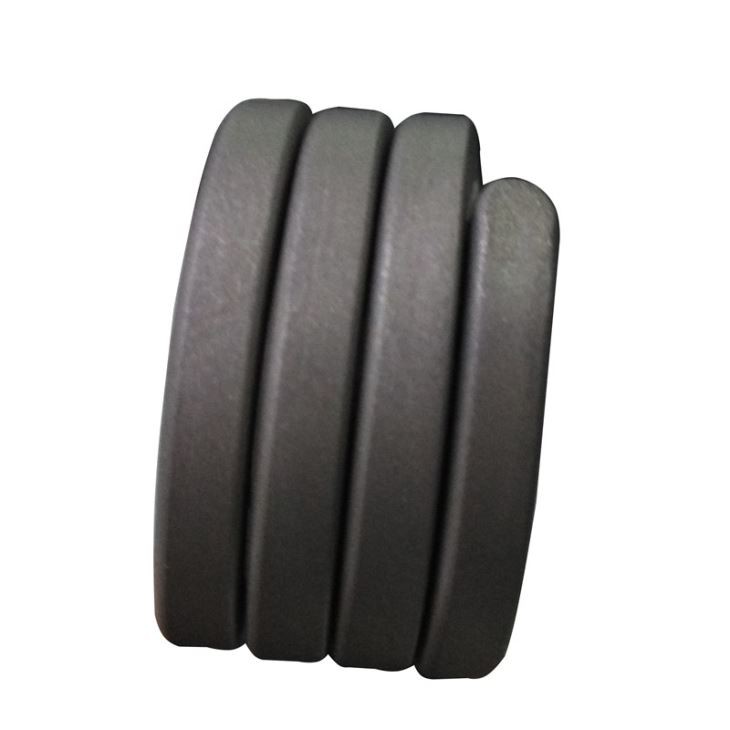

Spring Hot Runner Heater With Thermocouple

The Spring hot runner made by Jaye industry own the features of high working temperature, fast heating, uniform and accurate heating, automatic control of heating area, high insulation resistance, long-lasting, uniform density, non-relaxed inner diameter after heating, high heat conduction. At...
Chat Now

Product Details

The Spring hot runner made by Jaye industry own the features of high working temperature, fast heating, uniform and accurate heating, automatic control of heating area, high insulation resistance, long-lasting, uniform density, non-relaxed inner diameter after heating, high heat conduction. At the meanwhile, even the internal heating material has burnt out, the external of the heater can be reused.



Technical Parameter of the spring hot runner:

1. High-quality shell material: such as SUS321 seamless stainless steel

2. Inner layer material: high-purity magnesium oxide powder, high-quality heating wire, high temperature resistance, oxidation resistance, excellent electrical insulation properties

3. Power cord: 0.75mm international power cord, high standard nickel-plated wire, high conductivity, high temperature resistance, low resistance, safety use.

 HOT RUNNER

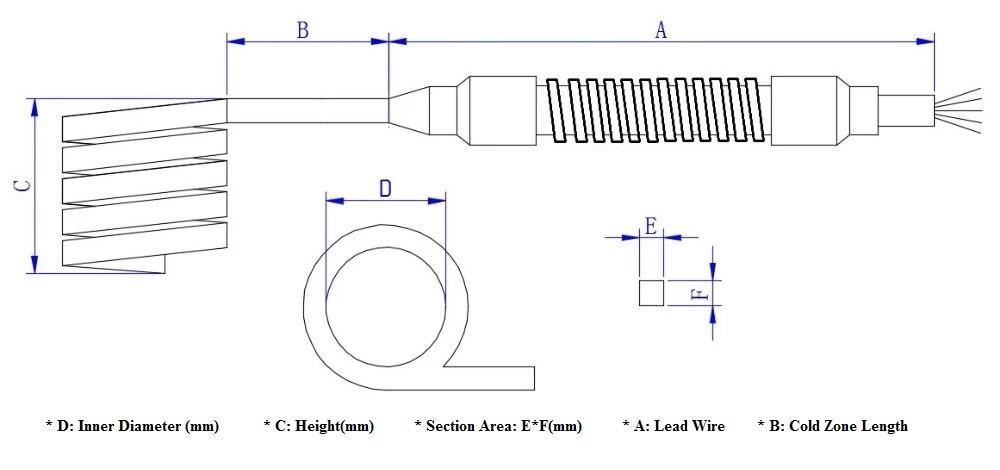

Please specify the following parameters when ordering:

1. Voltage: (200v/380v)

2. Power: (200W-1200W)

3. Cross section: flat, square, round (please tell us the specific size)

4. Thermocouple model: (K type, J type)

5. Inner diameter: (7MM-120MM)

6. Length: (22-300)

7. Number of rings

8. Line length: (standard:1m) can be extended according to customer requirements

9. Wire protection sheath: stainless steel woven mesh, fiberglass, synthetic fiber

10. Cold end: minimum 13mm to 300mm according to customer requirements, fixed length of connection terminal 30mm



Types of the spring hot runner:

A: with heating line(5 lines) : 2 lines are gray(2 power cords)

Temperature-sensing lines: red is positive and blue is negative. (2 temperature-sensing lines) Ground line: yellow-green.

B: without temperature-sensing lines (3 lines): the gray one is heating. Yellow and green are ground lines. (2 power cables, 1 ground cable)



Typical Application of the spring hot runner:

 Plastic mold, blow molding machine, extruder, hot runner system, injection molding, thermoforming machine.

1

Application-hot runner
