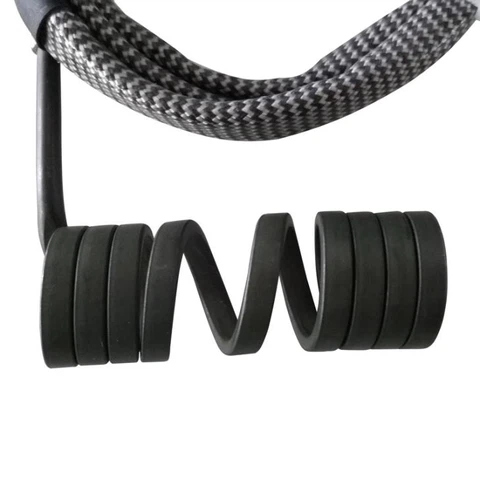

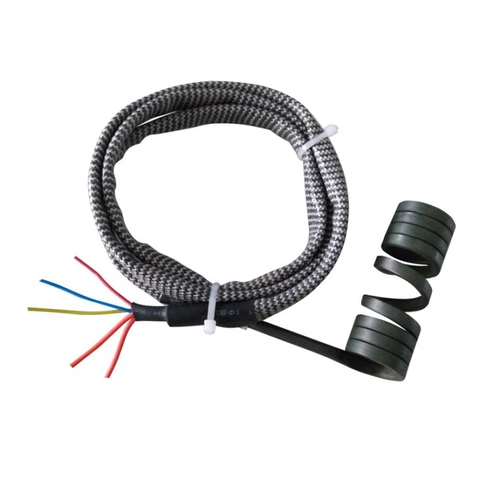

Hot Runner System Heater With Thermocouple

Coil heater for hot runners are made of ​Cr Ni resistance wire which is inner the heating tube with high purity Mgo Powder and applying for faster and efficient heat transfer. This kind of heater is processed through annealed technology so that can be designed in to various shapes to meet the requirements of plastic injection machines. It is mainly used in chemical, electrical, welding machine industry.
Chat Now

Product Details

Coil heater for hot runners are made of Cr Ni resistance wire which is inner the heating tube with high purity Mgo Powder and applying for faster and efficient heat transfer. This kind of heater is processed through annealed technology so that can be designed in to various shapes to meet the requirements of plastic injection machines.

It is mainly used in chemical, electrical, welding machine industry.

timg (12)

Technical Features:

  1. Spring heater specifications: heating bar section: 2.2*4.2/ 3*3/ 3.4*3.4/ 3.5*3.5/4*4, or custom size

  2. Inner diameter of heating ring: 10mm ~ 38mm, height of heating ring: 40mm ~ 200mm

  3. Voltage: 220V ~ 380V Power: 200W ~ 3000W

  4. Built-in thermocouple: J type couple/ K type couple, wire length: 500mm 1000mm 1200mm 1500mm 2000mm

  5. Continuous operating temperature: 1200 degrees Fahrenheit; gap operating temperature: 1500 degrees Fahrenheit

  6. Sheath material: Cr Ni-Steel

  7. Insulation material: Mgo Powder

  8. Weight: final dimension

  9. Choice for lead cable: stainless steel braided, fiberglass braided, silicone sheath, armor sheath, dual terminal, dual terminal teflon insulated

  10. Surface finishing: bright or soft annealed

  11. Insulation resistance: ≥5MΩ

  12. Warranty: 1 year

  13. Advantages: high working temperature, fast heating, long service life, easy installation




When you have any requirements, please just let us know the below information:

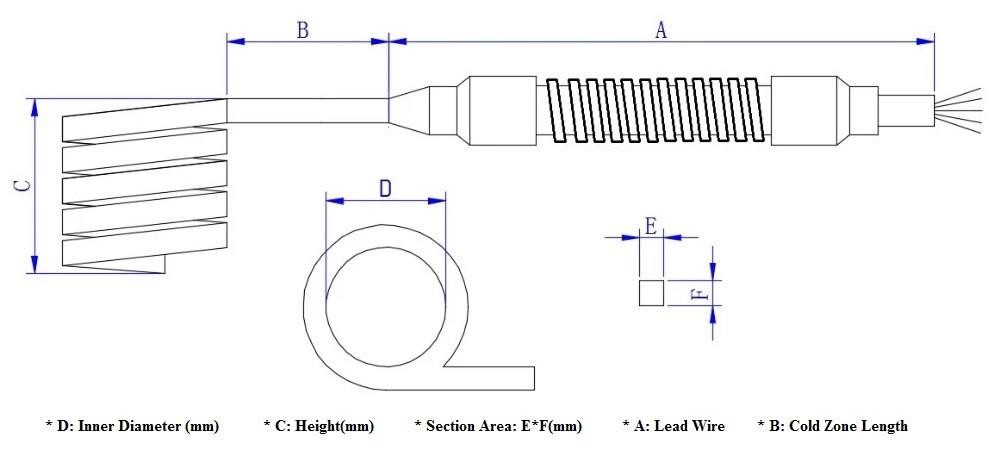

A: Lead wire Length and material; B:Cold zone Length; C: Height; D:Inner Diameter
