Screw Plug Immersion Heaters For Small Tanks

Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of screw plug immersion heaters for small tanks in China, also supports custom service. Welcome to wholesale high quality screw plug immersion heaters for small tanks at competitive price from our factory.

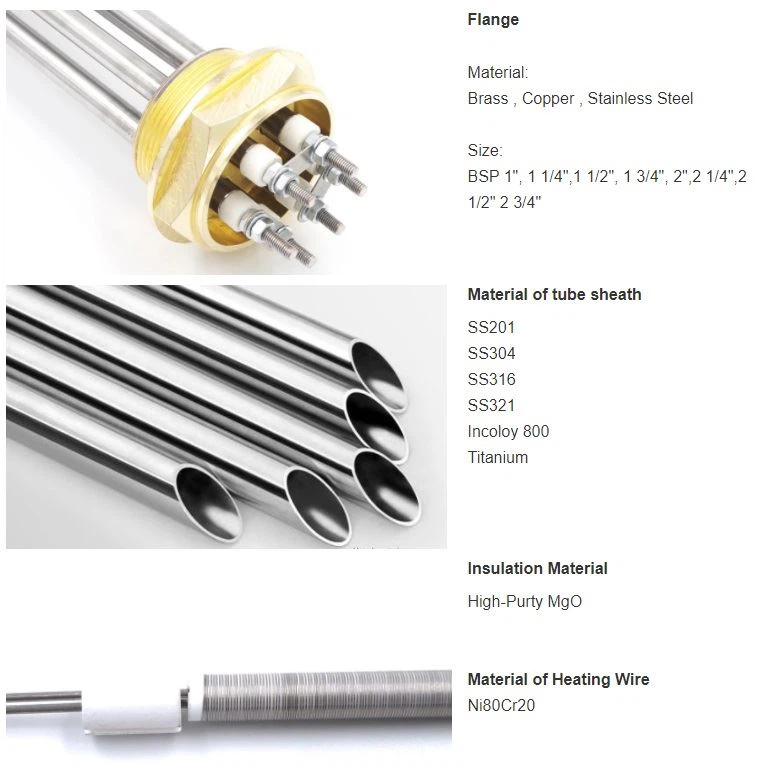

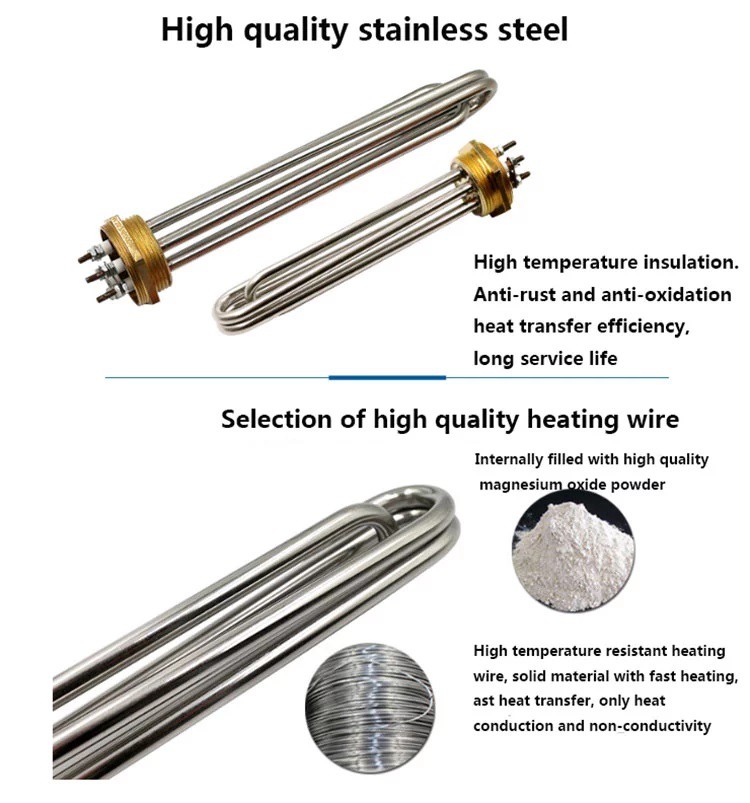

Screw Plug Immersion Heaters for Small Tanks made by Jaye Heater Technology adopting high stainless steel material like SUS304, SUS316L, Incoloy 840, Incoloy800, Etc and also high quality of resistance wires. They are the excellent heating devices installed in a tank or container to heat liquid. The installation method can be divided into groove side installation, flange installation or threaded installation.

Description of Screw Plug Immersion Heaters for Small Tanks

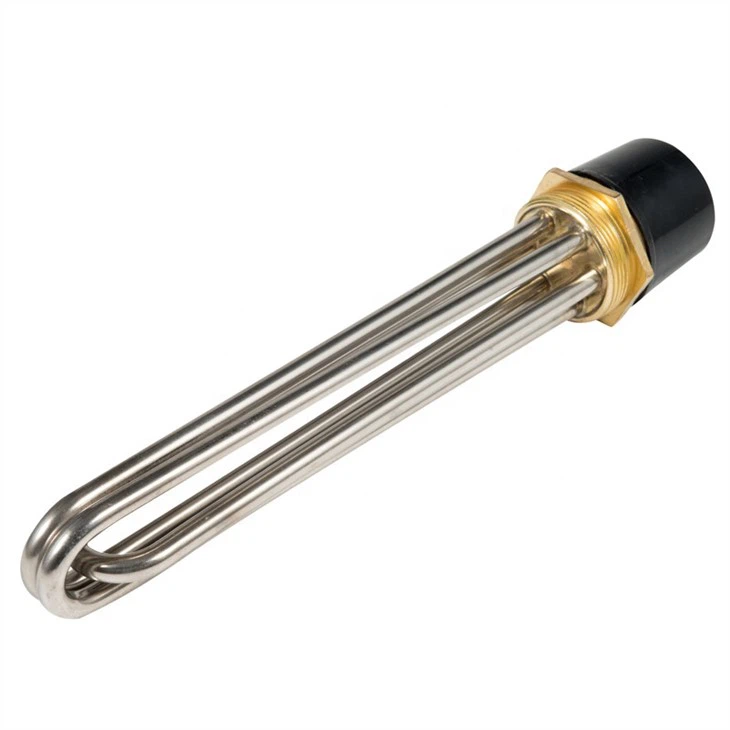

• Screw Plug Immersion Heaters consist of U-shaped tubular elements that are welded or brazed into the screw plug, and also has a junction box for electrical connection.

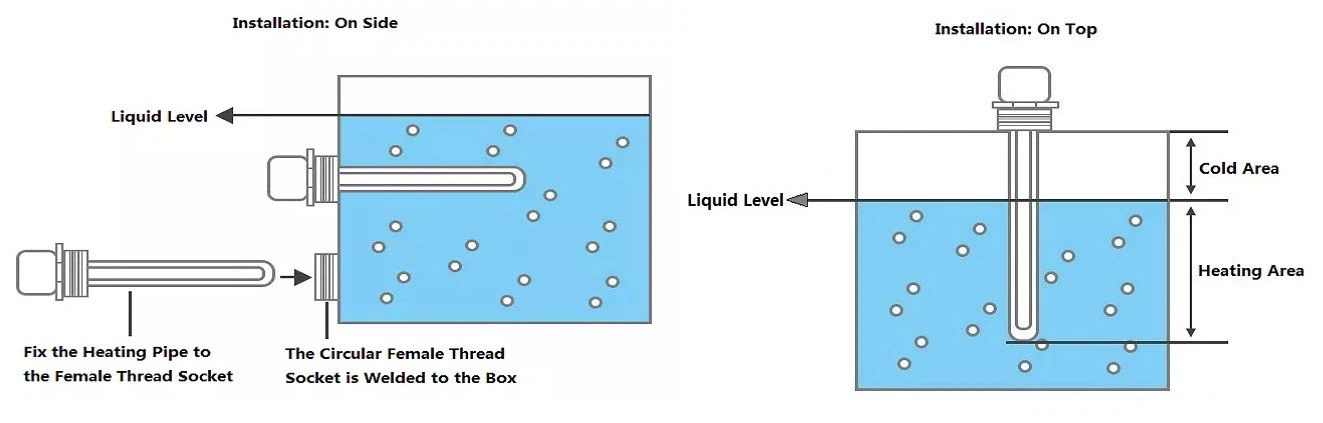

• The screw plug immersion heater is directly screwed through the threaded opening of the tank wall or by means of matched pipe joints, half pipe joints or welding flanges.

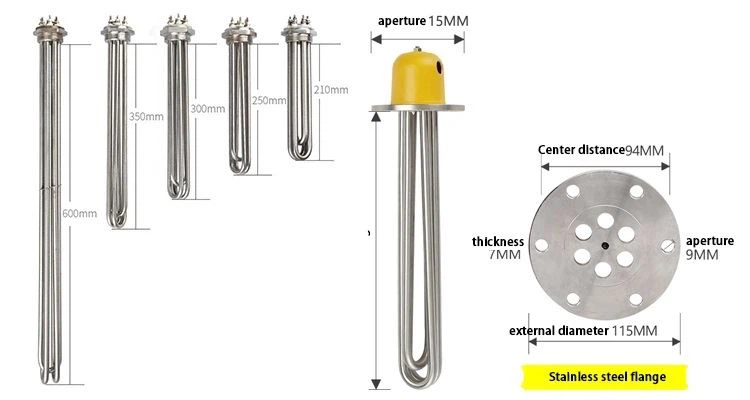

• Screw plug heaters are available in ½", ¾", 1", 1¼", 2" and 2½" pipe threads in several different sizes.

• Due to the wide selection of screw plug sizes, rated power (in kilowatts), voltage, sheath material, terminal fittings and thermostats, these small heaters are ideal for various types of applications.

Application and Feature of Screw Plug Immersion Heaters for Small Tanks

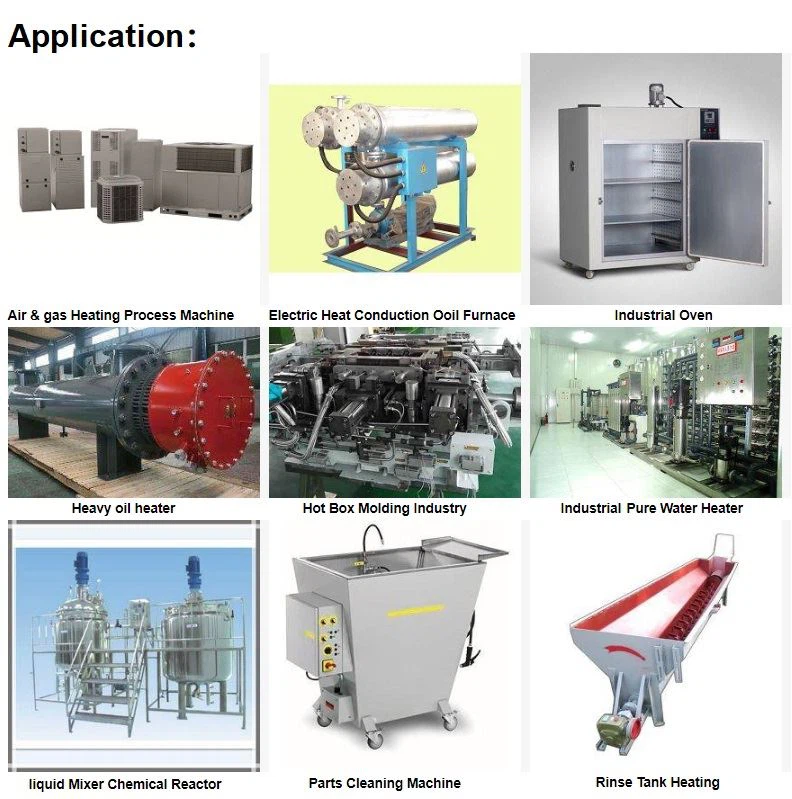

Screw plug immersion heaters are used to heat liquids in various processes. These heaters are particularly suitable for process water heating and frost protection. Various types of oils and heat-conducting solutions can also be heated using these small and easy-to-control devices. The direct immersion method is not only energy efficient, but also very suitable for many applications.

It can be used in various clean water and oil environments. The unique versatility of this design makes it possible to adjust the rated value on-site by connecting only six elements of the heater. In this way, the selection and spare parts storage work becomes very simple, because each type of heater can be used for many different heating applications.

Order Guide of Screw Plug Immersion Heaters for Small Tanks

1. Required voltage: 120V 240V

2. Wattage:

3. Sheath material (required): SUS304, SUS316, Incoloy 840 or Titannium

4. The Size of the Thread: ½", ¾", 1", 1¼", 2" and 2½"

5. Qantity: larger quantity can have more disacount price

6. Technical drawing is the greatest helpful if you can provide.
