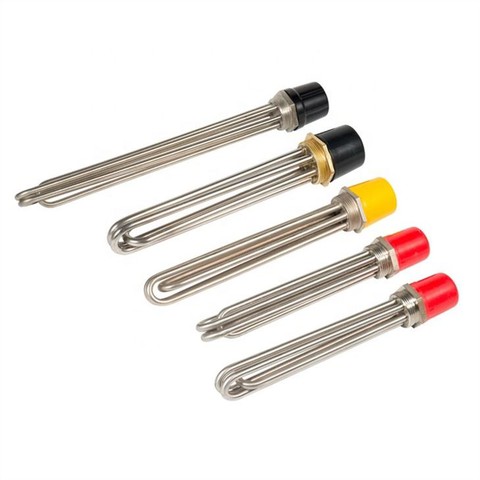

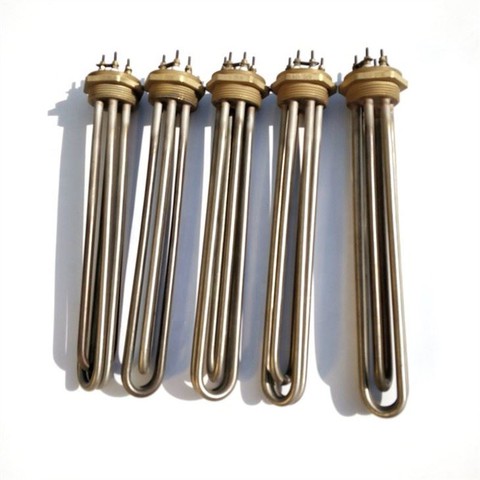

Flange Immersion Tubular Heaters
Product Details
Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of flange immersion tubular heaters in China, also supports custom service. Welcome to wholesale high quality flange immersion tubular heaters at competitive price from our factory.
Flange immersion tubular heater made by Jaye industry as a core heating elements in the heating system of liquid heating, has good sealing performance, among which high density heater is the best ideal product for compressor heating. The product has large output power and can be built-in temperature sensor. The junction box can be designed as waterproof, dustproof, explosion-proof and other types according to user requirements.
The immersion heater is made of electric heating element and flange combination, and is suitable for heating oil, water, viscous liquid, molten material and gas in large, medium and small containers and storage tanks.

Features of Flange Immersion Tubular Heaters:
Use high-quality SUS304 stainless steel seamless pipe, high-quality heating wire and magnesium oxide powder.
2. The maximum operating temperature can reach 850 degrees. The PID control system is used to adjust the output power of the electric heater after calculation according to the temperature sensor signal, and realize the temperature control of the resistive load of the heating element.
3. The heater efficiency is as high as 95%.
4. It is durable and has a service life of up to ten years. When the interlocking protection device is over-temperature or low-liquid level, immediately cut off the heating power to avoid burning out the heating element.
5. The shape and power can be customized.
6. The connection method can adopt flange type or threaded end face seal.

Selection Guide of the Flange Immersion Tubular Heaters:
Application | Sheath Material | Typical Watt | Screw Plug Material | |
Density(w/cm²) | ||||
Water, Freeze protection, Hot water storage, | ||||
Boiler and water heaters, Cooling towers, | Stainless Steel 304 316L | 8w/cm² | Stainless Steel or Brass | |
Solution not corrosive to copper, Food | or Copper | |||
equipment | ||||
Oil, Heavy and non-circulated oils, Solution | Stainless Steel 316L | |||
water, Corrosive solutions, Steam super | 2.5w/cm² | Stainless Steel | ||
310s or Incoloy | ||||
heating | ||||
Light oils , In forced oil circulation loops | Stainless Steel 304 316L | 4.5w/cm² | Stainless Steel | |
Mildly corrosive solutions | Stainless Steel 316L | 8w/cm² | Stainless Steel | |
310s or Incoloy | ||||
Fluid heat transfer media, Tar, High to low | ||||
viscosity petroleum oils, Asphalt, Wax, | Stainless Steel 304 316L | 2.5w/cm² | Stainless Steel | |
Paraffin, Degreasing solvents, Alcohol, | ||||
Molten salt, Solutions not corrosive to steel | ||||
Process water, Soap and detergent | ||||
solutions, Soluble cutting oils, Demineralized | Stainless Steel 304 316L | 4.5w/cm² | Stainless Steel | |
or deionized water |

Advantage of Flange Immersion Tubular Heaters made by Jaye Heater Technology:
Superior Heating Performance: Our Flange Immersion Tubular Heaters are designed to provide efficient and precise heating in various industrial applications. With advanced engineering and high-quality materials, our heaters deliver consistent and uniform heat distribution, resulting in faster heating times and improved process efficiency.
Versatility and Customization: We understand that different industries and applications have unique heating requirements. Our Flange Immersion Tubular Heaters can be tailored to meet specific needs, offering a wide range of customizable options such as wattage, voltage, sheath material, flange size, and configuration. This flexibility allows our customers to optimize their heating processes and achieve the best performance.
Robust and Durable Construction: Our Flange Immersion Tubular Heaters are built to withstand demanding industrial environments. The heaters feature rugged construction with high-quality materials and precision engineering, ensuring long-lasting performance even in corrosive or harsh conditions. This durability reduces downtime and maintenance costs, providing a reliable heating solution for continuous operations.
Easy Installation and Maintenance: We prioritize customer convenience, and our Flange Immersion Tubular Heaters are designed for hassle-free installation and maintenance. The flange mounting system enables straightforward integration into existing systems, minimizing downtime during installation. Additionally, routine maintenance tasks such as cleaning or replacing heating elements are simple and efficient, further reducing operational disruptions.
Energy Efficiency and Cost Savings: Our Flange Immersion Tubular Heaters are engineered for energy efficiency, resulting in reduced operating costs. The direct immersion design ensures maximum heat transfer to the medium, minimizing heat loss and energy waste. By optimizing heating processes and minimizing energy consumption, our heaters enable significant cost savings over time.
Order Guide:
Order Guide:
If you have an order or enquiry, please let us know the below information:
The size of the flange thread.
The diameter and length of the tube.
The material of the pipe or working condition.
Voltage and watt needed
The quantity of the tubular heater need.
If you have a technical drawing would be great helpful for us to quick check the cost.
