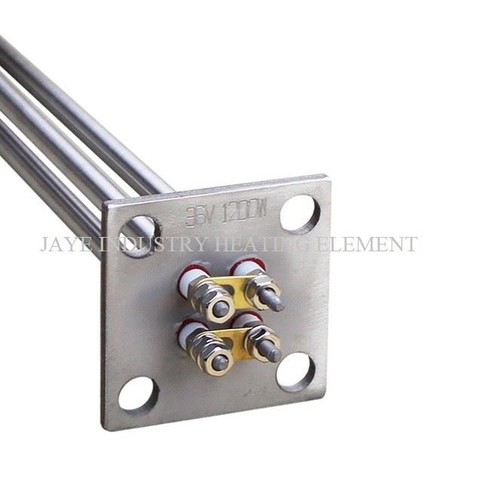

Electric Immersed Flange Heater For Liquid Heating

Flange type heating tube is to weld or screw multiple tubes to a flange and then forming a high-power, intergrally foldable heater. There is a temperature measuring sleeve in the heater, and a thermocouple can be inserted in it, which make an heater with controllable temperature. It can prevent dry burning and effectively extend the service life.
Chat Now

Product Details

Flange type heating tube is to weld or screw multiple tubes to a flange and then forming a high-power, intergrally foldable heater. There is a temperature measuring sleeve in the heater, and a thermocouple can be inserted in it, which make an heater with controllable temperature. It can prevent dry burning and effectively extend the service life.



There are two connection methods, one is screw connection, and the other is flange connection. The common specifications is DN50mm-DN400mm.



Technical Parameters:

   (1) Voltage: 220V, 380V

   (2) Heating tube diameter: Φ8.5-Φ32

   (3) Heating pipes: SS304 stainless steel, SL3316 stainless steel, carbon steel

   (4) Main power: 3KW-150KW

   (5) Working pressure: 0.6MPa-1.6MPa

   (6) Material of flange and thread head: stainless steel, carbon steel



This type of heaters are mostly used in Semiconductor manufacturing, hospital appliances, cable machinery, high-temperature heating furnaces, plastic machinery, molds and sealing machines, other equipment that need heating.



Product Features:

Small size, customized appearance and power, durable, it can be used up to 10 years and the heating efficiency up to more than 95%. Fast heating, anti-electric, heat-resistance.



Jaye Industry provides professional customized design for your demands of immersed flange heater to meet your equipment working. If you are interested, do not hesitate to let us know.

Application-Flange heater

Hot Tags: electric immersed flange heater for liquid heating, China, manufacturers, suppliers, factory, customized, electric, high quality

Packing & Delivery

Quality-Flange Heater
