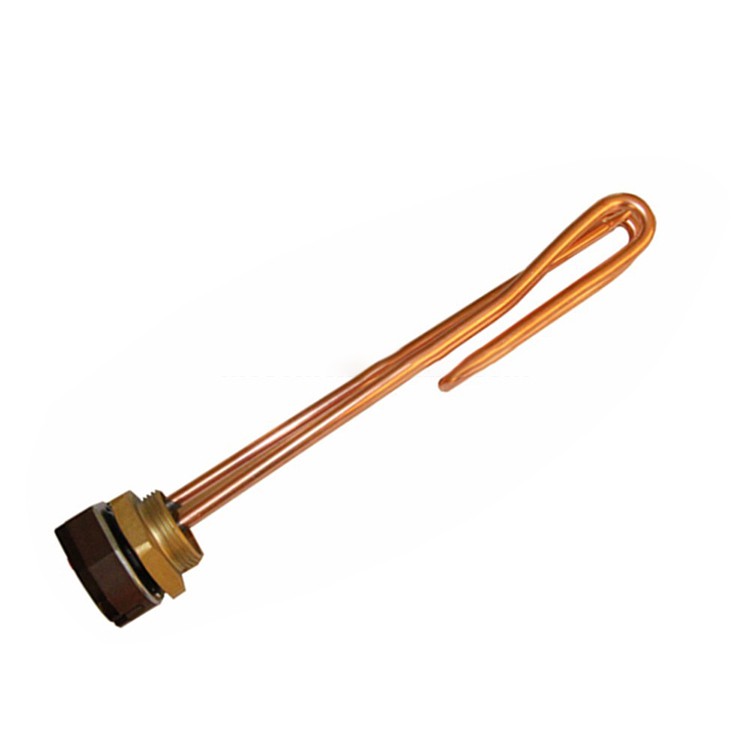

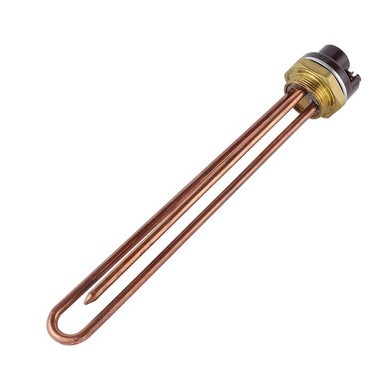

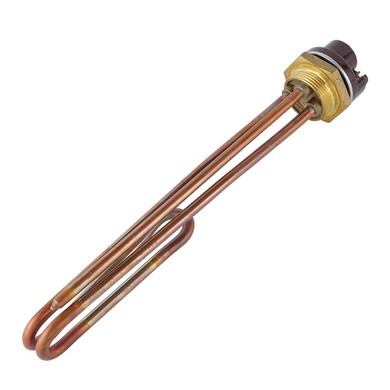

Copper Immersion Water Heater

Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of copper immersion water heater in China, also supports custom service. Welcome to wholesale high quality copper immersion water heater at competitive price from our factory.

copper immersion water heater  core principle involves Joule heating: an electric current passes through a high-resistance element embedded within the copper sheath. The exceptional thermal conductivity of copper rapidly transfers this heat to the surrounding fluid, ensuring efficient and localized temperature control

While copper is known for its conductivity, its advantages in specialized industrial contexts are paramount:

• Superior Thermal Conductivity (~400 W/m·K): Copper transfers heat significantly faster than stainless steel (~15 W/m·K). This results in a lower sheath surface temperature for the same wattage, reducing the risk of scorching sensitive fluids and improving overall energy efficiency.
• Antimicrobial Properties: Copper ions are naturally biocidal. This is a critical advantage in applications like pharmaceutical water systems, food processing, or potable water heating, where inhibiting bacterial growth like Legionella is a non-negotiable requirement.
• Enhanced Corrosion Resistance in Specific Media: Copper performs exceptionally well in closed-loop soft water systems, certain glycol solutions, and non-acidic environments where stainless steel might be prone to pitting.
• Superior Formability and Malleability: Copper can be easily bent and shaped without compromising its structural integrity. This allows JAYE-HETAER to create complex custom geometries (e.g., tight-radius coils, conformal shapes) to fit unique tank designs and maximize heat transfer surface area.
• Solderability and Ease of Integration: Copper sleeves and fittings can be directly soldered or brazed into existing copper plumbing systems, common in many industrial and laboratory setups, ensuring a seamless and robust installation.

When procuring a custom copper immersion heater, engineers must define these parameters:

• Power Rating (Watts/kW): Dictated by the fluid volume, desired temperature rise (ΔT), and required heat-up time.
• Voltage & Phase: Standard (e.g., 120V, 240V) or industrial (e.g., 480V, 3-Phase) supply.
• Sheath Material & Gauge: High-purity C12200 (DHP) copper is standard. The gauge/thickness is chosen based on corrosion expectations and mechanical strength requirements.
• Watt Density (W/in²): A crucial, often overlooked parameter. Low watt density (<30 W/in²) is essential for heating viscous fluids or those prone to fouling to prevent premature burnout.
• Shape & Dimensions: Custom bends, overall length, immersion length, and active heating length.
• Terminal Housing (Fitting): Material (brass, stainless steel), thread type (NPT, BSP), and ingress protection (IP) rating.

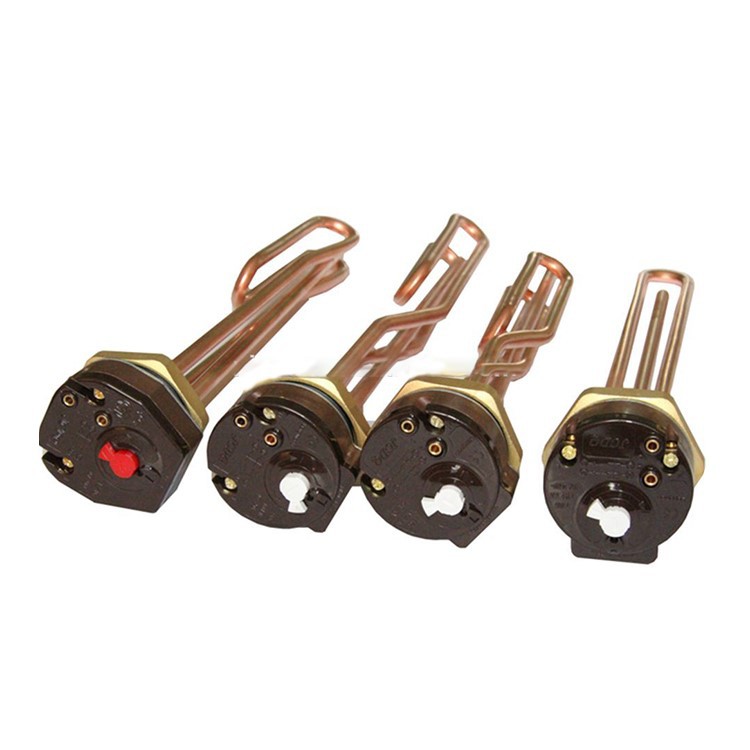

• Thermostat & Controls: Compatibility with capillary thermostats, digital controllers, or SCR power controllers for precise temperature modulation.

Q1: When should I choose a copper immersion heater over a stainless steel one?
A: The choice is application-driven. Choose copper for its maximum thermal efficiency in soft water, for its antimicrobial benefits, or when you need complex custom shapes. Opt for stainless steel (particularly 304 or 316) when heating highly acidic/alkaline fluids or in applications where copper ions could contaminate the process.

Q2: We have a tank with a specific, irregular shape. Can the heater be customized to fit?

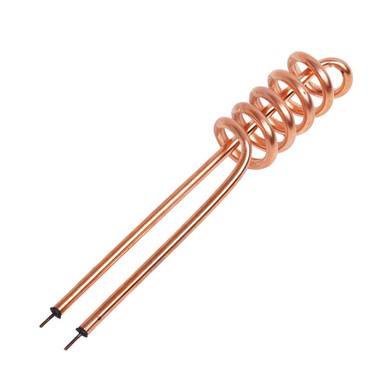

A: Absolutely. This is JAYE-HETAER's specialty. We engineer heaters in "U", "L", "L" , annular, and serpentine configurations. By providing a detailed tank diagram, we can design a heater that maximizes heat transfer surface area and ensures uniform temperature distribution, avoiding cold spots.

Q3: What is the lead time for a custom-designed heater like this?
A: Lead times vary based on complexity but typically range from 2 to 5 weeks. This includes the engineering review, prototyping (if required), manufacturing, and quality testing. We recommend engaging with our technical team early in your project planning phase.

Q4: How do we prevent scaling and corrosion to ensure a long service life?
A: Scaling is mitigated by operating at an appropriate watt density and using softened water. For corrosion, the key is material-fluid compatibility. We provide guidance, but a fluid analysis is always recommended for aggressive environments. Regular inspection and maintenance are essential for all industrial heating elements.
