Ceramic Bobbin Tube Furnace Radiant Heater
Product Details
Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of ceramic bobbin tube furnace radiant heater in China, also supports custom service. Welcome to wholesale high quality ceramic bobbin tube furnace radiant heater at competitive price from our factory.
Products Description
Ceramic Bobbin Tube Furnace Radiant Heater uses advanced ceramic as the heating element, offering excellent temperature resistance, corrosion resistance, and thermal efficiency. It works by passing current through the ceramic, generating heat that is emitted as far-infrared radiation to efficiently warm the target object.
Product Parameters
|
Product Name
|
Ceramic Bobbin Tube Furnace Radiant Heater | |||
|
Voltage
|
30V~220V/ 380V/Customized
|
|||
|
Power
|
1KW~20KW/Customized
|
|||
|

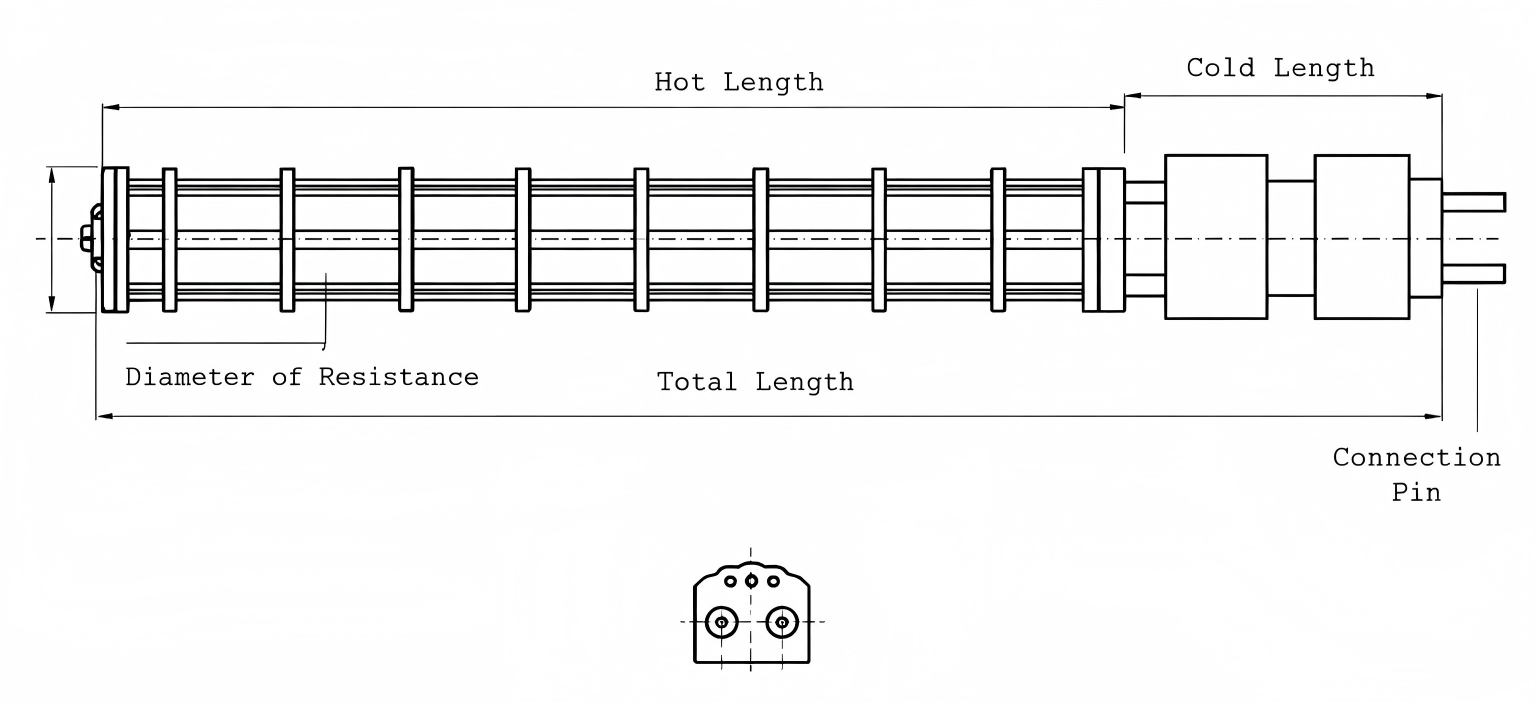

Total Length(mm)
|
Up to 300mm
|
|||
|
Diameters(mm)
|
50-214mm/Customized
|
|||
|
Resistance
|
Cr20Ni80, Cr25Al5, Cr27Al7Mo2, HRE
|
|||
|
Cover Material
|
SUS304, SUS316, SUS316L, SUS310S, SUS310s, Centrifugal Casting Tube, SiSiC tube
|
|||
Products Features
- High Efficiency & Energy Saving: Far-infrared radiation directly heats the target object, ensuring excellent thermal efficiency and noticeable energy savings.
- Rapid Heating: The ceramic heating element has low thermal inertia, allowing the heater to quickly reach the desired temperature.
- Uniform Temperature: Far-infrared radiation penetrates effectively, providing consistent heating and preventing local hotspots.
- Long Service Life: Ceramic materials resist high temperatures and corrosion, resulting in extended service life and lower maintenance costs.
- Environmentally Friendly: No open flames, minimal noise, and zero harmful gas emissions-compliant with environmental standards.
- Safe & Reliable: Equipped with safety features such as overheating protection and leakage prevention for secure operation.
Main Application
Industrial Heating: Ideal for metal heat treatment, plastic processing, food and wood drying, electronics manufacturing, and automotive production.
Building Heating: Suitable for large spaces such as factories, warehouses, and gymnasiums.
Agricultural Heating: Perfect for livestock and poultry house temperature control, incubation, and other breeding applications.
Order Guidance
To Place an Order, Please Provide the Following Information:
Voltage – e.g., 110V, 220V, 380V, or custom requirements
Power Rating – specify the required wattage
Diameter – for the ceramic plate
Length – including details of heating zones and heat preservation zones
Drawings or Samples – any available technical drawings or physical samples
