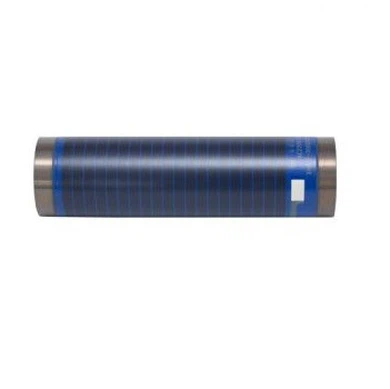

Tubular Thick Film Heaters

Tubular thick film heaters are one of the most popular heating elements in the thick film heating series, which are mainly widely used in the instant water heating, like the Water dispenser, electric faucet, electric water heater, coffee maker, etc. Tubular thick film heaters are manufactured in...
Chat Now

Product Details

Tubular thick film heaters are one of the most popular heating elements in the thick film heating series, which are mainly widely used in the instant water heating, like the Water dispenser, electric faucet, electric water heater, coffee maker, etc.3kw-Water-Flow-Heating-Thick-FILM-Stainless (2)

 3kw-Water-Flow-Heating-Thick-FILM-Stainless (3)

Tubular thick film heaters are manufactured in a completely different way from traditional heating elements. Thick film heaters consist of a stainless steel substrate, printed with an insulating layer (in accordance with the insulation strength requirements), followed by a layer of resistance paste, followed by a contact layer and a connecting layer, all of which are covered with insulation at the top (only protection against mechanical damage is provided).



In the whole production process, the product is prepared in a room with high air purity grade. Separate layers are applied through screen printing, and each layer is sintered immediately after drying, so as to ensure the ultimate quality of our products.



Therefore, the precise tubular thick film heaters have the following characteristics:

1. Rapid heating up;

2. Extremely low heat capacity;

3. Small temperature fluctuation;

4. Long service life. The heating efficiency is as high as 97%.

 1

Jaye have extremely strickly quality control management sysytem, all the heaters and heating elements must be fully tested before getting out of our factroy, we focus n providing value for our customers by manufacturing or helping to design the best thick film heating solution based on customer’s specific requirements. If you have any requirements, pleaser just contact us.

Application-thick film heater

Hot Tags: tubular thick film heaters, China, manufacturers, suppliers, factory, customized, electric, high quality

Packing & Delivery

Quality-Thick Film Heater
