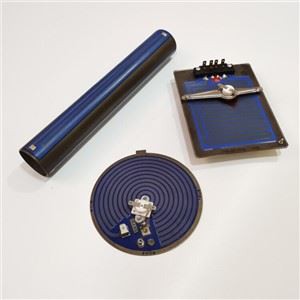

Thick Film Heating Tubes

Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of thick film heating tubes in China, also supports custom service. Welcome to wholesale high quality thick film heating tubes at competitive price from our factory.

The high-efficiency heating characteristics of the thick film heating tube make it stand out among the heating products. It uses the international advanced HOS new technology and uses screen printing process to print insulating media, conductors, and heating resistors on the ss substrate. Special insulation encapsulation and other materials, new components made by high temp sintering, have light weight, fast heating speed, waterproof and moisture-proof, no odor, energy saving and environmental protection, high mechanical strength, vibration resistance, safety and reliability Etc.

Features:

1. The power density is high. It is generally 40~60W/cm2, which is nearly ten times that of alloy electric heating materials in household products.

2. The response speed is fast, its module starts up very quickly, and the surface speed of the resistive  layer can reach 200~300℃/sec, which is not achieved by electric heating alloy components. This advantage enables them to be applied to appliances that require rapid heating, such as electric water heaters, and electric kettles.

3. High mechanical strength, strong resistance to vibration and thermal shock. It does not produce high-temp brittleness like alloy materials, and its layer and the ss substrate have a strong bonding force.

4. The appearance is compact and the temp zone is controllable. The components have flat and ultra-thin dimensions, and are easy to install and use. The resistance track can be designed at will, so that the temp field (uniform temp or non-uniform temp) can be controlled according to the needs of the appliance, and there is no blind zone.

5. Traditional electric alloy components are easy to oxidize during use, and their service life is generally short, while can reach more than 10,000 hours.

6. Its own heat capacity is small, and its efficiency can reach 85-95%.

7. Environmental protection: The material used to prepare this component does not contain toxic ingredients and heavy metal ions, and it fully complies with ROHS standards.

8. Safety: The insulation efficiency is strong and it can meet the withstand voltage requirements of various electrical products.
