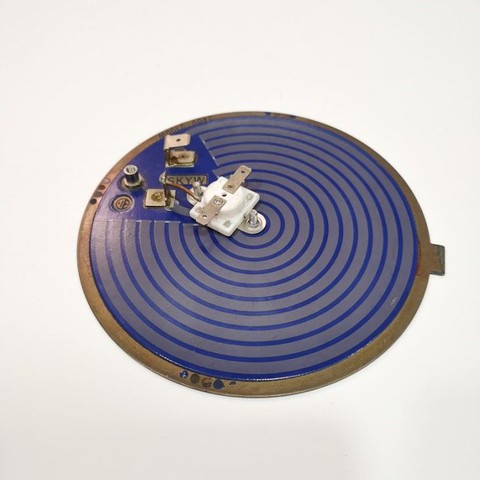

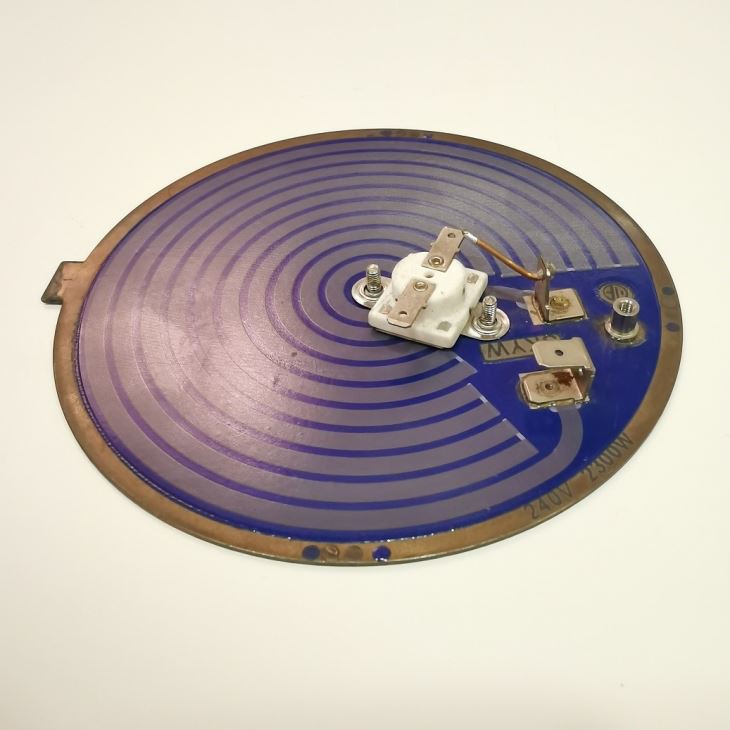

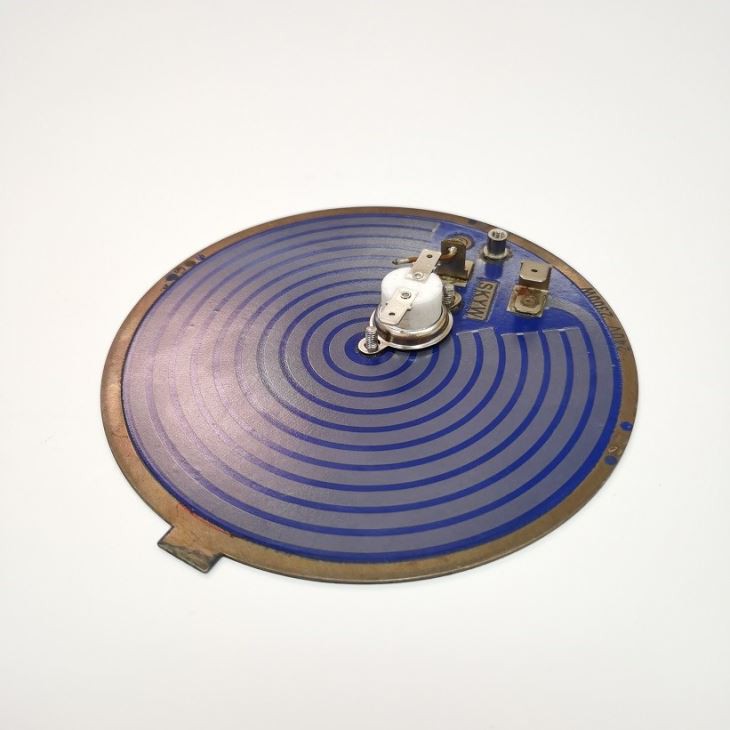

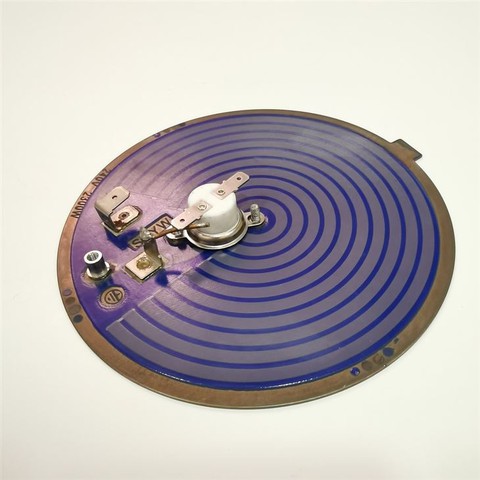

Stainless Steel Thick Film Kettle Plate Heater

Stainless steel thick film kettle plate heater made by Jaye have the stable sheet resistance, and good printing performance, adopts advanced thick film heating technology to print insulating layers, thick film heating resistors, conductors, insulating protective glaze and other new composite...
Chat Now

Product Details

Stainless steel thick film kettle plate heater made by Jaye have the stable sheet resistance, and good printing performance, adopts advanced thick film heating technology to print insulating layers, thick film heating resistors, conductors, insulating protective glaze and other new composite materials on high-temperature sintered new heating elements. has the feature of rapidly raise temperature, high heat efficiently, technical mature, product reliability, thermal shock resistance.

0 (2)

For the Stainless steel plate, we have different materials can be choosed by our customer, or we can also customized based on request:

SUS304
Dimension : diameter:10 - 250mm,Thickness: 1.2 - 2.5mm
Details of contents : Ni 8.0~10.5, Cr 18.0~22.0, Mn 2.0MAX, Fe Bal。
Proper environment : Air heating,Kettle heating plate。
Limit service temperature(UL) : 400°C or less。

SUS430
Dimension : diameter:10 - 250mm,Thickness: 1.2 - 2.5mm
Details of contents : Ni ≦ 0.60, Cr 16.0~18.0, Mn 1.0MAX, Fe Bal。
Proper environment : Air heating,Kettle heating plate。
Limit service temperature(UL) : 400°C or less。


Thick film kettle plate heaters are a compact, lightweight solution that maximizes heating efficiency. JAYE can offer a range of options including leads, accessories, and thermistors, which can be customized for your application.

Jaye takes "continuous efforts, wholeheartedly and continuous improvement" as the quality policy, and carries out comprehensive quality assurance awareness and professional skills training for each position, and implements strict quality control management for all key processes, All elements such as equipment and personnel are continuously improved to ensure high quality and high stability products and services are provided to customers.

 Application-thick film heater

Packing & Delivery

Quality-Thick Film Heater
