Printed Heating Element
Product Details
Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of printed heating element in China, also supports custom service. Welcome to wholesale high quality printed heating element at competitive price from our factory.

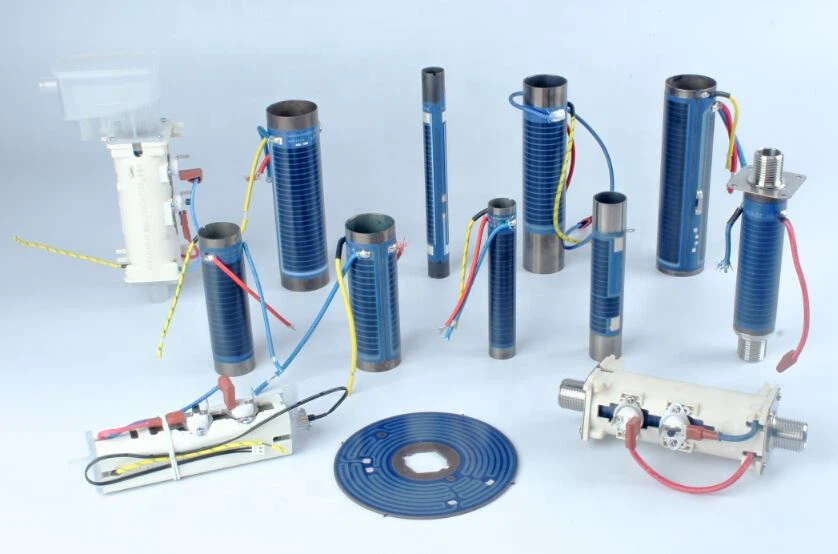

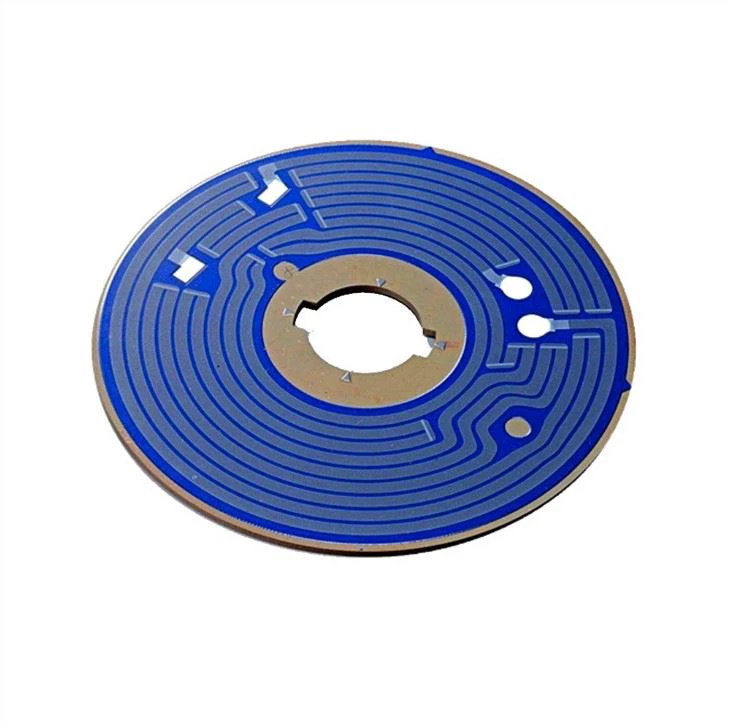

Printed Heating Element

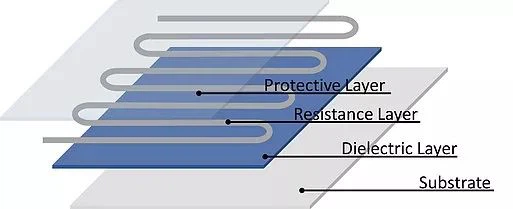

Printed heating elements are generally also known as thick film heaters. Using thick film technology to provide maximum temperature response in a small package. By printing the heating material directly on the substrate, it is equivalent to directly heating the substrate, reducing intermediate conduction loss and having a thermal efficiency of 98.9%. Electric energy is perfectly converted into heat energy, which is low-carbon and environmentally friendly, and there is no carbon dioxide emission during use. Its heating speed is 5 times faster than the traditional resistance wire, and the heating body can heat up to 150-300 degrees in 3 seconds after starting up. The advantage of its heating speed is therefore applied to equipment that needs instant heating such as water dispensers.
Technical parameter reference
1. Rated voltage: 100V-240V;
2. Rated power: 450W -3000W;
3. Product life: 50000H
Features
1. Good thermal uniformity
2. Simple structure and stable performance
3. Adapt to laser welding and sealing
Design requirements
The size, voltage, power, function, etc. can be designed and produced according to customer requirements.
