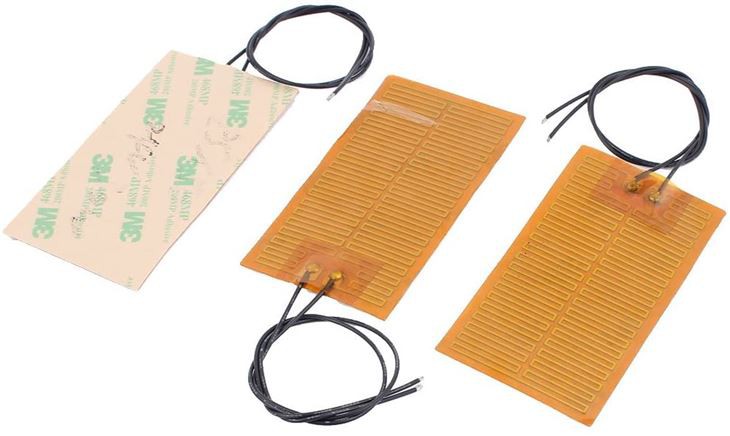

Polyimide Heating Film For Electrical Heating Appliance

Polyimide Heating Film For Electrical Heating Appliance

The polyimide heating film also called PI electrothermal film. Polyimide is the better insulation material for polyimide heating film in the world.The polyimide heating film is made of polyimide film as the outer insulator, and metal foil and wire as the inner conductive heating element.
Chat Now

Product Details

The polyimide heating film also called PI heating film. Polyimide is the better insulation material for polyimide heating film in the world.The polyimide heating film is made of polyimide film as the outer insulator, and metal foil and wire as the inner conductive heating element.



Products Benefits:

It has excellent mechanical properties, electrical properties, chemical stability, high radiation resistance, high temp. resistance, low tempe. resistance (-269℃~400 ℃). The polyimide of the power battery heating sheet is one of the organic polymer materials with better comprehensive performance. Its high tempe. resistance can reach above 400℃, long-term use temp. range -200~300℃, some have no obvious melting point, high insulation performance, dielectric constant 4.0 at 103 Hz, dielectric loss only 0.004~0.007, belonging to F to H.

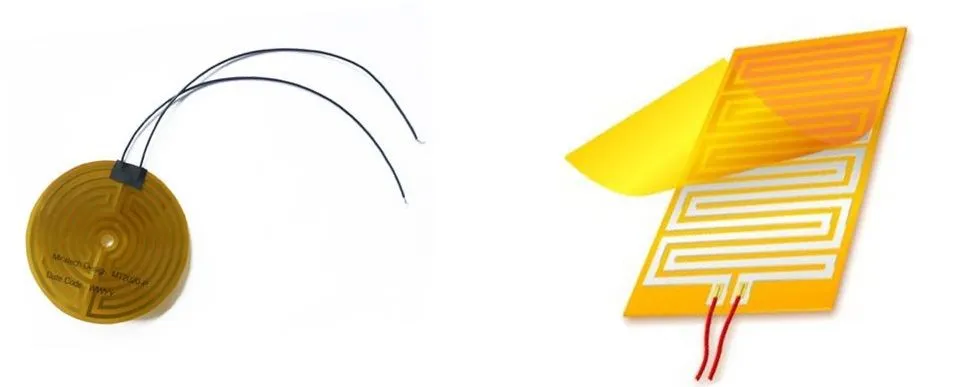

 00

Technical Parameter of Polyimide Heating Film:

Material: polyimide, foil

Net Weight: 45G

Measurement: 120*65mm(Length*Wideth)

Cable Wire Length: 30cm

Input Voltage: 48V

Wattage: 100W

Resistance: 15 OHM

Working Temp.: 140C

Max Temp. Range: 200C-220C

Thickness: <=0.2mm

(Note: we can make based on clients personal requirements also.)



Polyimide heating film has an excellent oil resistance, temp. resistance and low dielectric loss. It can be used as cable insulation materials, heat preservation materials, radiation protection materials, record carrier materials, etc., especially in the flexible printed circuit board industry. It is suitable for aerospace, military, mobile communications, notebook computers, computer peripherals, PDAs, digital cameras , electrical instruments fields and becomes an irreplaceable important material in the electric power, electric power, microelectronics and precision machinery industries.

Application-Thin film Heater

Hot Tags: polyimide heating film for electrical heating appliance, China, manufacturers, suppliers, factory, customized, electric, high quality

Packing & Delivery

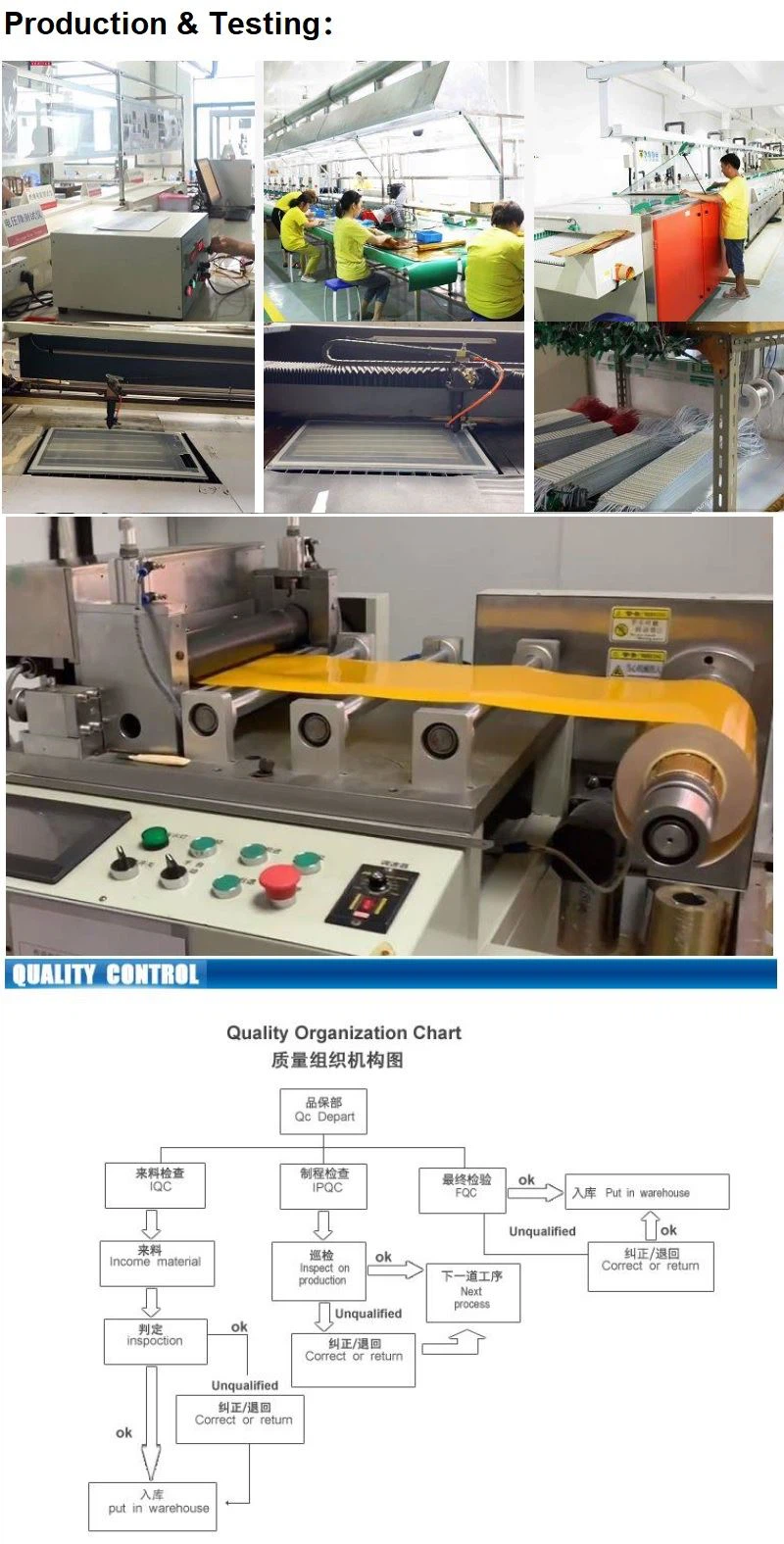

Quality-Thin film heater
