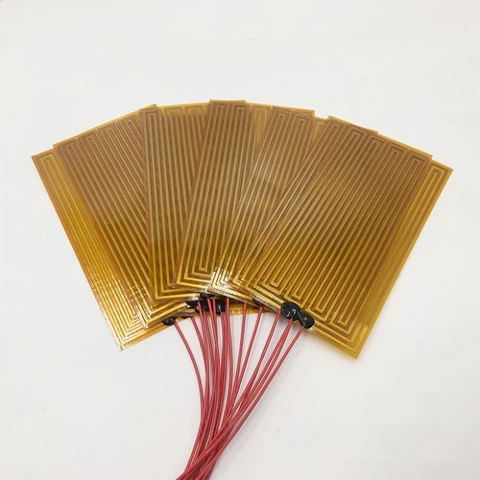

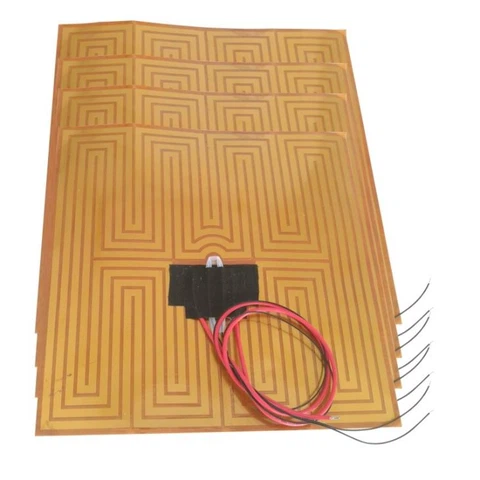

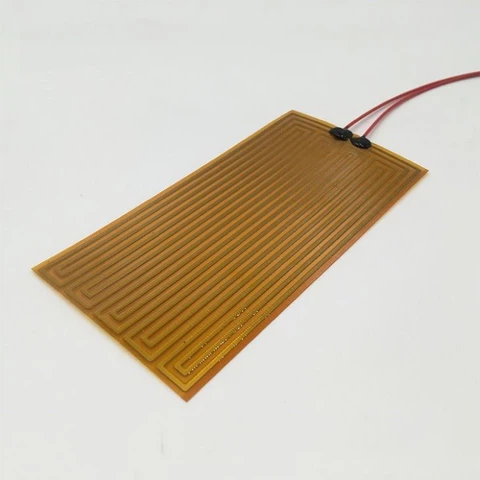

Kapton Polyimide Thin Film Heating Element

Kapton Polyimide thin film Heating element made by Jaye industry has excellent high and low temperature resistance, electrical insulation, adhesion, radiation resistance and dielectric resistance. It can be used in the temperature range of - 269 ℃ - 280 ℃ for a long time, and can reach a high...
Chat Now

Product Details

Kapton Polyimide thin film Heating element made by Jaye industry has excellent high and low temperature resistance, electrical insulation, adhesion, radiation resistance and dielectric resistance. It can be used in the temperature range of - 269 ℃ - 280 ℃ for a long time, and can reach a high temperature of 400 ℃ for a short time.

 00

Product features:

  1. Selection range of resistor thickness: 0.03-0.1mmt, PI film thickness: 0.05-0.1mmt            2. Extremely soft, with a minimum bending radius of only about 0.8mm

    3.The improved PI film has better thermal conductivity, and its structure is made of two polyimide films by high temperature hot pressing resistor;

    4.Customize products of various power, specification and size, and installation mode as required, and use them to cover the heat receiver.

    5.The resistance piece is etched according to the designed resistance value, with good heating uniformity.

    6.It can be designed and customized according to the shape, size, power and voltage requirements.

    7.It can be easily integrated with thin heat insulation materials and provide light electric heating elements with heat insulation layer.

    8.Single side back glue can be selected for quick installation.

    9.RoHS, CE, UL compliant.



The Kapton Polyimide thin film Heating element can be customized on any shape and size, and technical requirements, adhesive and thermostat are also available.
