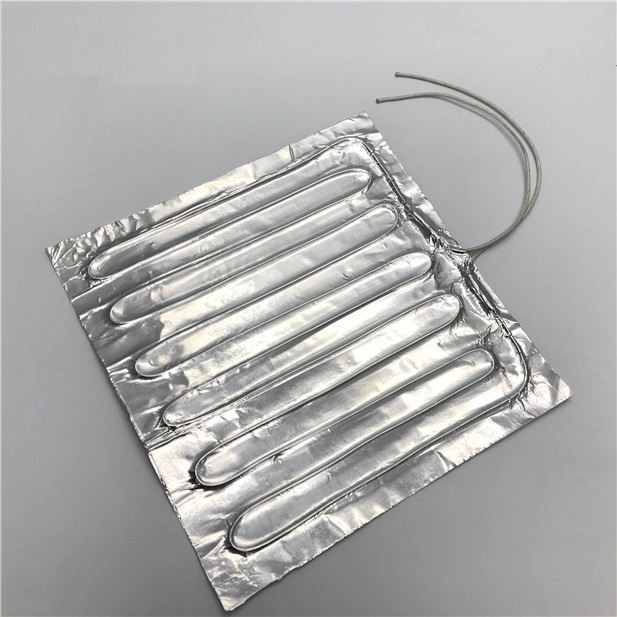

The structure of the aluminum foil heater is that a heater made by fusing PVC heating wire to the surface of heating film. The bottom surface can be designed with its own pressure-sensitive adhesive, which is convenient to stick to the object you want to heat. Or, a heater formed by placing a silicone heating wire between two pieces of aluminum foiled sheet with pressure-sensitive adhesive. Jaye Industry provides two different heating wire for customers to choose heater sheet which suitable for their actual needs of equipment heating. This heating film is suitable for heat preservation of daily necessities, such as food warmer box.
Technical Specifications:
There are 2 types of heating element available:
Shape&Dimension: it is determined by customers requirements
Voltage: it is determined by customers requirements
Power: the PVC heating element≤13W/M; the silicone heating element≤50W/M
The tolerance range of power: ±5%
Normal Insulated Strength: 2000V 3S No breakdown or flashover
Normal Insulated Resistance: ≥100MΩ
Leakage Current: ≤0.2mA/m
Instructions:
Put the heating sheet directly into the insulation box. Small heating sheet: put the bottom; long heating sheet: around the circumference (the heating sheet can be folded and bent at will)
Then, cover the warmer box and electrify 3--5 minutes, the inside of the warmer box will be hot. You can directly press on the heating film: fast food lunch, hot food, food that needs insulation, etc. The heating film is anti-pressure and waterproof.
