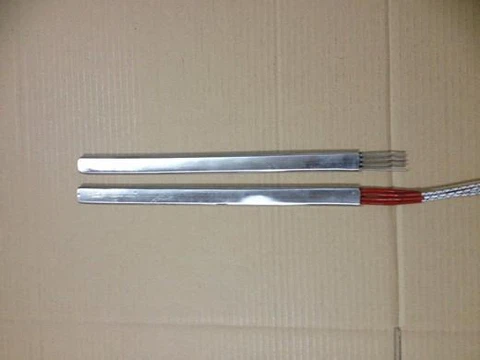

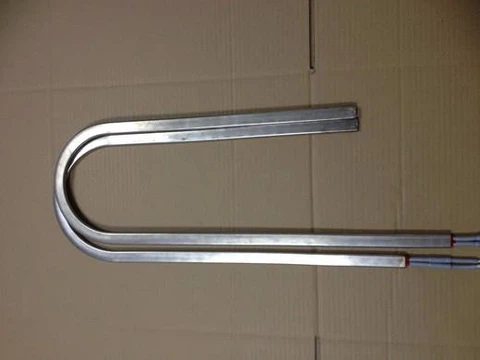

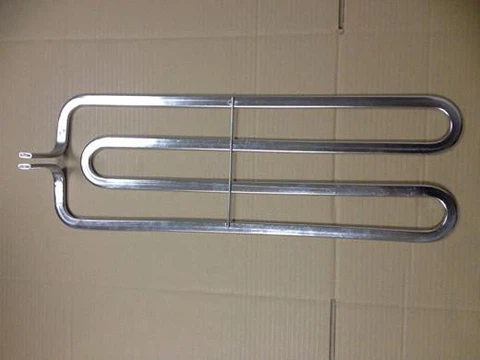

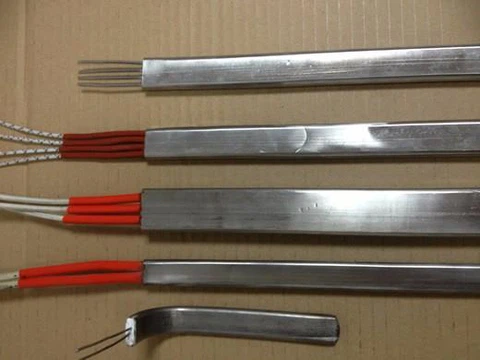

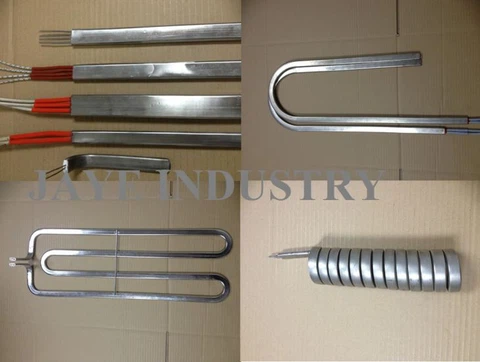

Flat Tubular Heating Element

The basic structure of the flat tubular heating element that made by Jaye industry is: placing spiral electric heating wires on both sides of the center position of the metal protection tube, and using a specially designed fully automatic non-support powder feeder, which filling the...
Chat Now

Product Details

The basic structure of the flat tubular heating element that made by Jaye industry is: placing spiral electric heating wires on both sides of the center position of the metal protection tube, and using a specially designed fully automatic non-support powder feeder, which filling the high-temperature resistant, good insulation, and high thermal conductivity magnesium oxide into the protective tube evenly, so that the heating wire does not move, and then the protective tube is pressed into a flat shape by a full-automatic continuous contracting pipe machine, and the air between the magnesium oxide powder is exhausted. In that way, it can prevent the heating wire to oxide, and it can also transfer the heat from the heating wire to the heated object. At the same time, it has a large contact area, fast heating speed, high heat transfer efficiency, saving space, large power, fast temperature rise, high reliability, high heat capacity and long service life advantages.

Flat HeaterFlat Heater

Applications of Flat Tubular Heating Elements:

1. Electric dust collector thermal insulation

2. Asphalt paver screed preheating

3. Insulation heating of dehydration tank door

4. Thermal insulation of limestone silo

5. Flat mold heating

6. Food machinery such as filling machine / roofing machine

7. Insulation heating of buried scraper conveyor


Application-Flat Heater

Hot Tags: flat tubular heating element, China, manufacturers, suppliers, factory, customized, electric, high quality

Packing & Delivery

Quality-Flat Heater
