Flat Tubular Cartridge Heater

Flat tubular cartridge Heaters are designed as an alternative form of round cartridge heater. It is designed mainly used on the mold heating, and liquid heating, and any applications need to increase the heating area with limiting heating space.
Chat Now

Product Details

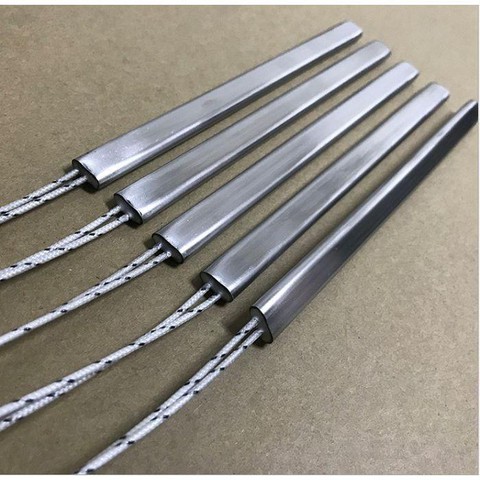

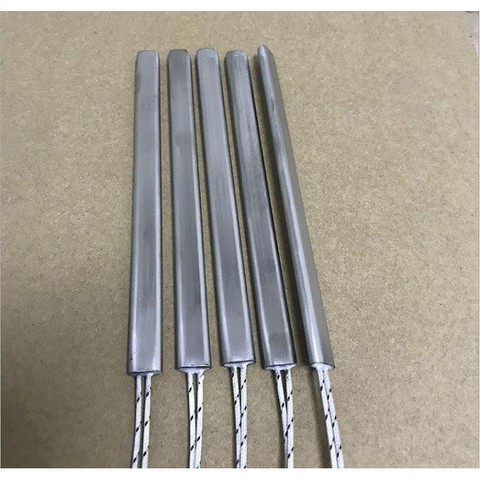

Flat Tubular Cartridge Heater




Flat tubular cartridge Heaters are designed as an alternative form of round cartridge heater. It is designed mainly used on the mold heating, and liquid heating, and any applications need to increase the heating area with limiting heating space. The flat tuburlar cartridge Heaters can be made based on customer’s specific requirements, can be designed to be different shape, and the size can also be OEM manufactured by Jaye industry. They are made swaged in lead, and pressed by under 50 tons to be Flat, smooth platen surface to increase the heating transfer efficiency and long life time. The Flat tubular Cartridge heater has a large contact area, rapid heating speed, high heat transfer efficiency, saving space, power, heating up fast, high reliability, high heat capacity, long service life advantages. The flat surface improve product quality performance while taking into account environmental protection and energy requirements of the times

image001(001)


Technical Parameter:

Output Power:

Up to 350 Watt / meter , 450 Watt / meter , 600 Watt / meter or Customized

Supply voltage:

Usually 1PH 230V or Customized

Cold zone 1:

Typical 140mm

Cold zone 2:

Typical 20mm

Physical Size:

Customized

Heating element cross section:

13*5.5mm,16.5*6.5mm Or customized

Connection head:

OD 27 mm Length 80 mm or customized

Heating element length:

Up to 6000mm

Cable length:

To be specified

Outer jacket:

Stainless steel AISI 304,316,321


Application field:



Order Guide:

Flat tubular heating elements are availabe bended as to specification, with brazed mounting bushes with connection boxes or other for mounting in any electrical heating aggregate:

1) Overall length

2) Volts/Watts

3) Lead option and length or terminal configuration

4) Optional accessories, finishing, internal construction,

5) Order Quantity


Flat tubular cartridge Heaters is new developed heating elements that Jaye industry are making, we have owned high reputation from the customers all over the world. Jaye Industry perseveres in the management conception of human's importance. insists in offering high quality products and perfect aftersale service continually for customers. "The pursuit of excellence and customer first" is our Business philosophy. We adheres to the business philosophy of “creating greater value for customers” and meets the potential needs of customers through service innovation.


Application-Flat Heater
