Electric Ceramic Stove Heating Plate

Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of electric ceramic stove heating plate in China, also supports custom service. Welcome to wholesale high quality electric ceramic stove heating plate at competitive price from our factory.

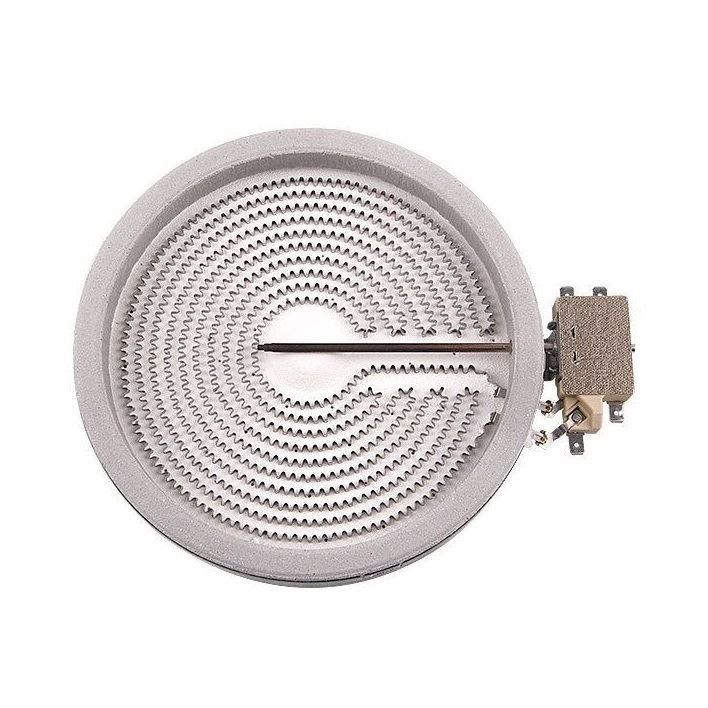

The electric ceramic stove heating plate includes a heat insulation layer, a bottom shell, a ceramic base, a terminal 1 and a terminal 2. Through the heat insulation layer, the bottom shell and the ceramic base, the lower part of the terminal 1 and the terminal 2 is provided with a terminal connected with an external power source, and the terminal penetrates from the bottom of the ceramic base.

Specification reference:

1. Power: customized

2. Voltage: customized

3.Copper wire material: QZY-2/paint temperature 180°C, insulation class: H class

4. Aluminum wire material: paint temperature 180°C, insulation class: Class B

5.Magnetic strip: Mn-Zn ferrite

6.Terminal: brass

7. Casing: glass fiber casing 1200KV-2000KV, 60S self-extinguishing, withstand voltage test 4.5-7.0KV.

8. Heat shrinkable tube: product wall thickness -0.20+0.05, insulation withstand voltage 600V, 60S without breakdown.

Performance:

1. Reburning line changes

2. Vibration resistance

3. Slag resistance

4. Acid resistance

5. Anti-alkaline

6. Hydration resistance

7. CO erosion resistance

8. Antioxidant

Jaye a high-tech enterprise specializing in the design, research and development, production, sales and service of various heating elements and thermal controllers, with strong and reliable R&D team to give the best solutions for you.
