Induction Stove Hot Plate

Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of induction stove hot plate in China, also supports custom service. Welcome to wholesale high quality induction stove hot plate at competitive price from our factory.

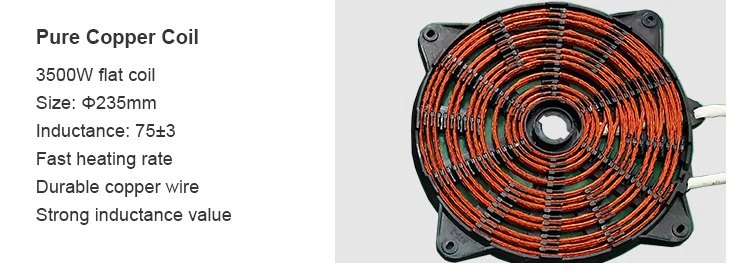

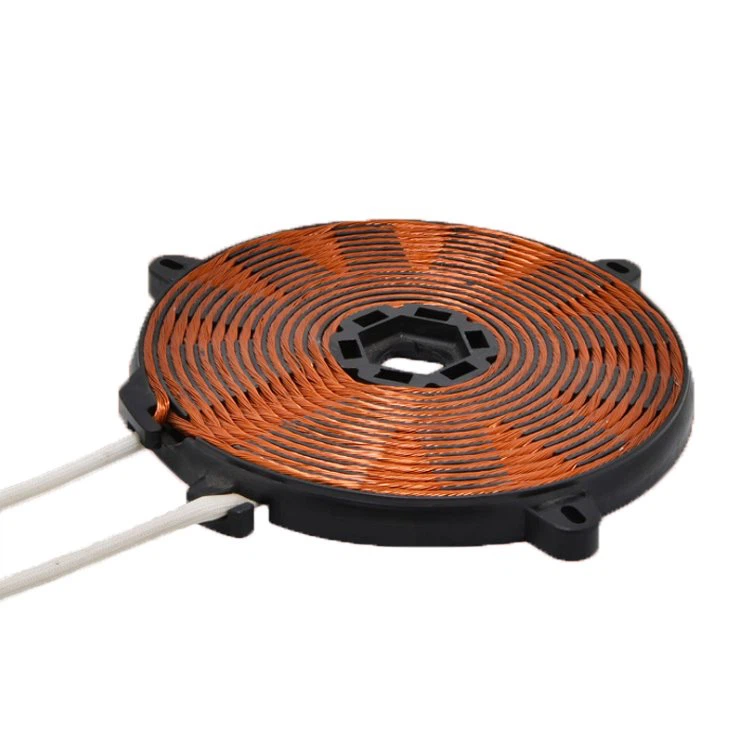

Jaye's Induction Stove Hot Plate uses high-quality copper wire as the raw material for making the coil, because copper wire has good electrical conductivity and good thermal conductivity. Our Induction Stove Hot Plate structure includes coils, brackets, U-shaped magnetic strips, etc. The magnetic field generated by this induction furnace hot plate is more concentrated, reducing magnetic field leakage and greatly improving heating energy efficiency.

Principle of Induction Stove Hot Plate.

　　The induction stove hot plate is also called a heating coil, because the shape of the induction furnace hot plate is a disc, but it is not a heat source, but an inductor in a high-frequency resonant circuit, so it is also called a high-frequency resonant coil. The diameter of the induction cooker hot plate (excluding the edge of the fixed rubber plate) is between 16 and 22cm, and the greater the power of the induction cooker, the larger the diameter of the heating coil.

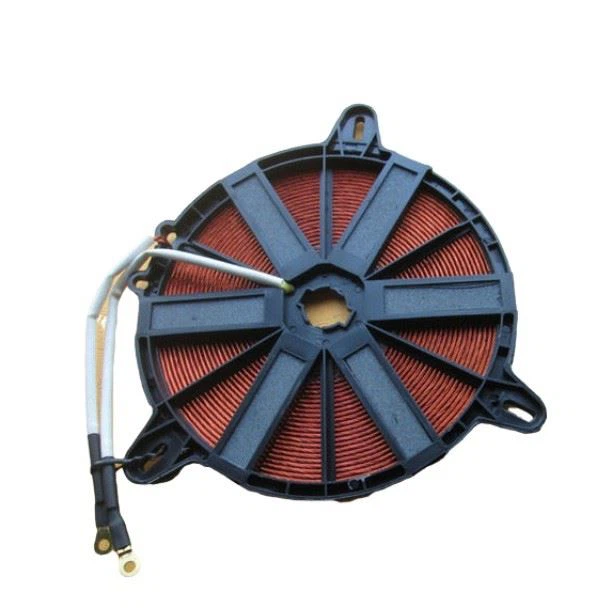

　　The sensor bracket is mounted in the center of the induction stove hot plate for mounting the thermistor. Multiple magnetic strips are mounted on the back of the heating coil. The purpose of installing the magnetic stripe array is to gather and absorb the magnetic lines of force and reduce the leakage of the magnetic lines of force. On the one hand, it improves its own efficiency; on the other hand, it reduces the interference of the magnetic lines of force on the induction circuit.

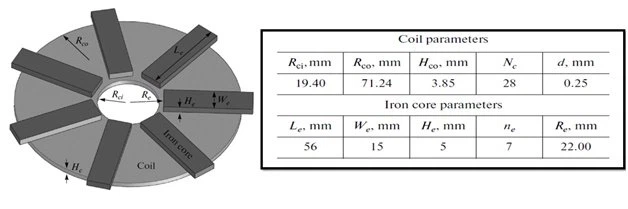

Specifications of Induction Stove Hot Plate.
