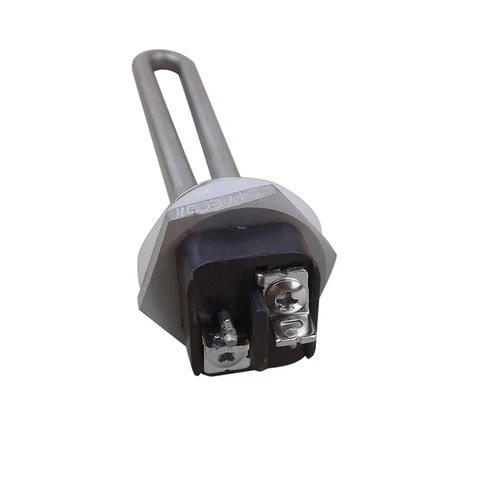

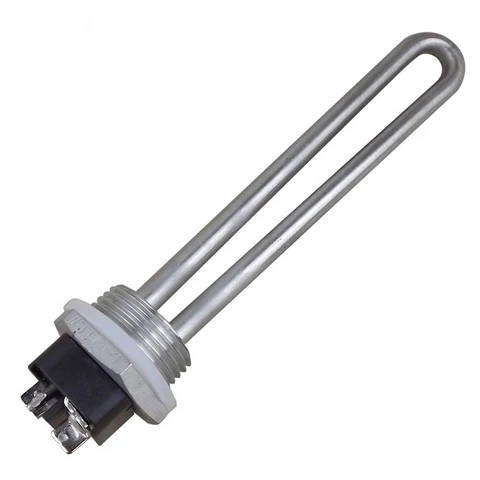

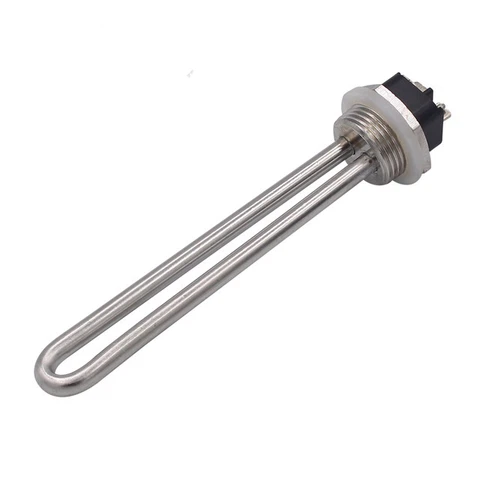

Water Tank Heating Element


Water Tank Heating Element is a type of immersion Heater element heat in water tank. There are many type of water tank heating element, like stainless steel water heating elements, Copper water heating elements, screw plug water heating elements, etc. Electric water heating elements can be different in size, but the most common is 12" (300 mm). The most common shape is U shape, screwed into a designated female threaded connection in the tank. And the length of the pipe can be designed longer or shorter based on the different application requirements. Usually the shorter heater have a wider tube diameter while longer have a smaller diameter, both having the same heating surface.Water tank heating elements are installed by bolting to a matching flange welded to the tank wall or nozzle. A wide selection of flange sizes, kilowatt ratings,voltages, terminal housings and sheath materials makes these heaters ideal for all types of heating applications.

The best heating elements are usually made of nickel and stainless steel and are known as low watt-density elements. They have a lower heat load on surface than the regular elements, and are usually folded back. This allows easy installation, longer life due to the lime build-up resistance and dry-firing protection.


Specifications:


Material:

Stainless steel 304, 316, 321; Incoloy 800, 400; copper

Diameter:

6mm-25mm

Length:

Customized as per request

Voltage:

12v-600v

Wattage:

50w-20000w

Flange/thread:

BSP, NPS (1", 1 1/4", 1 1/2", 2", 2 1/4“, 2 1/2") or customized

Power tolerance:

+5%, -10%

Size tolerance

±2mm



Order Guide:

1) Drawing is best or special requirement
2) Wattage and voltage
3) Diameter and the length of heating element
4) Material of the heating pipe
5) Order Quantity
