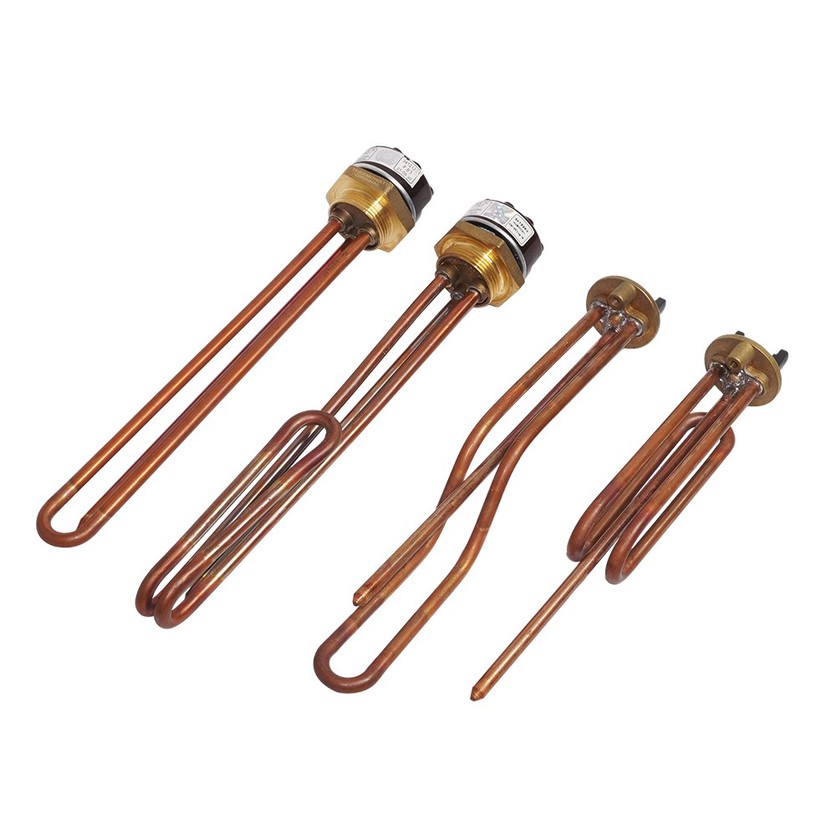

Water Copper Heating Elements
Product Details
Jaye Heater Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of water copper heating elements in China, also supports custom service. Welcome to wholesale high quality water copper heating elements at competitive price from our factory.
Water copper heating elemetns are high suface load heating tube and working in the liquid. Jaye use advance manufacturing technology to make sure the safety and lone service life.The water copper heating elements are mainly work in to your different requiremenets of corrosion resistance. It can be made of stainless stell, cooper, ect. Bends are made to customer requirements. For water heater manufacturers, selecting the right heating element is a critical decision that impacts product performance, reliability, cost, and market suitability. Copper-sheathed heating elements remain a premier choice for many applications, offering a compelling balance of efficiency and cost-effectiveness.
Specification of Water Copper Heating Elements
| Tube Material | Copper |
| Power | 1500W, 2000W, 2500W, 3000W, 4500W, 5500W |
| Voltage | 240V |
| Tube diemeter | Φ6.5mm,Φ8mm,Φ8.5mm |
| Insulation | High-Purity Compressed Magnesium Oxide (MgO) |
| Terminal Type | Brass hex head (standard), Flange Mount |
| Thread Types | NPT (e.g., 1" NPT) or BSP (e.g., BSP 1¼") |
| Application | water heater |
①Copper flange --Special design, high quality
②Silver soldering --Precision welding, prevent water leakage
③Copper material tube --Better prevent scale, heat conduction fast
④High temperature --Resistant insulating magnesium oxide
⑤High strength alloy
⑥0.6mm wall thickness copper
Feature of Water Copper Heating Elements
1-Superior Thermal Conductivity: Copper's high heat transfer ensures fast recovery times and high energy efficiency.
2-Hermetic Seal: The brazed copper-to-brass seal provides maximum reliability and leak-proof performance.
3-Proven & Cost-Effective: Offers the best value with a mature supply chain and lower BOM cost, ideal for volume manufacturing.
4-Corrosion Resistant: Excellent resistance to corrosion in standard water conditions.
More detailed pictures
How to inquire or order?
The water copper heating elements are customized as per your need. Please tell us the following specifications, so that we can quote:
1. Dimension (tube diameter, length, as detailed as possible)
2. Flange size
3. With thermostat or not
4. Order quantity
Better to offer us drawings and pictures if you have.
