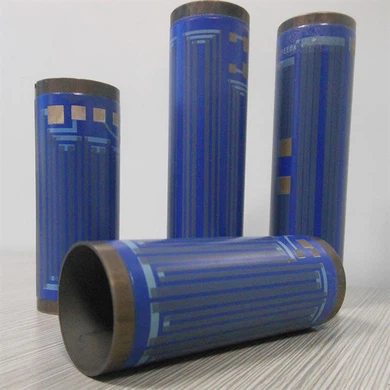

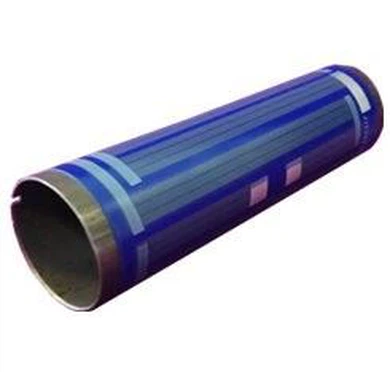

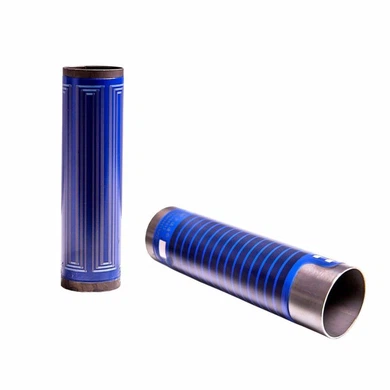

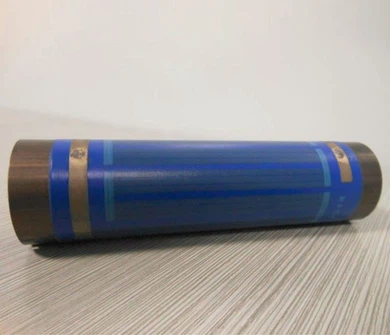

Thick Film Heating Elements For Water Dispenser

Thick film heating elements are used more and more popular in the water dispenser because of its adavantage of high heating speed, high heating transfer efficiency, compact design, reliable and long life service time. And the thick film technology are recognized by more and more house hold...
Chat Now

Product Details

Thick film heating elements are used more and more popular in the water dispenser because of its adavantage of high heating speed, high heating transfer efficiency, compact design, reliable and long life service time. And the thick film technology are recognized by more and more house hold appliance, especially on the water dispenser.

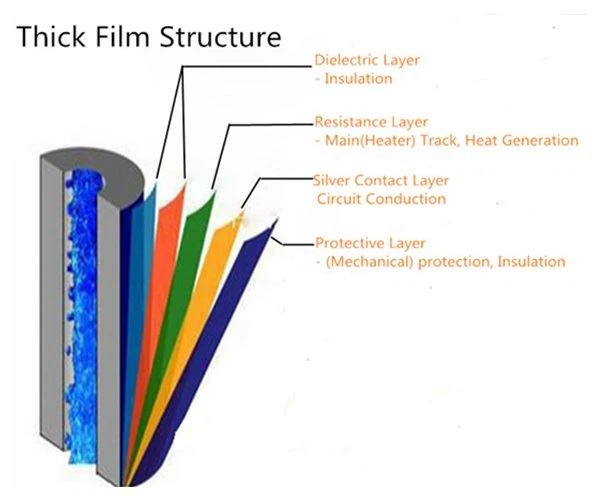

 3kw-Water-Flow-Heating-Thick-FILM-Stainless (3)

The thick film heating element for water dispenser is mainly composed of a stainless steel pipe, the material usually is SUS304 or SUS430 or any other customized. a internal insulating medium layer, resistance layer, and external insulating medium layers from inside to out side. Jaye mostly made more than 5 or more layers in order to get the best quality performace effect. And the water flows though the stainless steel pipe, get a 360 degree chanal fast heating, and at the meanwhile because the water can take away the temperature immediatly, and the heat concersion rate can be more than 97%, so the heating tube will not easy to be burned. This gives the heating elements a feature of safe, stable durable and long life time.

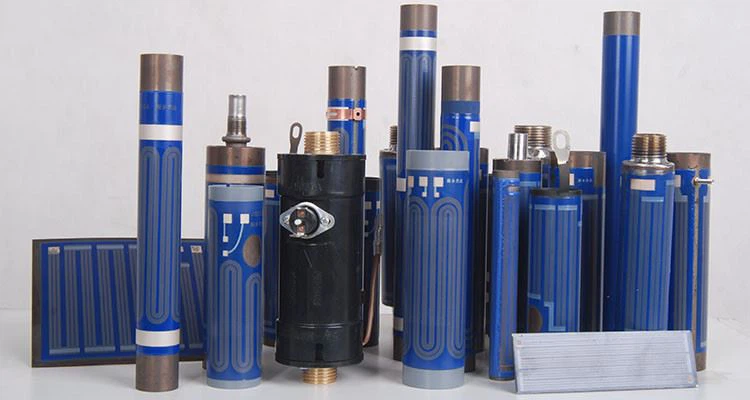

1

Features of the thck film heating elements for water dispenser:

For temperature applications up to 650 °C

Can be machined into complex shapes and forms

Power densities greater than 31 W/cm2 (200 W/in2)

Low mass: fast temperature ramp up and cool down

Low leakage current at low temperatures

No out gassing with inorganic systems

Low coefficient of thermal expansion

Solid insulation properties due to glass encapsulation



Jaye can offer engineer service and soncultation for the thick film heating elements, for the details, just contact JAYE!


Application-thick film heater

Hot Tags: thick film heating elements for water dispenser, China, manufacturers, suppliers, factory, customized, electric, high quality

Packing & Delivery

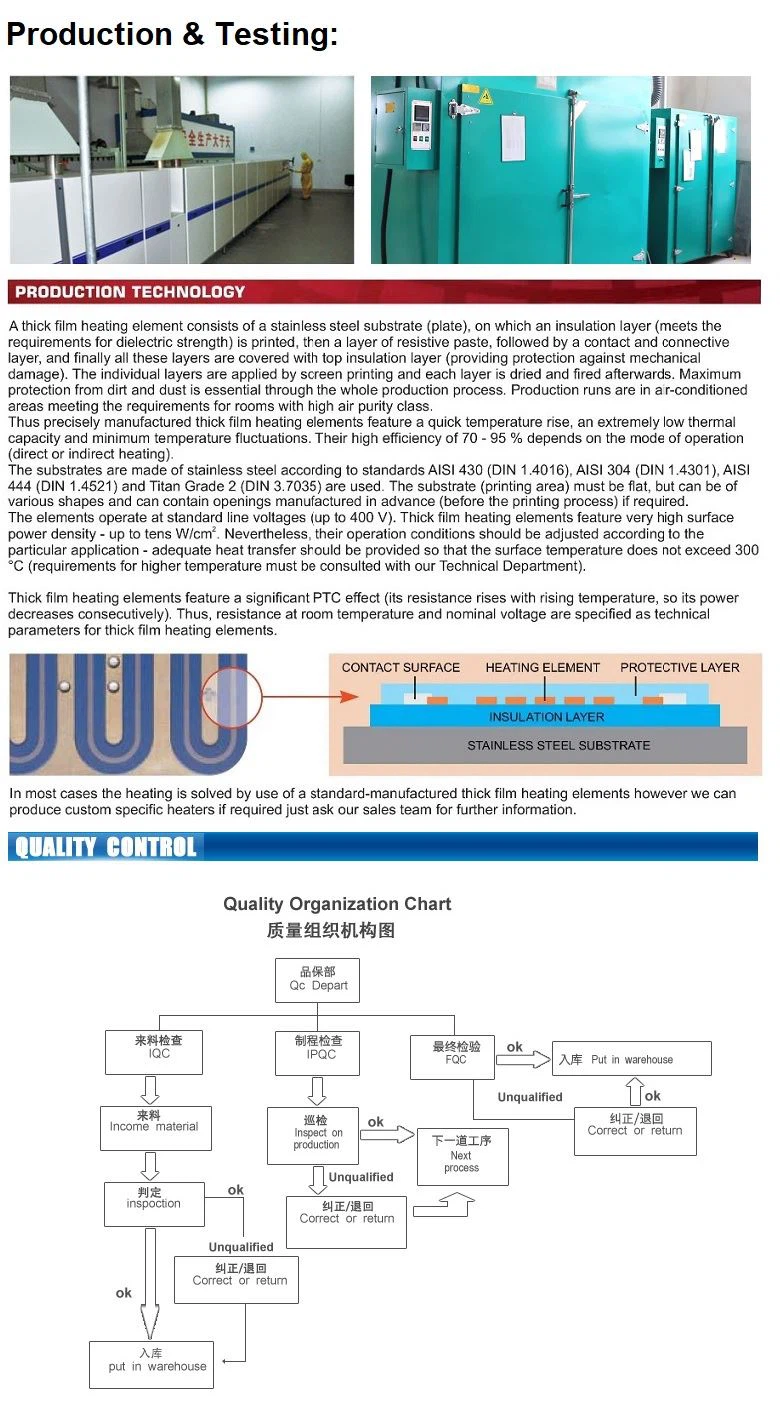

Quality-Thick Film Heater
